Installation Procedure

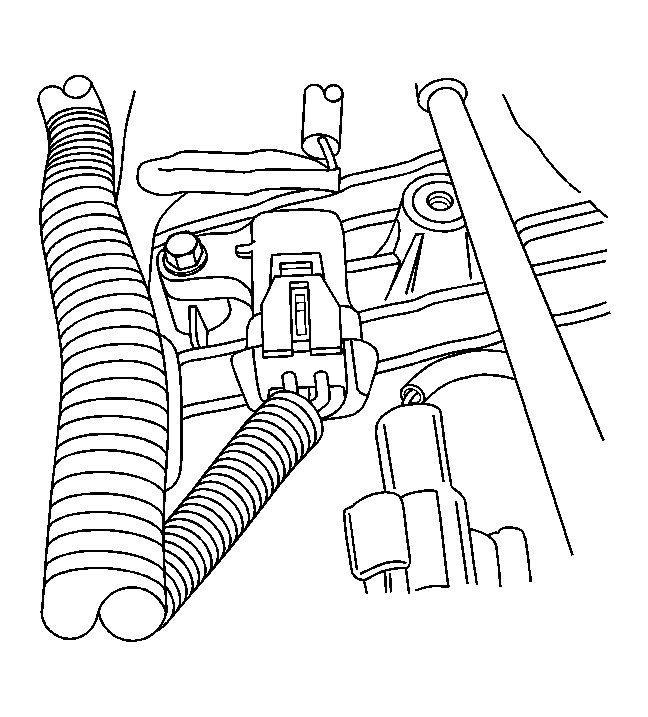

    Fig 1: Identifying MAF Sensor And Connector
    GM1375312Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the MAP sensor.

    Tighten:  Tighten the manifold absolute pressure (MAP) sensor to 8 N.m (71 lb in)  .

  2. Connect the MAP sensor connector.
  3. Connect the negative battery cable.
