Removal Procedure

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
    Fig 1: View Of VIS Vacuum Tank And Retaining Nuts
    GM1375163Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable.
  2. Remove the variable intake system (VIS) vacuum tank. Refer to Intake Manifold Tuning (IMT) Valve Vacuum Reservoir Replacement .
    3. Fig 2: View Of Support Bracket Wiring Harness
    GM1375330Courtesy of GENERAL MOTORS CORP.
  3. Remove the wiring harness from the support bracket.

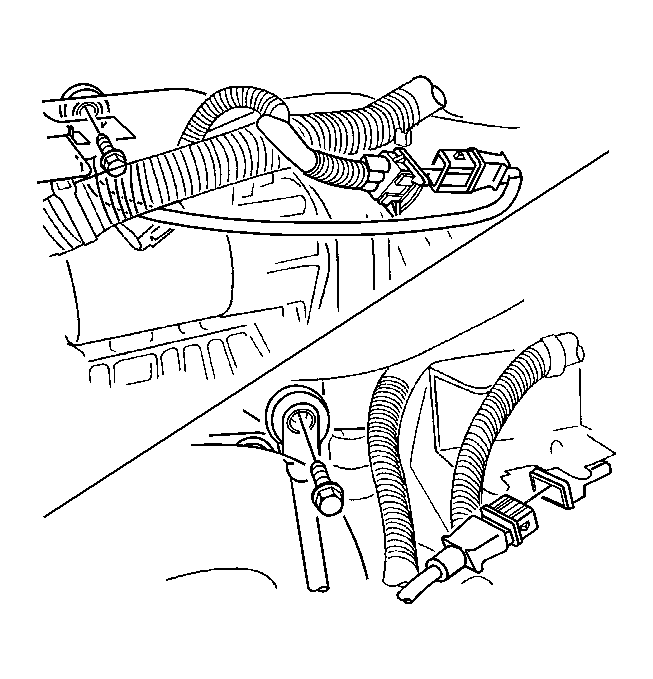

    4. Fig 3: View Of Knock Sensor And Wiring Harness Connector
    GM1375334Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the knock sensor wiring harness connector.
  5. Remove the knock sensor.
