Installation Procedure

NOTE: Refer to Fastener Notice in Cautions and Notices.

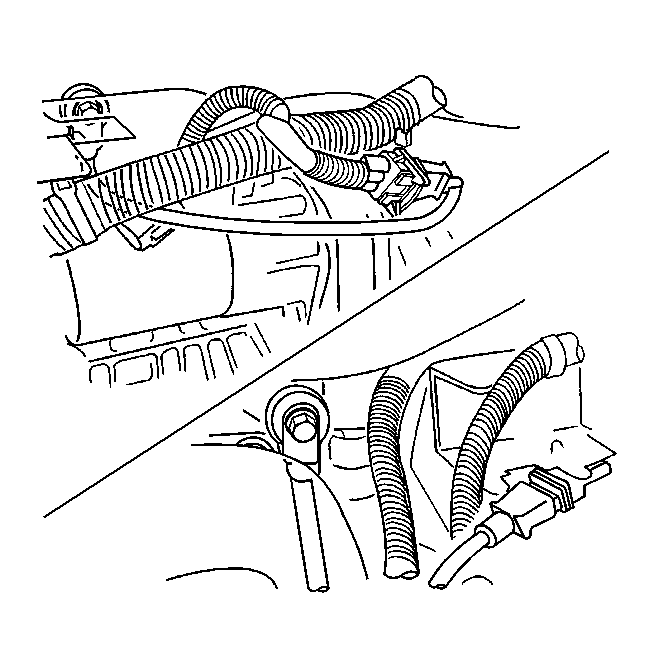

    Fig 1: View Of Knock Sensor Wiring Harness
    GM1375336Courtesy of GENERAL MOTORS CORP.
  1. Install the knock sensor.
  2. Tighten:  Tighten the knock sensor retaining bolt to 19 N.m (14 lb ft)  .
  3. Connect the knock sensor wiring harness connector.
    4. Fig 2: View Of Support Bracket Wiring Harness
    GM1375330Courtesy of GENERAL MOTORS CORP.
  4. Install the wiring harness to the support bracket.
    5. Fig 3: Identifying VIS Vacuum Tank And Retaining Bolts
    GM1375175Courtesy of GENERAL MOTORS CORP.
  5. Install the VIS vacuum tank. Refer to Intake Manifold Tuning (IMT) Valve Vacuum Reservoir Replacement .

    Tighten:  Tighten the VIS vacuum tank retaining bolts to 8 N.m (71 lb in)  .

  6. Connect the negative battery cable.
