Removal Procedure

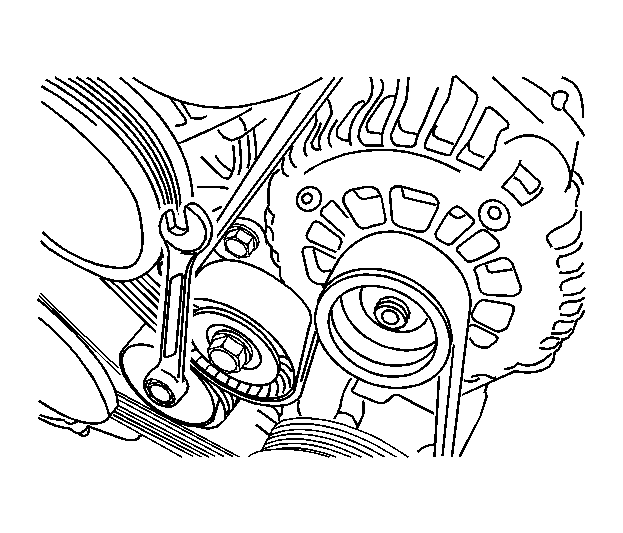

    Fig 1: View Of Serpentine Accessory Drive Belt And Automatic Tensioner Roller Bolt
    GM1375417Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the serpentine accessory drive belt by lowering the vehicle and turning the automatic tensioner roller bolt clockwise to relieve tension on the belt. Refer to Power Steering Pump Drive Belt Replacement (2.5L) in Power Steering System.
    3. Fig 2: View Of Generator Harness Connector And Lead To Battery
    GM1375489Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the harness connector form the back of the generator, and the generator lead to the battery.
    4. Fig 3: View Of Generator And Bolts
    GM1375490Courtesy of GENERAL MOTORS CORP.
  4. Carefully remove the generator with the bolts.
