Removal Procedure

    Fig 1: View Of Generator Lead Nut And Harness Connector
    GM1255506Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the nut from the generator lead to the battery and disconnect the lead.
  3. Disconnect the harness connector from the back of the generator.
    4. Fig 2: Identifying Serpentine Accessory Drive Belt
    GM1255505Courtesy of GENERAL MOTORS CORP.
  4. Remove the serpentine accessory drive belt. Refer to Power Steering Pump Drive Belt Replacement (2.0L) in Power Steering System.
    5. Fig 3: Identifying Generator Mounting Bolts
    GM1255502Courtesy of GENERAL MOTORS CORP.
  5. Remove the generator-to-intake manifold and cylinder head support bracket bolts, and the generator-to-intake manifold strap bracket bolt.
  6. Raise the vehicle and remove the bolts that hold the generator lower bracket to the engine.

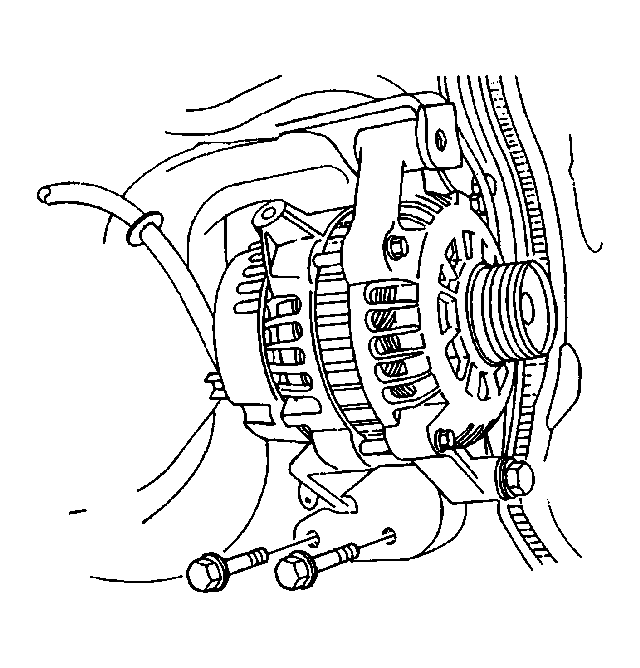

    7. Fig 4: Identifying Generator Lower Support Bracket And Bolts
    GM1255512Courtesy of GENERAL MOTORS CORP.
  7. Carefully remove the generator with the lower bracket attached.
  8. Remove the generator lower support bracket bolt and the nut.
