Door Lock/Indicator Schematics
Door Lock/Indicator Schematics

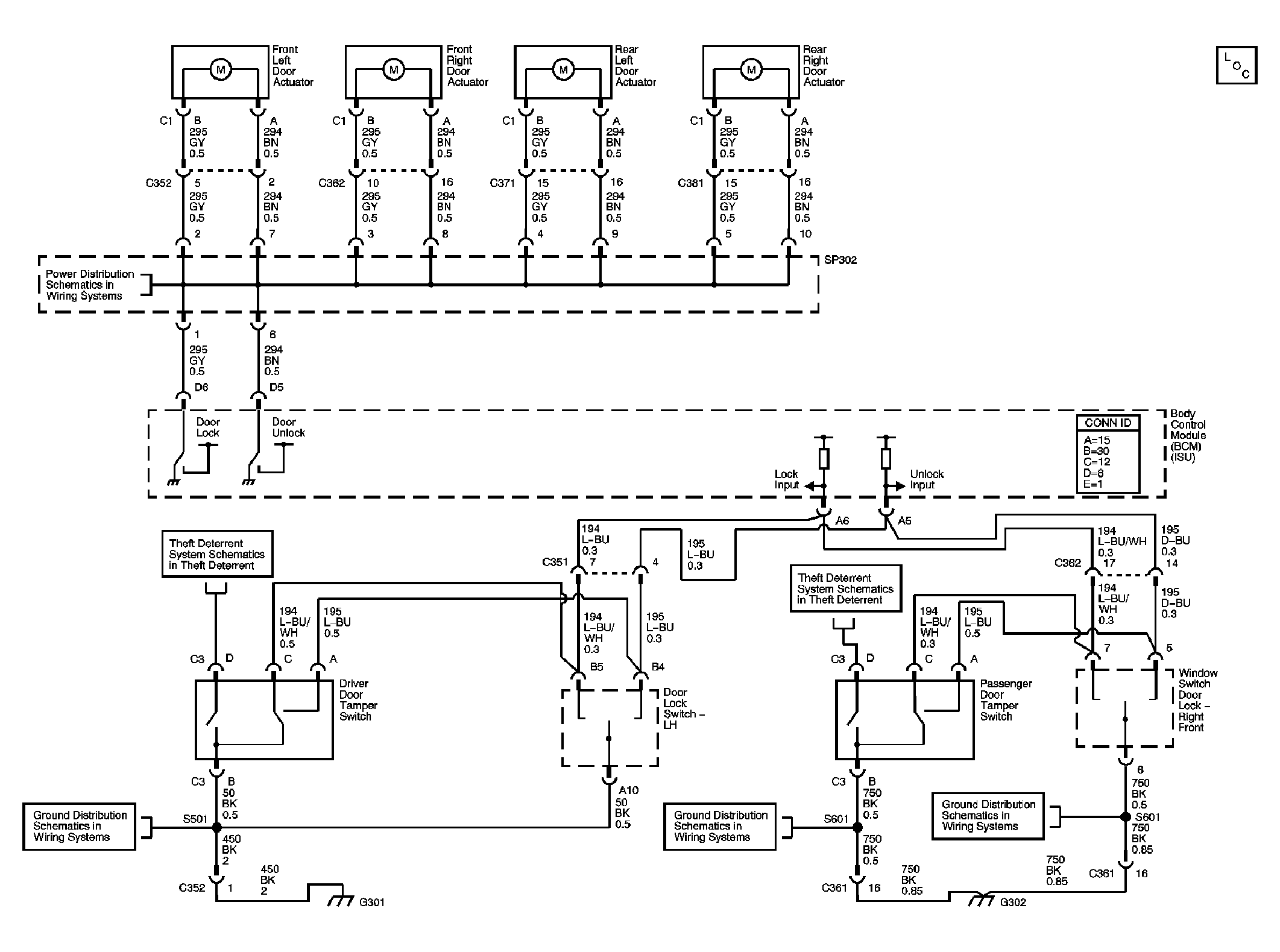

Fig 1: Power Door Locks Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
