Installation Procedure

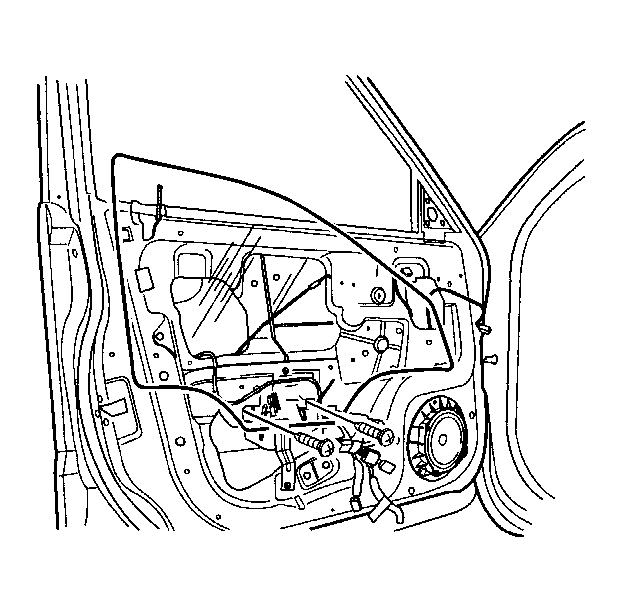

    Fig 1: View Of Widow Glass, Regulator And Screws
    GM1256772Courtesy of GENERAL MOTORS CORP.
  1. Install the glass in the door and position the glass within the window regulator.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the glass to the window regulator with the screws.

    Tighten:  Tighten the glass screws to 7 N.m (62 lb in)  .

  3. Install the front door body side molding. Refer to Molding Replacement - Front Door Body Side in Exterior Trim.
  4. Install the door seal trim. Refer to Sealing Strip Replacement - Door Bottom .
