Defogger Schematics

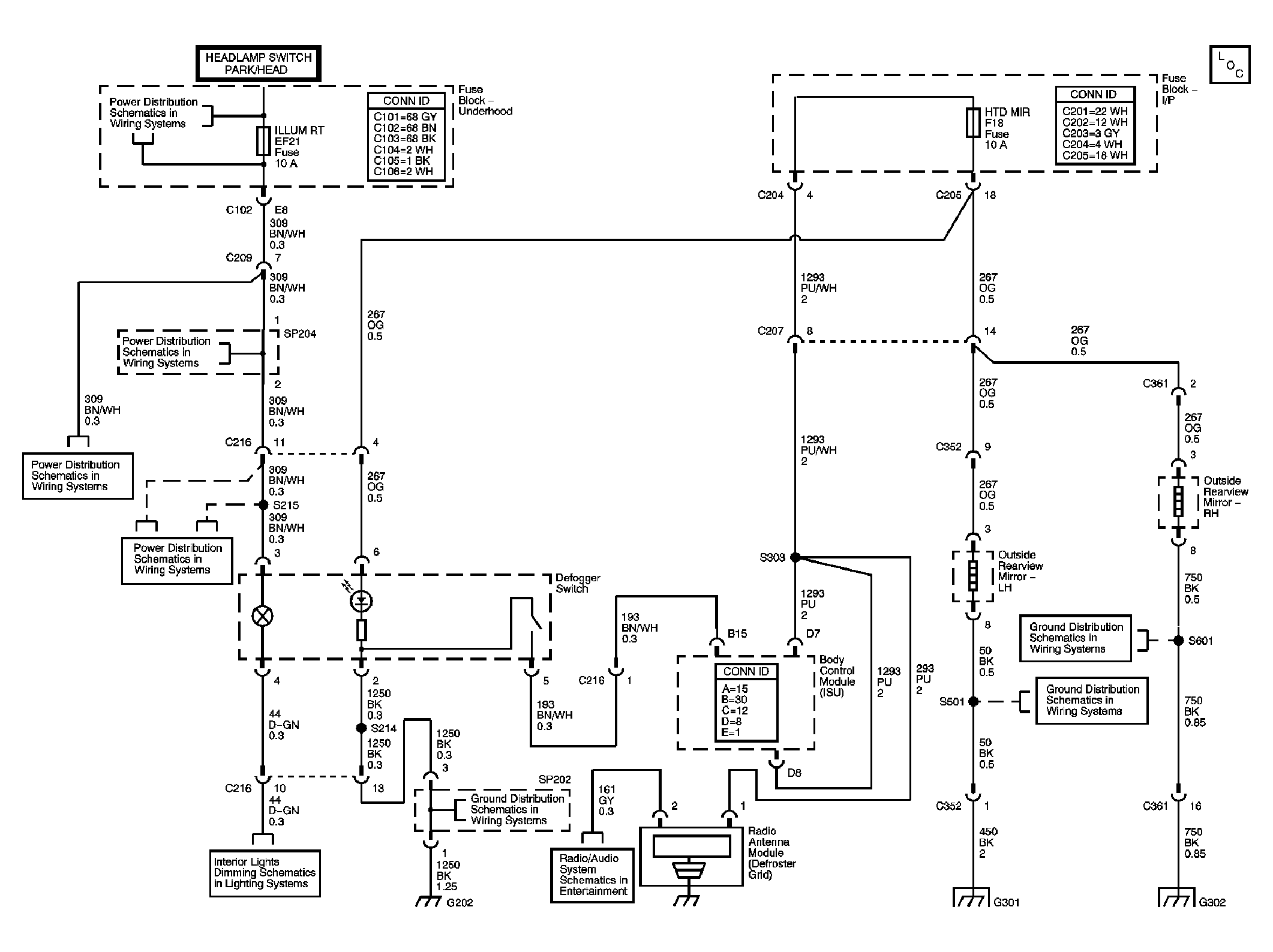

Fig 1: Defogger Schematic
Courtesy of GENERAL MOTORS CORP.

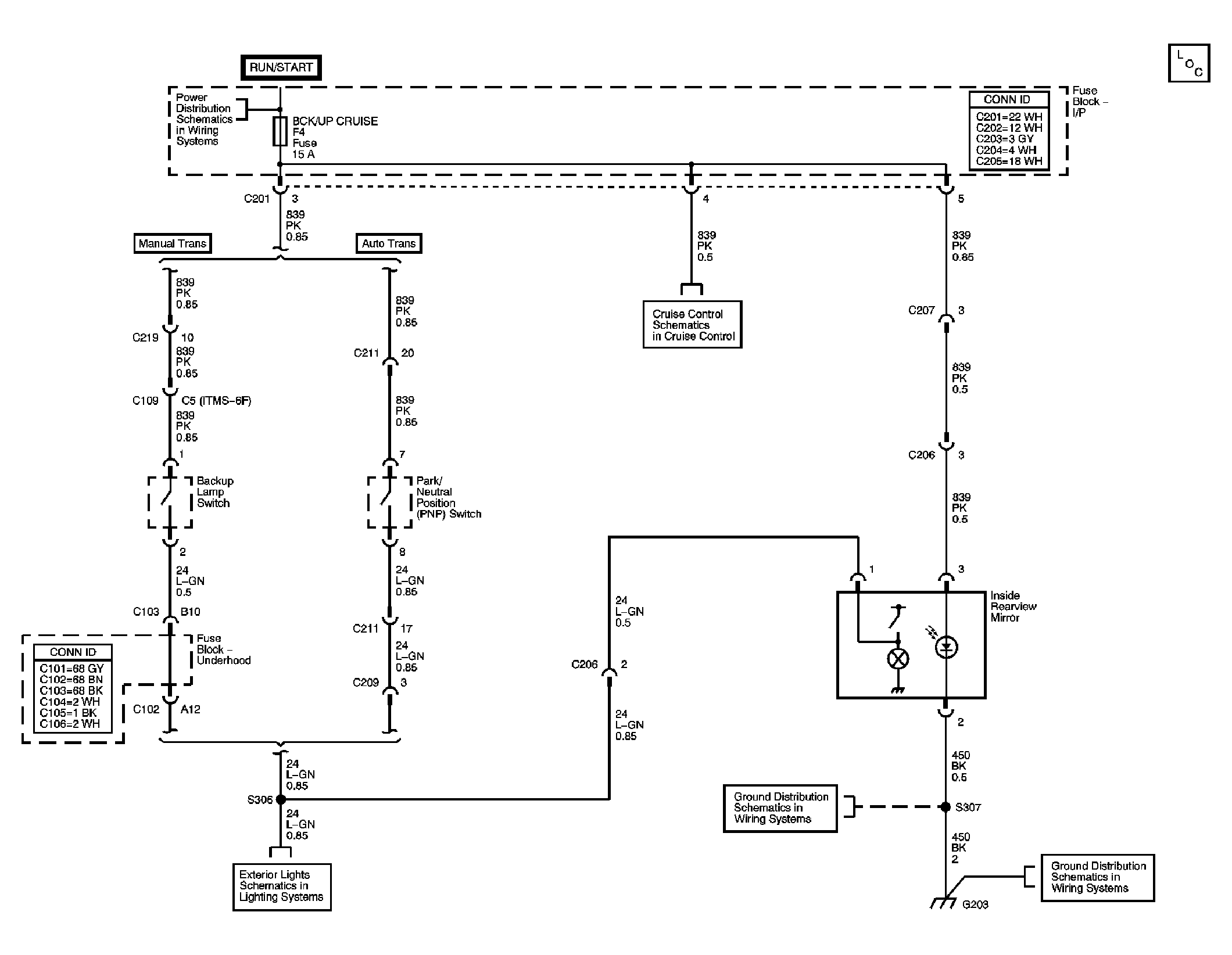

Fig 2: Inside Rearview Mirror Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
