Installation Procedure

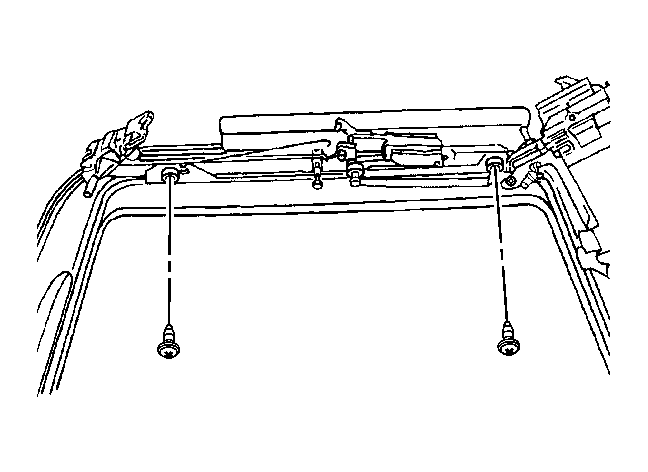

    Fig 1: View Of Frame And Screws
    GM1256855Courtesy of GENERAL MOTORS CORP.
  1. Install the glass to the frame with the screws

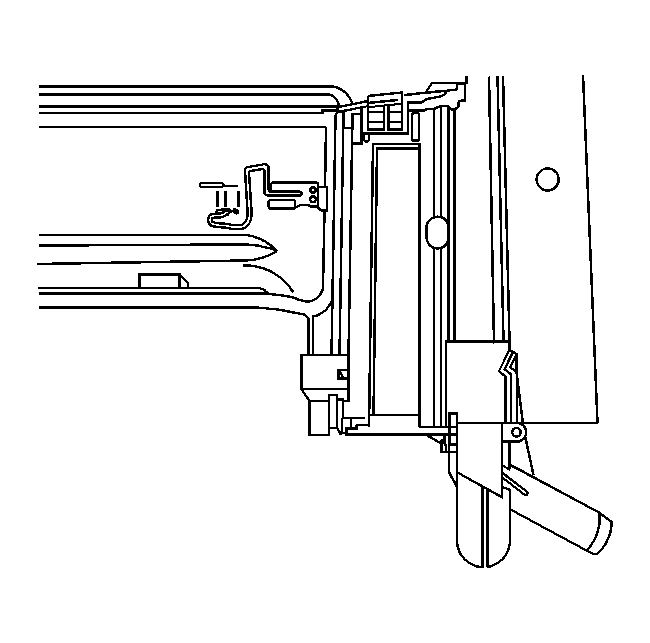

    2. Fig 2: View Of Rubber End Caps
    GM1256853Courtesy of GENERAL MOTORS CORP.
  2. Install the plastic trim.
  3. Install the glass and the frame to the housing.
  4. Install the shade.
  5. Install the glass stops.
  6. Install the shade stops.
  7. Install the drain nozzles.
  8. Install the rubber end caps.

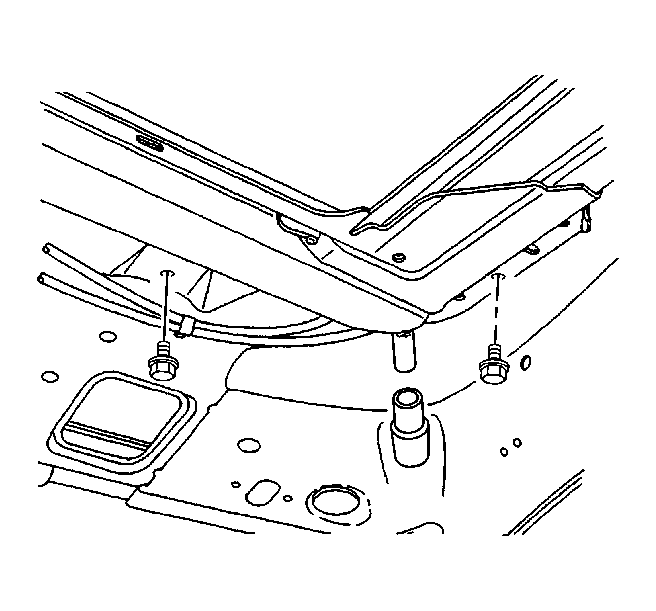

    9. Fig 3: View Of Sunroof Housing And Bolts
    GM1256852Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  9. Install the housing to the roof of the vehicle with the bolts.

    Tighten:  Tighten the sunroof housing bolts to 10 N.m (89 lb in)  .

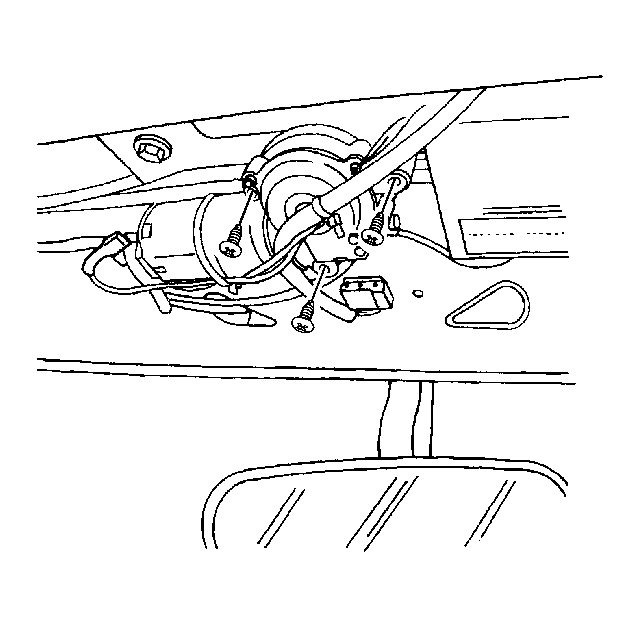

    10. Fig 4: View Of Sunroof Motor And Screws
    GM1256851Courtesy of GENERAL MOTORS CORP.
  10. Install the motor control module
  11. Install the motor with the screws.

    Tighten:  Tighten the sunroof motor screws to 3 N.m (27 lb in)  .

  12. Connect the electrical connectors.

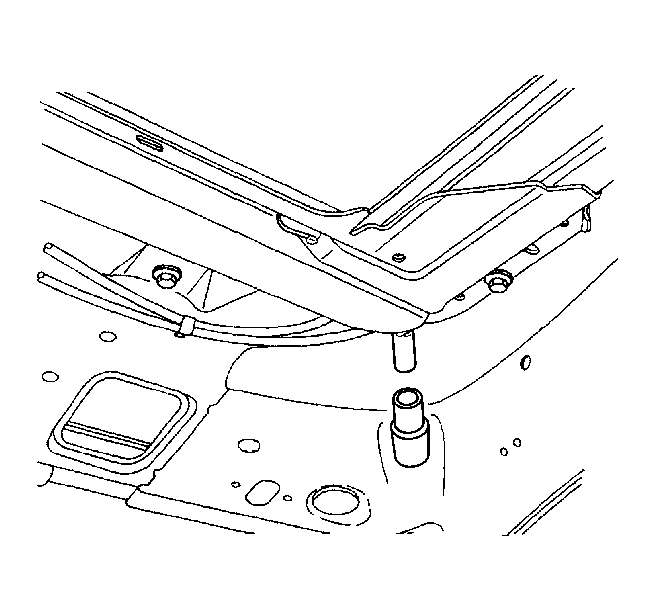

    13. Fig 5: View Of Headliner And Drain Nozzle
    GM1256850Courtesy of GENERAL MOTORS CORP.
  13. Install the drain hoses
  14. Install the headliner. Refer to Headliner Replacement .
  15. Connect the negative battery cable.
  16. Calibrate the power sunroof, if necessary. Refer to Power Sunroof Calibration Procedure .
