Power Roof Systems Connector End Views

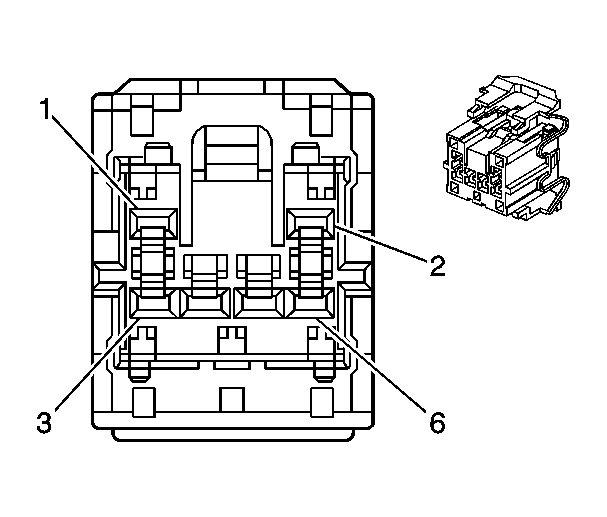

Sunroof Switch/Reading Lamp

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AMP 368174-1 6-Way F .090 MLC 6P PLUG HSG (WH)
Pin	Wire Color	Circuit Number	Function
1	OG	640	Battery Positive Voltage
2	BK	450	Ground
3	-	-	Not Used
4	YE	133	Sunroof Limit Switch Low Reference
5	D-BU	128	Sunroof Switch Low Reference
6	YE	43	Accessory Voltage

Sunroof Module

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AMP 368502 6-Way F 070 Multi Lock Connector (WH)
Pin	Wire Color	Circuit Number	Function
1	OG	840	Battery Positive Voltage
2	BK	450	Ground
3	D-GN/WH	817	Vehicle Speed Signal
4	L-GN/BK	80	Key In Ignition Switch Signal
5	YE	133	Sunroof Limit Switch Low Reference
6	D-BU	128	Sunroof Switch Low Reference
