Power Roof Systems Component Views
Power Roof Systems Component Views

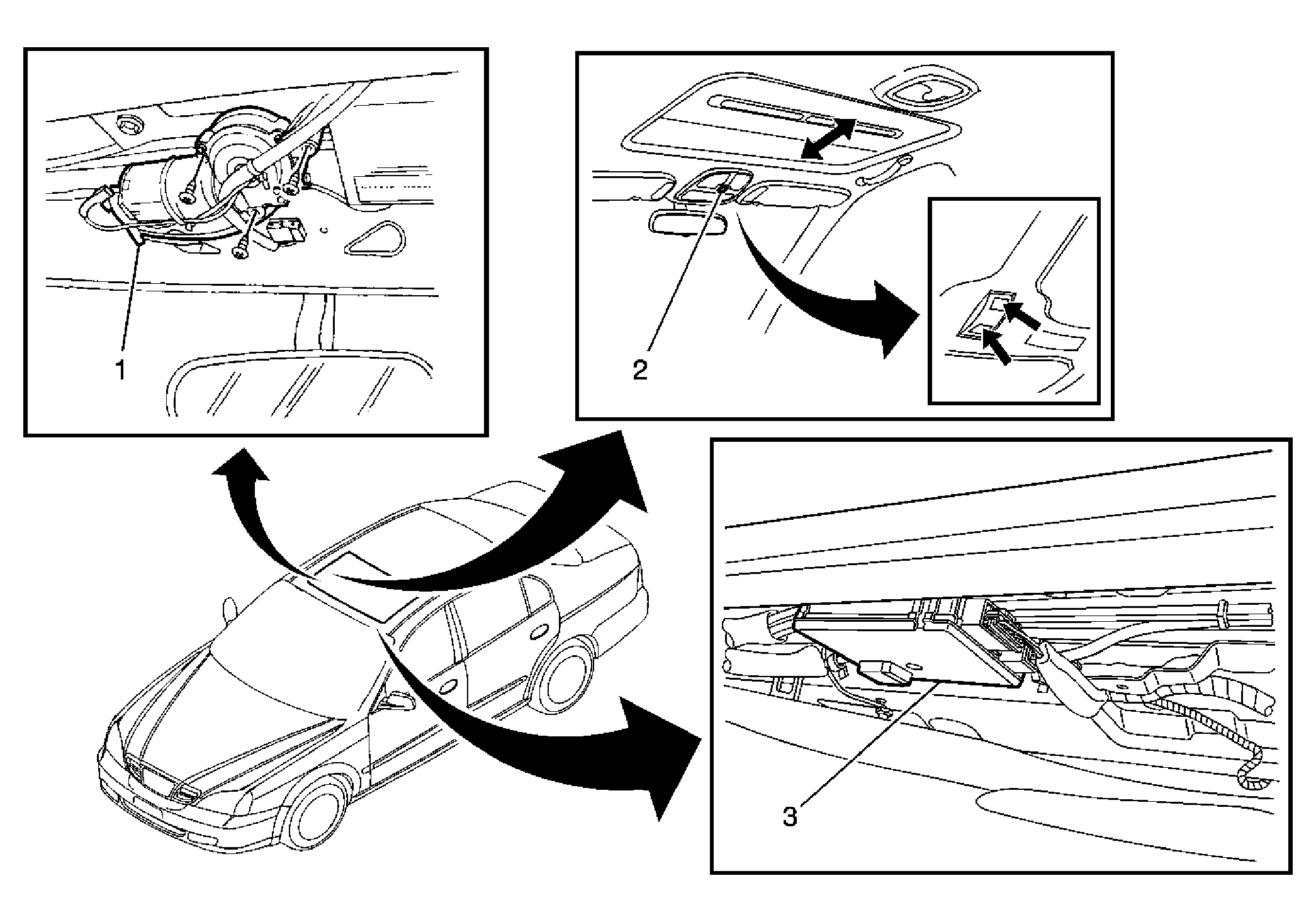

Fig 1: View Of Sunroof Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Sunroof Motor
2
Sunroof Switch/Reading Lamp
3
Sunroof Module
