Cooling System Component Views

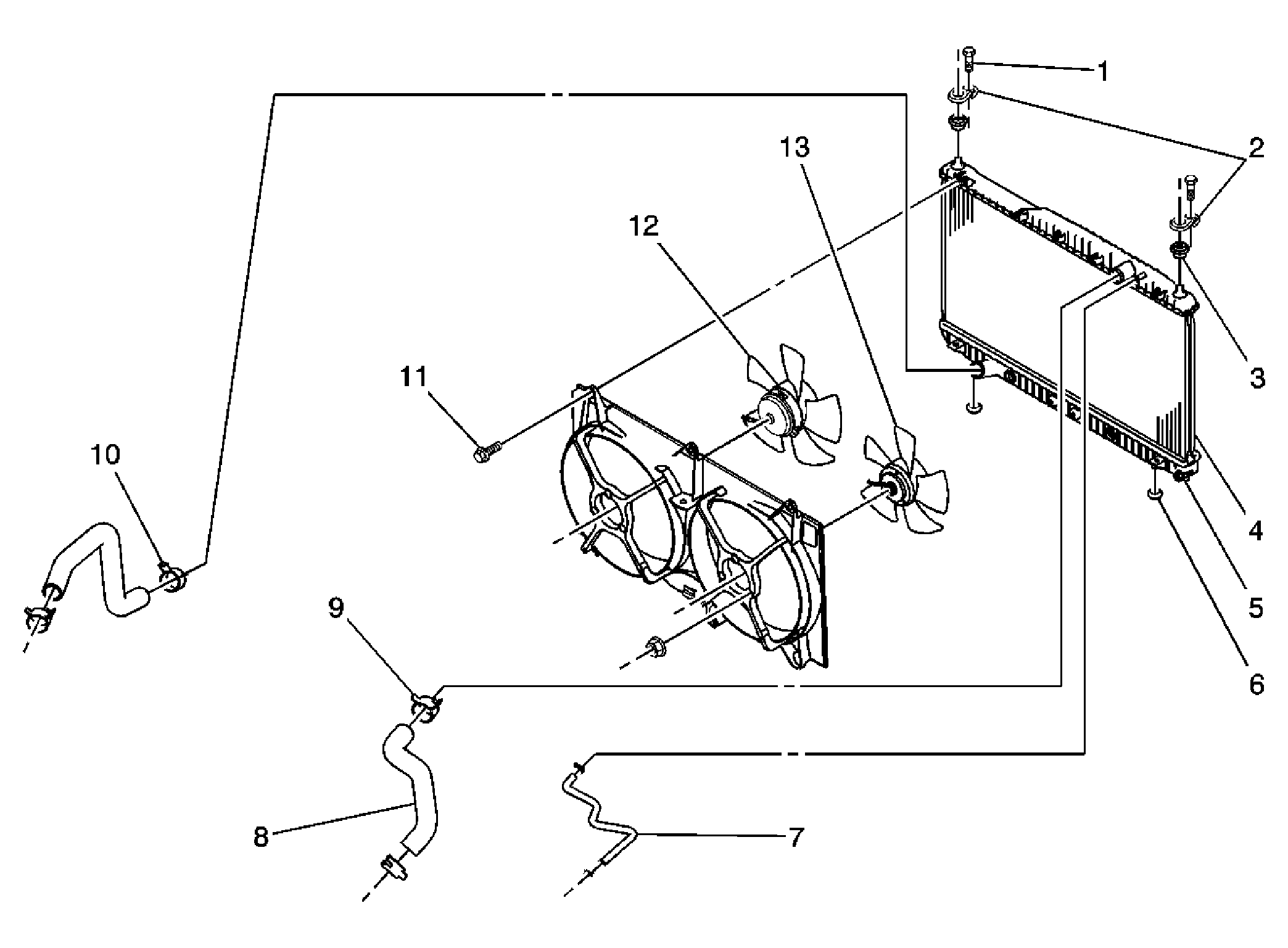

| Callout | Component Name |
|---|---|
| 1 | Radiator Retaining Bolts |
| 2 | Radiator Bracket |
| 3 | Upper Radiator Bumper |
| 4 | Radiator |
| 5 | Drain Plug |
| 6 | Radiator Bumper |
| 7 | Radiator Surge Tank Hose |
| 8 | Upper Radiator Hose |
| 9 | Spring Clamp |
| 10 | Spring Clamp |
| 11 | Fan Assembly Mounting Bolts |
| 12 | Cooling Fan - Main |
| 12 | Cooling Fan - Auxiliary |

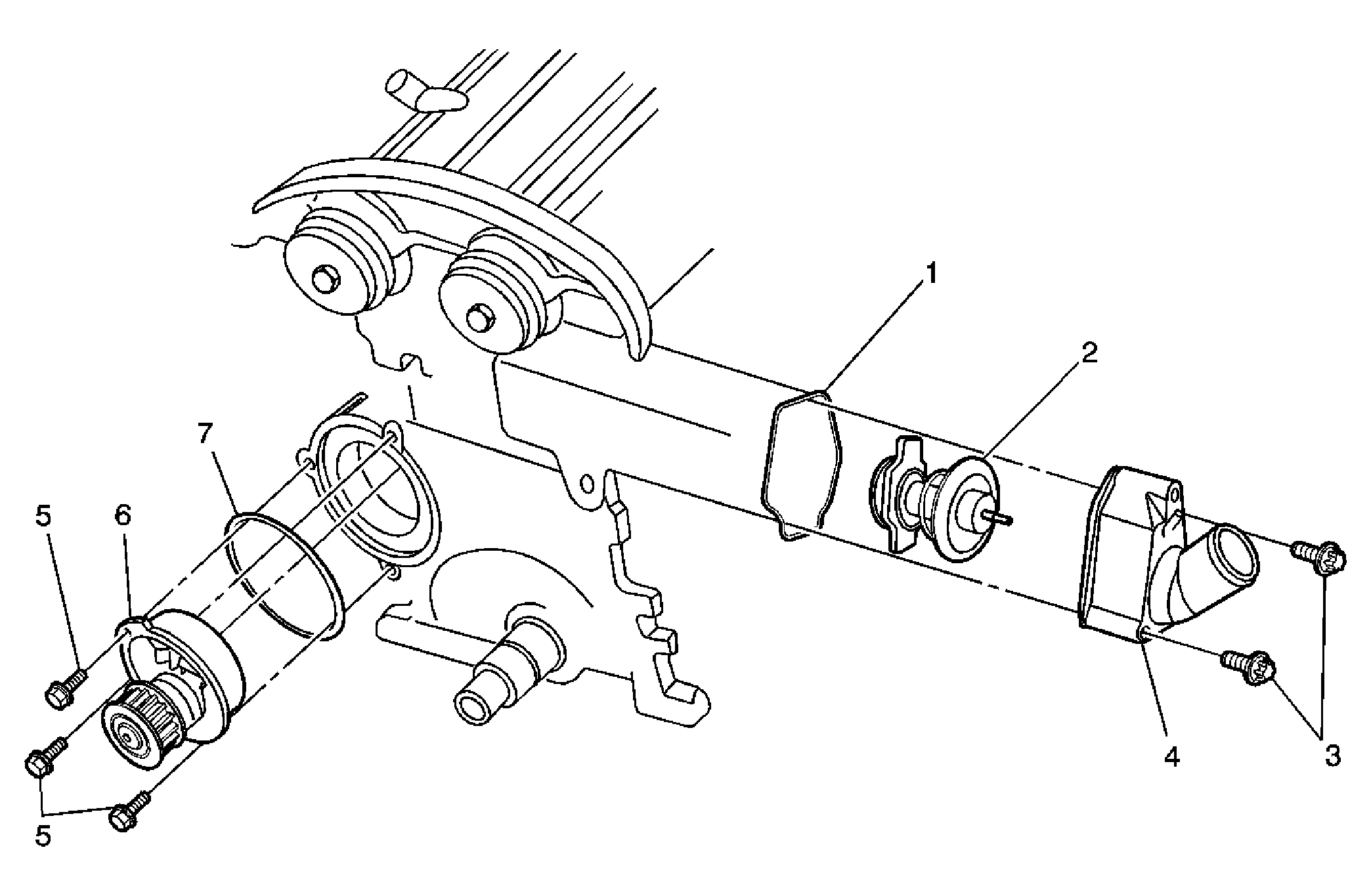

| Callout | Component Name |
|---|---|
| 1 | O-Ring Seal |
| 2 | Thermostat |
| 3 | Thermostat Housing Mounting Bolt |
| 4 | Thermostat Housing |
| 5 | Coolant Pump Mounting Bolt |
| 6 | Coolant Pump |
| 7 | Ring Seal |

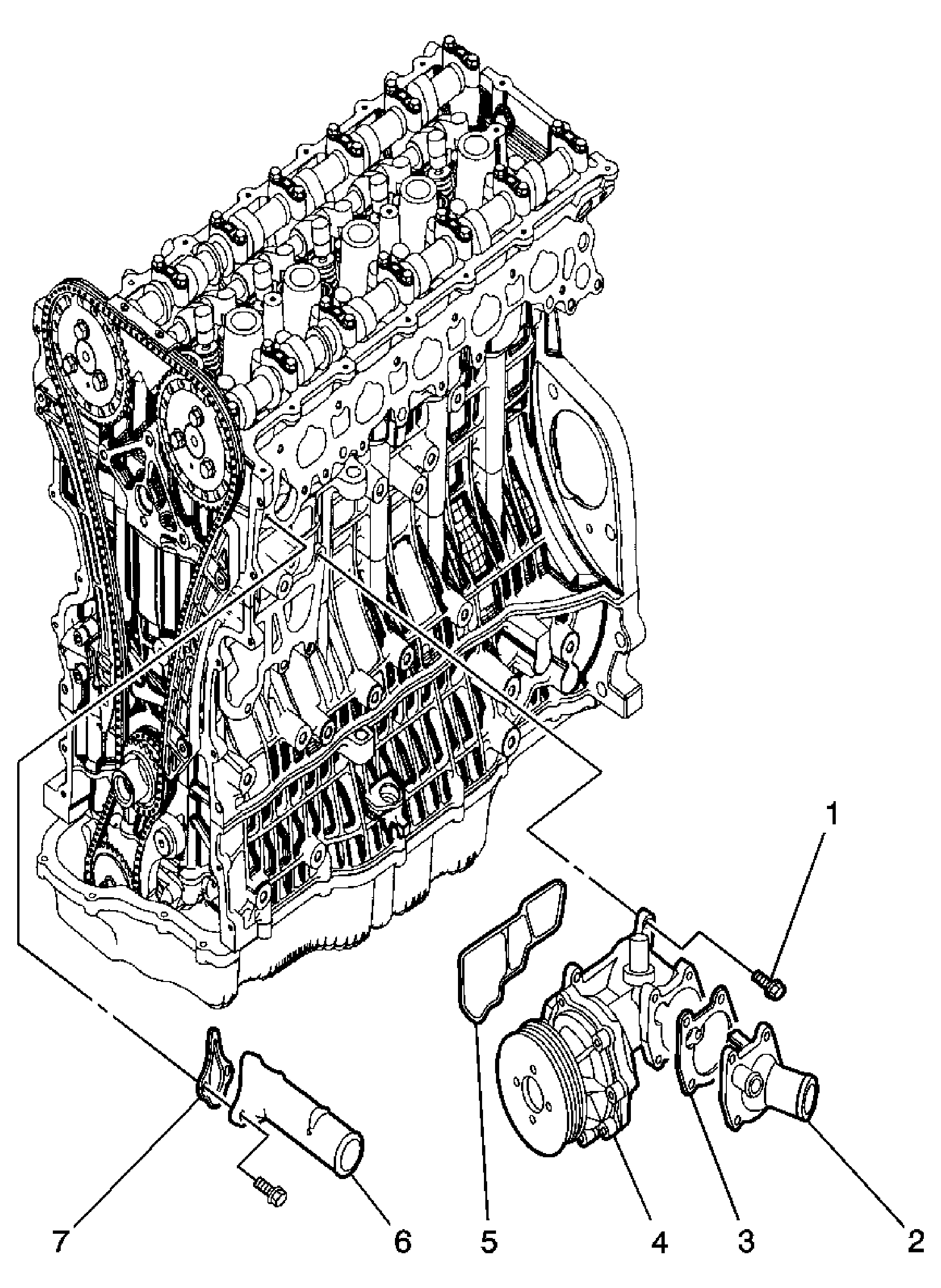

| Callout | Component Name |
|---|---|
| 1 | Coolant Pump Mounting Bolt |
| 2 | Thermostat |
| 3 | Thermostat Seal Ring |
| 4 | Coolant Pump |
| 5 | Coolant Pump Rubber Seal |
| 6 | Coolant Outlet Port |
| 7 | Coolant Outlet Port Gasket |
