Wiper/Washer System Component Views

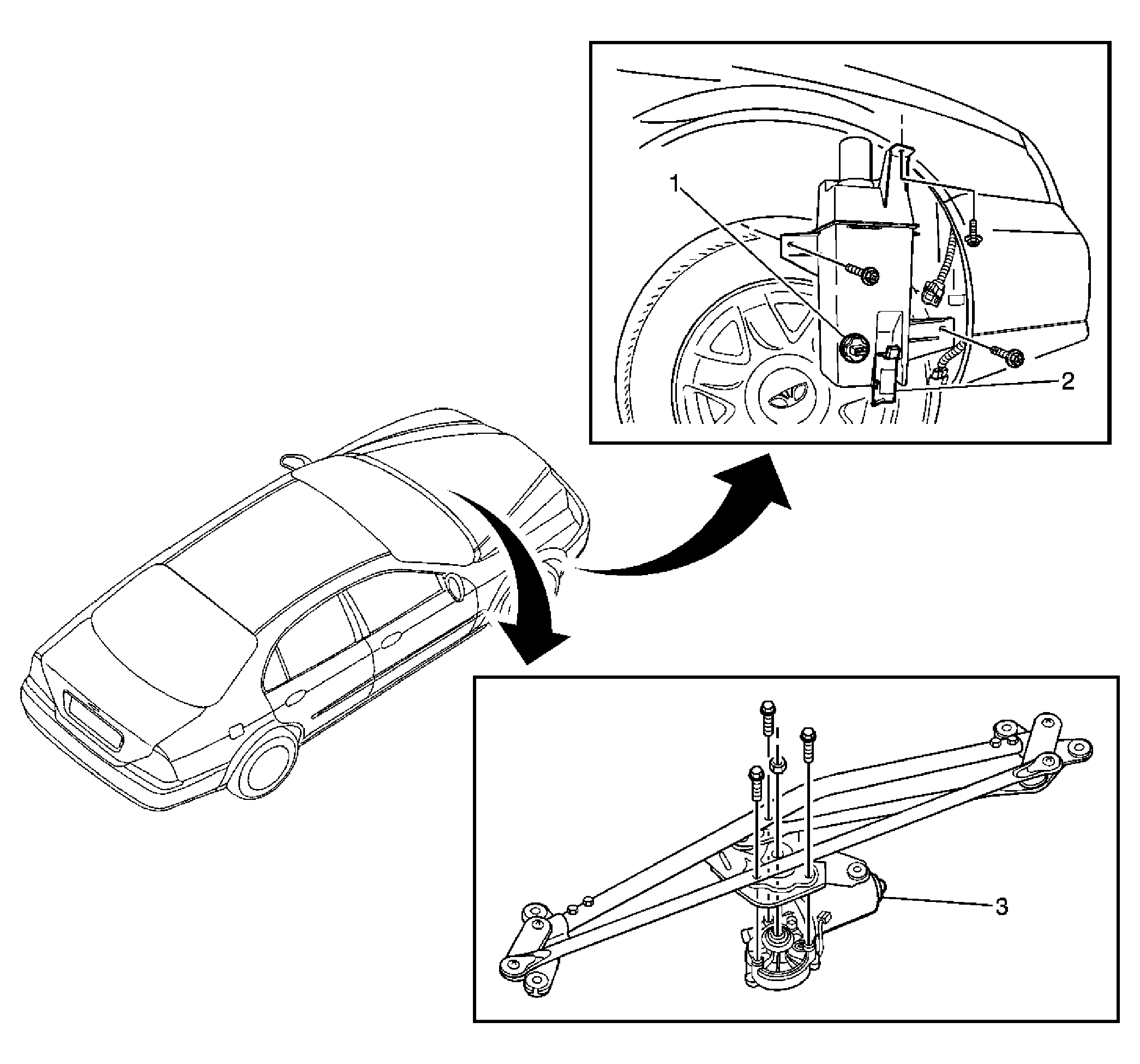

Fig 1: View Of Wiper Motor And Pump Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Washer Solvent Container Level Sensor
2	Windshield Washer Fluid Pump - Front
3	Windshield Wiper Motor

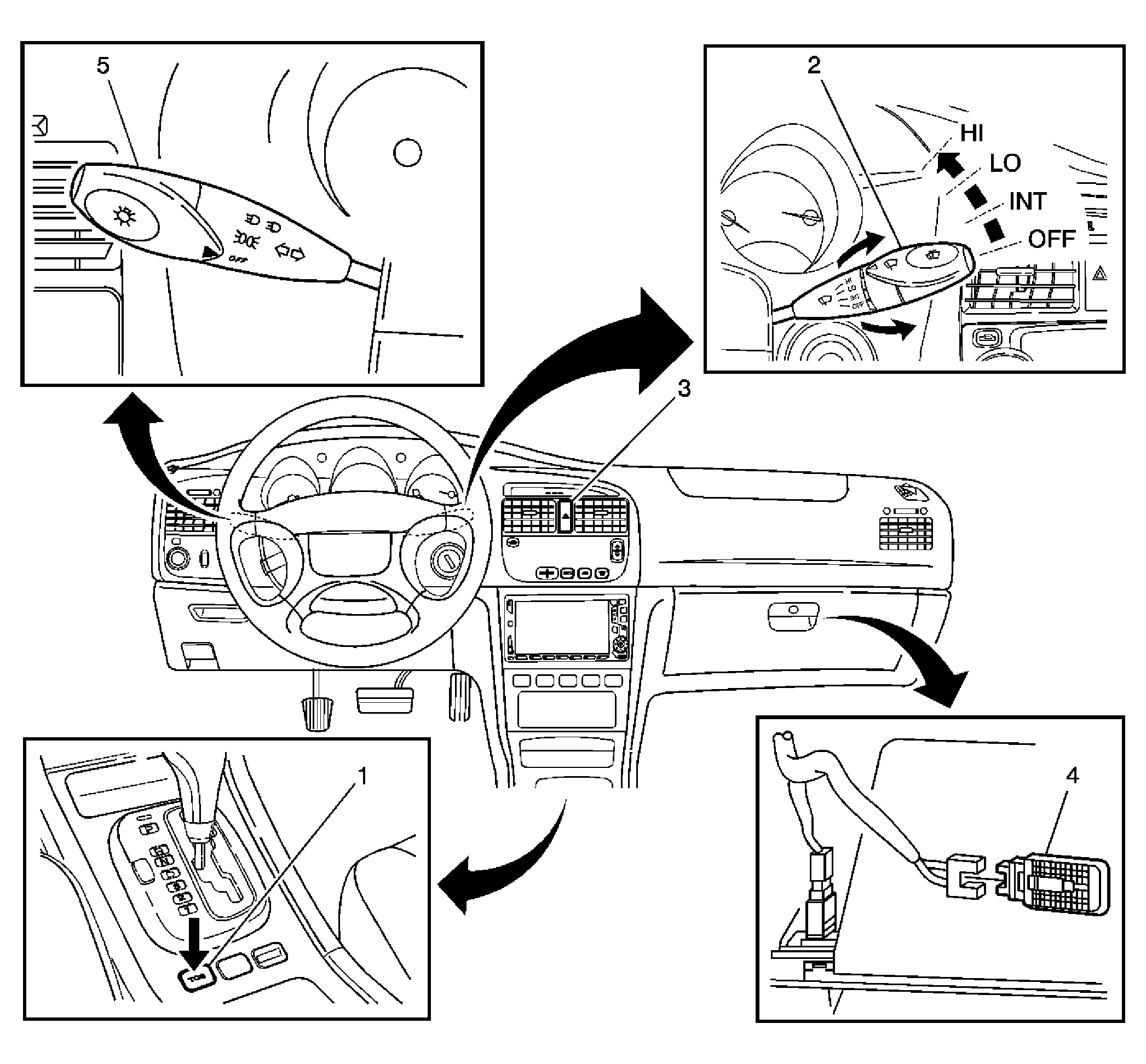

Fig 2: Identifying Instrument Panel Multifunction Switches

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Traction Control Switch
2	Windshield Wiper/Washer Switch
3	Hazard Switch
4	I/P Compartment Lamp/Switch
5	Headlamp Switch, Turn Signal/ Multifunction Switch
