Body Control System Component Views

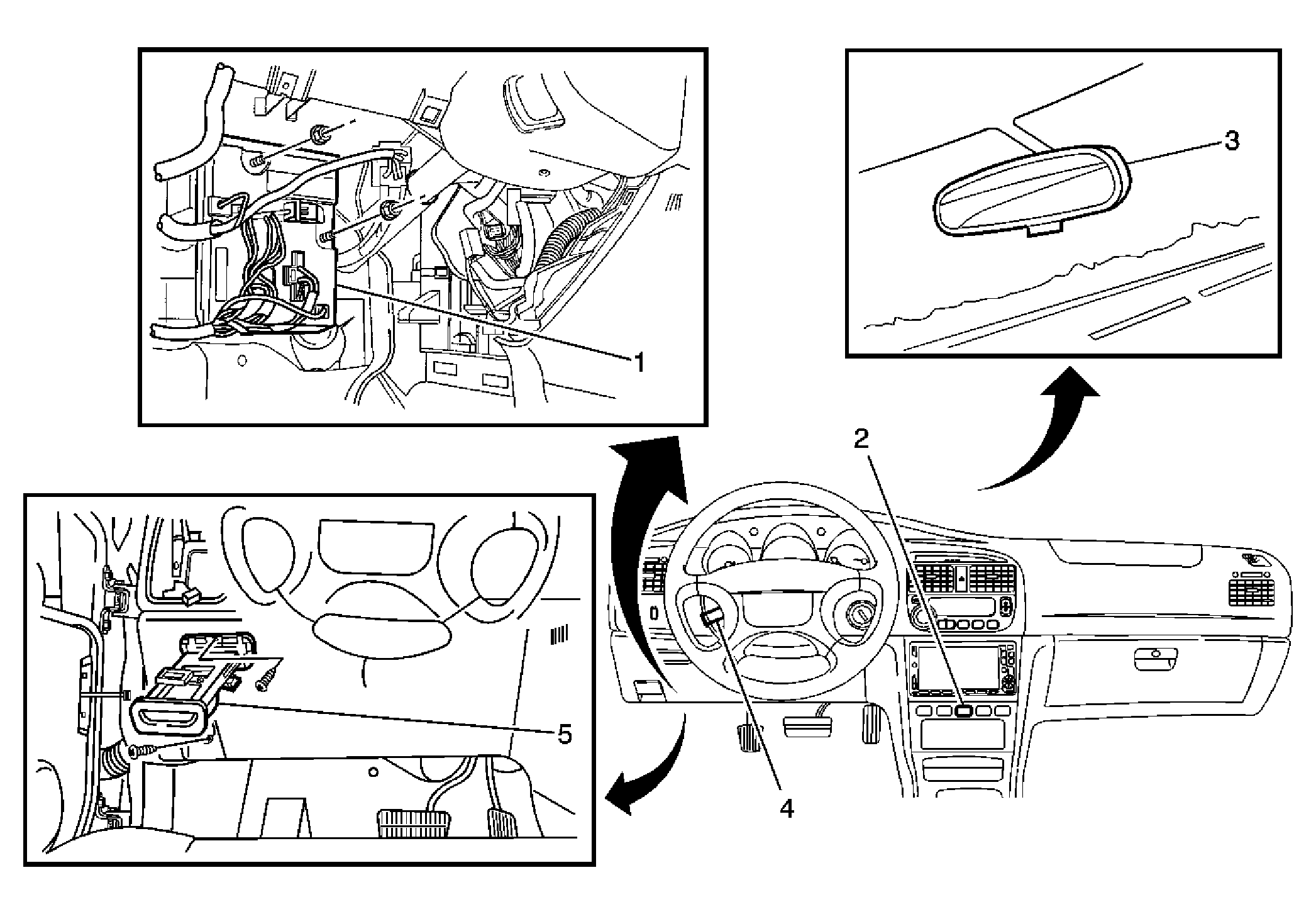

Fig 1: View Of Rearview Mirror And Cruise Control Switch/Module Components
GM1469249Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)
2 Defogger Switch
3 Inside Rearview Mirror
4 Cruise Control Switch
5 Cruise Control Module
