Installation Procedure

    NOTE: Refer to Installing Hoses Without Twists or Bends Notice in Cautions and Notices.

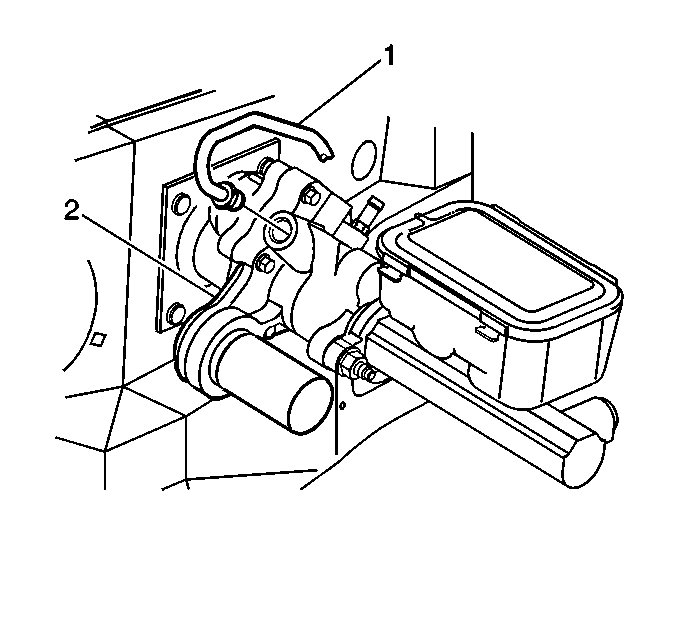

    Fig 1: Power Brake Booster Inlet Hose At Power Brake Booster
    GM407976Courtesy of GENERAL MOTORS CORP.
  1. Route the hose in the same position the hose occupied prior to removal.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the power brake booster inlet hose (1) to the power brake booster (2).

    Tighten:  Tighten the hose fitting to 33 N.m (24 lb ft).

  3. Raise the vehicle.
    4. Fig 2: Power Brake Booster Inlet Hose At Power Steering Pump
    GM309298Courtesy of GENERAL MOTORS CORP.
  4. Install the power brake booster inlet hose (2) to the power steering pump (1) through the wheelwell.

    Tighten:  Tighten the hose fitting to 33 N.m (24 lb ft).

  5. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  6. Lower the vehicle.
  7. Bleed the power steering system. Refer to Bleeding the Power Steering System .
  8. Remove the drain pan from under the vehicle.
