SIR Component Views

Fig 1: SIR Components

GM691835

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front End Sensor
2	Front End Lower Tie Bar
3	Inflatable Restraint Steering Wheel Module Coil
4	Inflatable Restraint I/P Module
5	Inflatable Restraint Sensing and Diagnostic Module (SDM)
6	Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
7	Inflatable Restraint Steering Wheel Module
8	Steering Wheel

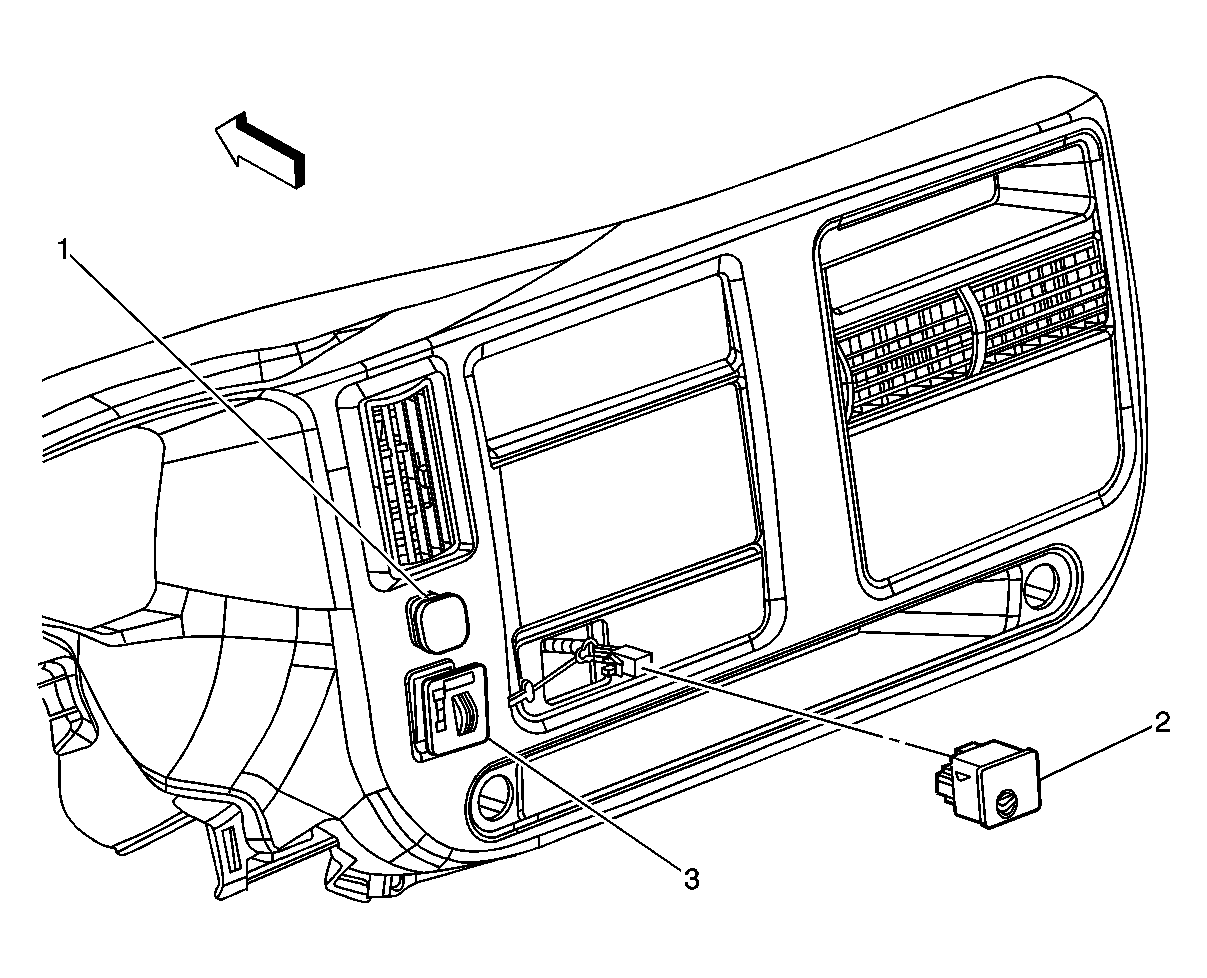

Fig 2: Center of the I/P

GM886089

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tow/Haul Switch
2	Inflatable Restraint I/P Module Disable Switch (Heavy Duty)
3	Blower Motor Switch - Auxiliary (C36)

Fig 3: Driver Seat

GM1387181

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch - LF
2	Inflatable Restraint Seat Position Sensor (SPS) Connector - Left (Light Duty)
3	C307
4	Seat Adjuster Switch - Driver (AG1)
5	Seat Adjuster Switch Connector - Driver (AG1)
6	Seat Motors Connector - Driver (AG1)
7	S304 (AG1)
8	Seat Motor - Forward/Rearward (AG1)
9	Seat Motor - Front Tilt (AG1)
10	Seat Motor - Rear Tilt (AG1)
11	Inflatable Restraint Seat Position Sensor (SPS) - Left (Light Duty)

Fig 4: Front Passenger Seat

GM1387184

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Adjuster Switch - Front Passenger (AG2)
2	Inflatable Restraint Seat Position Sensor (SPS) Connector - Right (Light Duty)
3	C306
4	Inflatable Restraint Seat Position Sensor (SPS) - Right (Light Duty)
5	Seat Motor - Rear Tilt (AG2)
6	Seat Motor - Front Tilt (AG2)
7	Seat Motor - Forward/Rearward (AG2)
8	Seat Motors Connector - Front Passenger (AG2)
9	Seat Adjuster Switch Connector - Front Passenger (AG2)
