UNDERHOOD Fuse Block
NOTE:

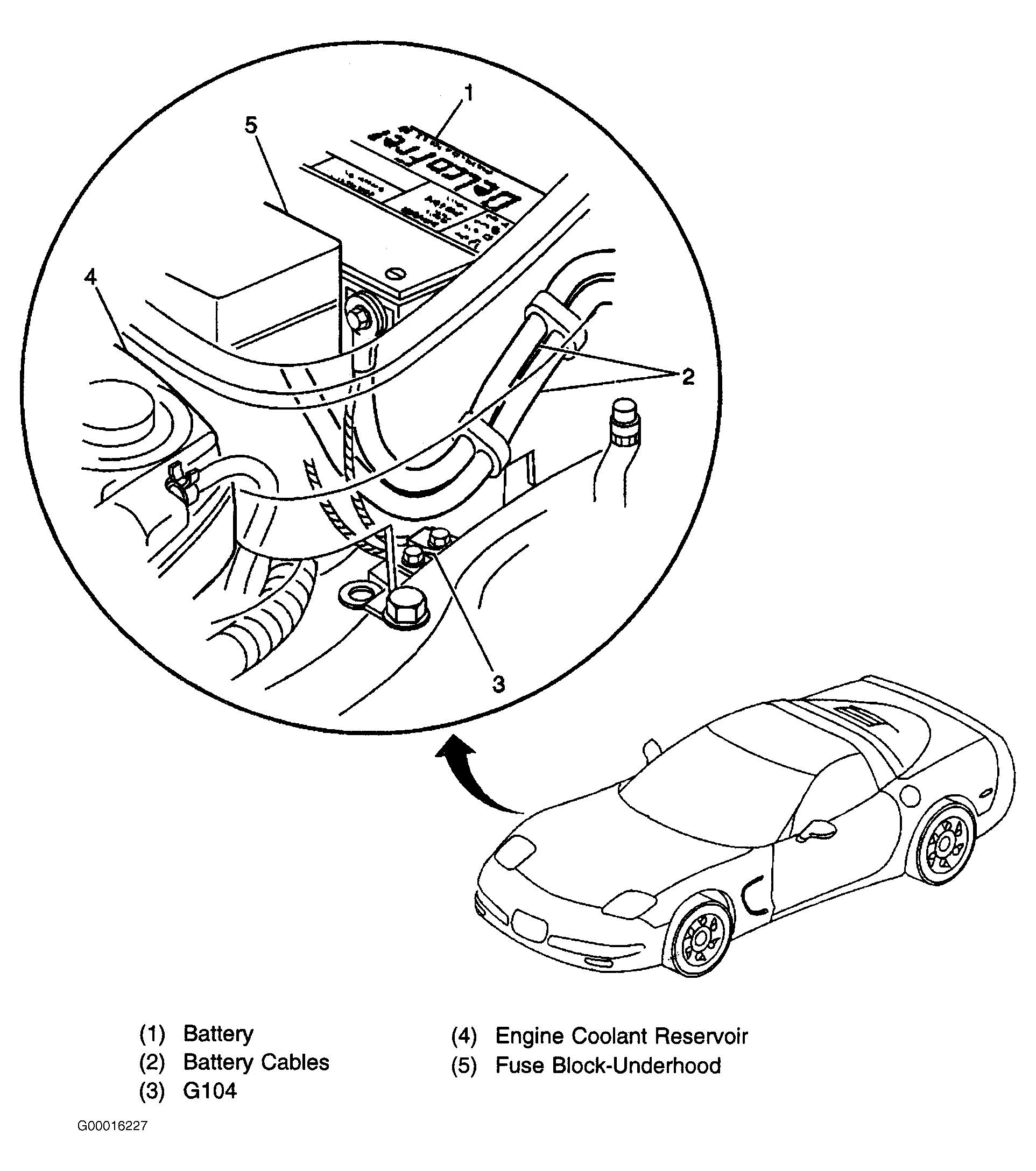

Underhood fuse block is located on passenger's side of engine compartment, next to battery. See Fig 1.

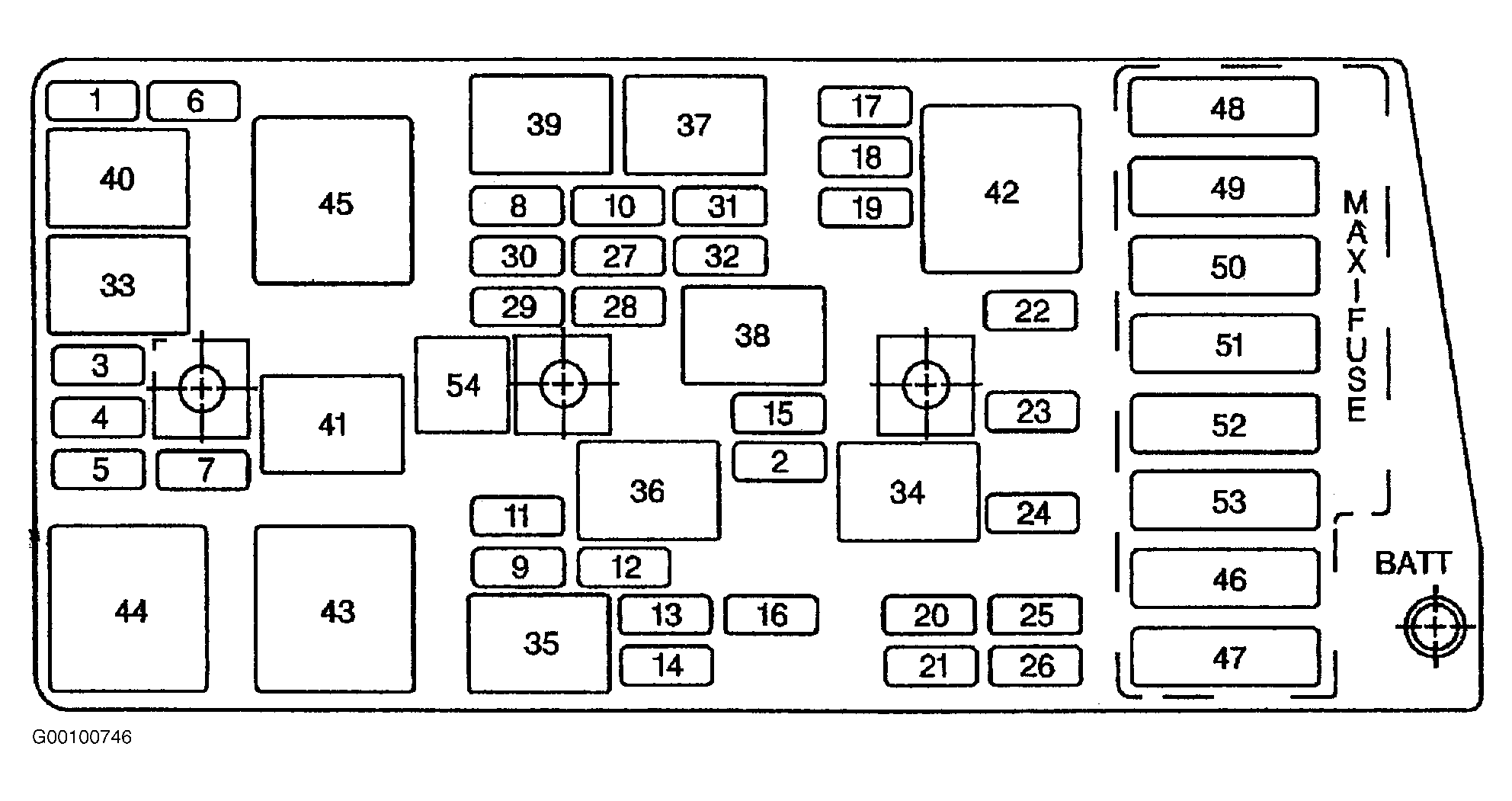

UNDERHOOD FUSE BLOCK LEGEND
| Number | Fuse/Relay | Rating | Description |
|---|---|---|---|
| 1 | RRFOGLP Fuse | 10A | Fog Lamp Switch, Fog Lamp LR, Fog Lamp RR |
| 2 | APPROACH Fuse | 15A | BACKUP LP Relay, DRL L Relay, DRL R Relay |
| 3 | HDLPMOTRH Fuse | 10A | Headlamp Door Control Module |
| 4 | HDLPMOTLH Fuse | 10A | Headlamp Door Control Module |
| 5 | ABSTRNS Fuse | 10A | Electronic Brake Control Module (EBCM), Electronic Suspension Control (ESC) Module |
| 6 | FOG LP Fuse | 10A | Fog Lamp/Rear Compartment Lid Release Switch, Fog Lamp - RF, Fog Lamp - LF |
| 7 | - | - | Not Used |
| 8 | HDLOBMR Fuse | 10A | Headlamp Low Beam - Right |
| 9 | HDHIBMR Fuse | 10A | Headlamp High Beam - Right |
| 10 | HDLOBML Fuse | 10A | Headlamp Low Beam - Left |
| 11 | HORN Fuse | 20A | Horn Assembly |
| 12 | HDHIBML Fuse | 10A | Headlamp High Beam - Left |
| 13 | F/PMP Fuse | 20A | Fuel Pump Relay |
| 14 | COOLFAN3 Fuse | 10A | COOL FAN 2 Relay, COOL FAN 3 Relay |
| 15 | OXY SEN Fuse | 15A | Heated Oxygen Sensors (HO2S) Bank 1 Sensor 1, Bank 1 Sensor 2, Bank 2 Sensor 1, Bank 2 Sensor 2 |
| 16 | PCM Fuse | 10A | Powertrain Control Module (PCM), IGN Relay |
| 17 | THROTCONT Fuse | 15A | Throttle Actuator Control (TAC) Module |
| 18 | INJR2 Fuse | 15A | Fuel Injectors 2,4,6,8, Ignition Coil/Modules 2,4,6,8 |
| 19 | ENGIGN1 Fuse | 10A | Cruise Control Release Switch, Stop Lamp Switch, Mass Air Flow (MAF) Sensor, Evaporative Emission (EVAP) Canister Purge Solenoid, Evaporative Emission (EVAP) Canister Vent Solenoid, Automatic Transmission, Secondary Air Injection (AIR) Solenoid, Reverse Inhibit Solenoid (MM6), Skip Shift Solenoid (MM6), AIR PMP Relay |
| 20-21 | - | - | Not Used |
| 22 | INJR1 Fuse | 15A | Fuel Injectors 1,3,5,7, Ignition Coil/Modules 1,3,5,7 |
| 23 | PCM B Fuse | 10A | Powertrain Control Module (PCM) |
| 24 | A/C Fuse | 10A | A/C CLU Relay |
| 25-26 | - | - | Not Used |
| 27-32 | SPARE | - | Spare Fuse |
| 33 | AIR PUMP Relay | - | Secondary AIR Injection (AIR) Pump, Powertrain Control Module (PCM) |
| 34 | A/C CLU Relay | - | A/C Compressor Clutch, A/C Compressor Clutch Diode, Powertrain Control Module (PCM) |
| 35 | F/PMP Fuel Pump Relay | - | Fuel Pump and Sender Assembly |
| 36 | HORN Relay | - | Horn Fuse, Horn Assembly |
| 37 | - | - | Not Used |
| 38 | BACKUP LP Relay | - | Backup Lamp - Left, Backup Lamp - Right, Body Control Module (BCM) |
| 39 | FOG LP (Export) Relay | - | FOG LP Fuse, Body Control Module (BCM) |
| 40-41 | - | - | Not Used |
| 42 | IGN Ignition Relay | - | A/C Fuse, THROTCONT Fuse, INJR 1 Fuse, INJR 2 Fuse, ENGIG 1 Fuse |
| 43 | COOLFAN2 Relay | - | Power Control Module (PCM), Cooling Fan - Right |
| 44 | COOLFAN3 Relay | - | Power Control Module (PCM), Cooling Fan - Right, Cooling Fan - Left |
| 45 | COOLFAN1 Relay | - | Power Control Module (PCM), Cooling Fan - Right, Cooling Fan - Left |
| 46 | COOLFAN2 Fuse | 30A | COOL FAN 2 Relay |
| 47-48 | - | - | Not Used |
| 49 | COOLFAN1 Fuse | 30A | COOL FAN 1 Relay |
| 50 | AIR PUMP Fuse | 20A | AIR PMP Relay |
| 51 | RTD Fuse | 25A | Electronic Suspension Control (ESC) Module |
| 52 | ABS Fuse | 40A | Electronic Brake Control Module (EBCM) |
| 53 | ABS ELEC Fuse | 20A | Not Used |
| 54 | FUSE PULLER | - | Fuse Puller |
