Wheel Alignment Specifications: Specifications

Use illustration for wheel alignment specifications. See Fig 1 .

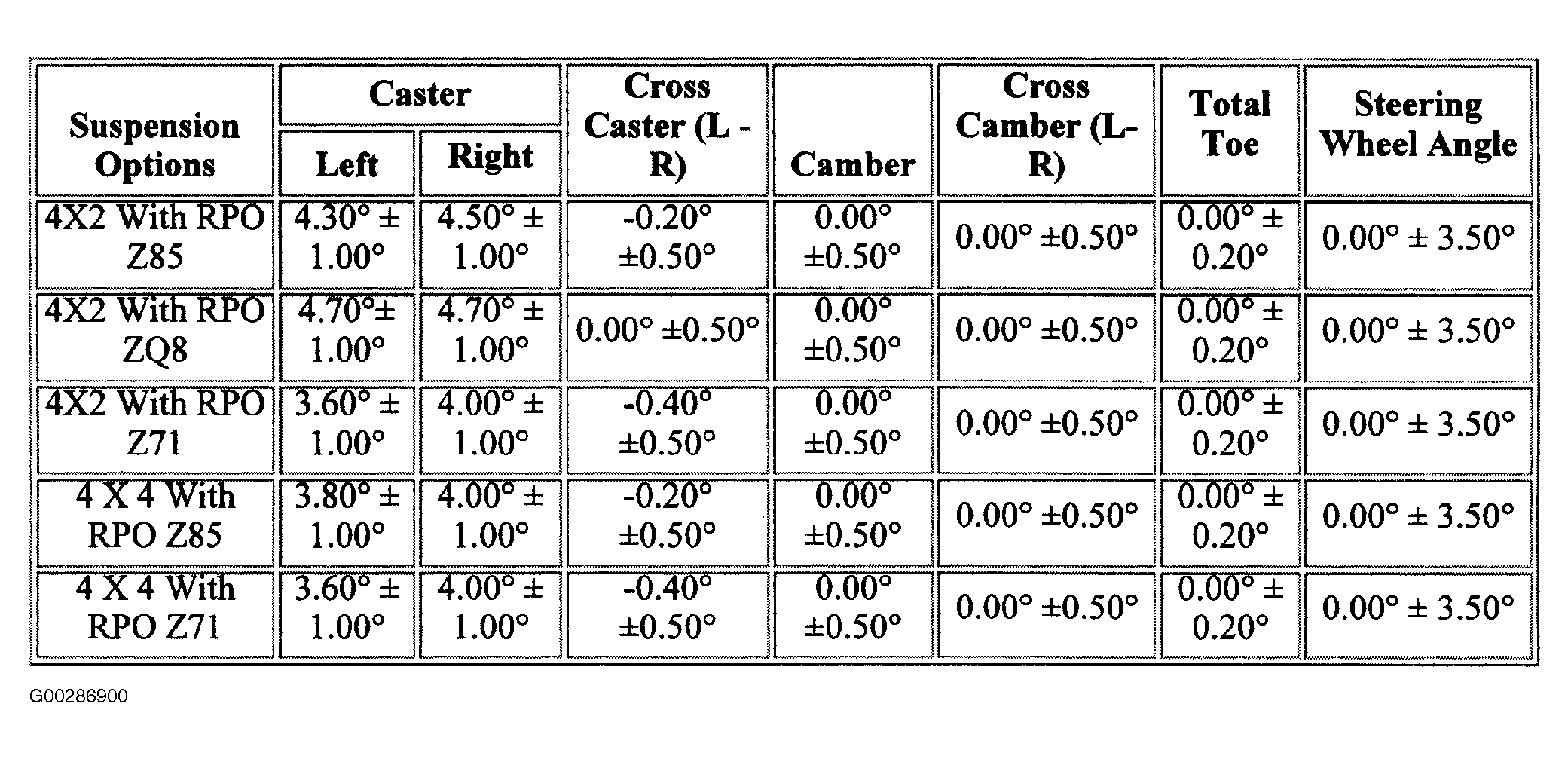

Fig 1: Wheel Alignment Specifications

G00286900

Courtesy of GENERAL MOTORS CORP.
