HVAC Component Views

Fig 1: Below the Center of the IP Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	HVAC Control Assembly

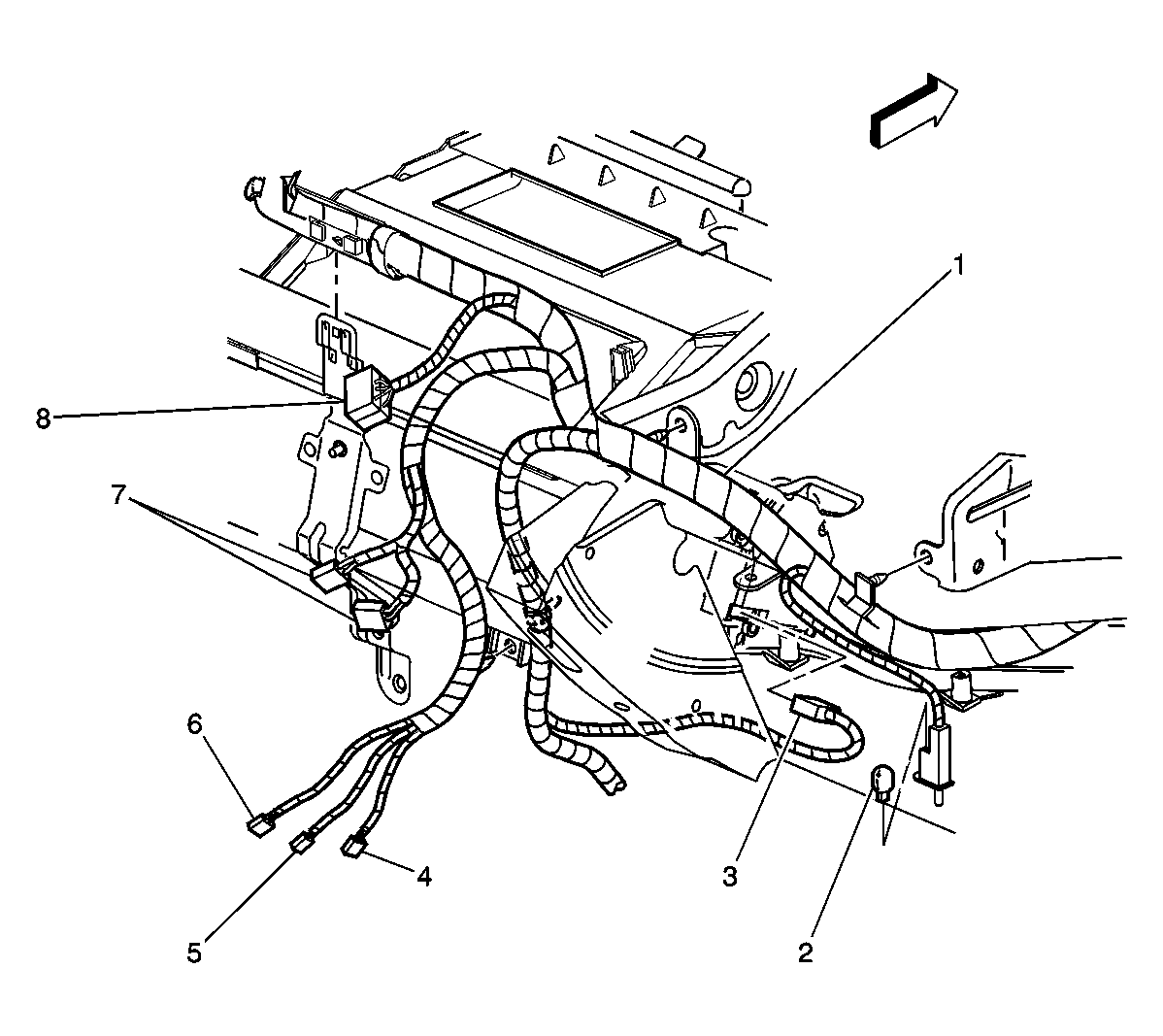

Fig 2: Top Right Side of IP Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	IP Harness
2	Glove Box Lamp/Switch
3	Air Temperature Actuator Connector
4	Cigar Lighter Connector
5	Ashtray Lamp Connector
6	Auxiliary Power Outlet Connector
7	HVAC Control Assembly Connectors
8	Radio Connector

Fig 3: Under the Right Side of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor Resistor Assembly Connector
2	Blower Motor
3	Right I/P Fuse Block
4	Inflatable Restraint I/P Module Connector
5	SP204, G204 (prior to 2004 model year)
6	SP203, G203
7	Courtesy Lamp - Right
8	Body Control Module (BCM)

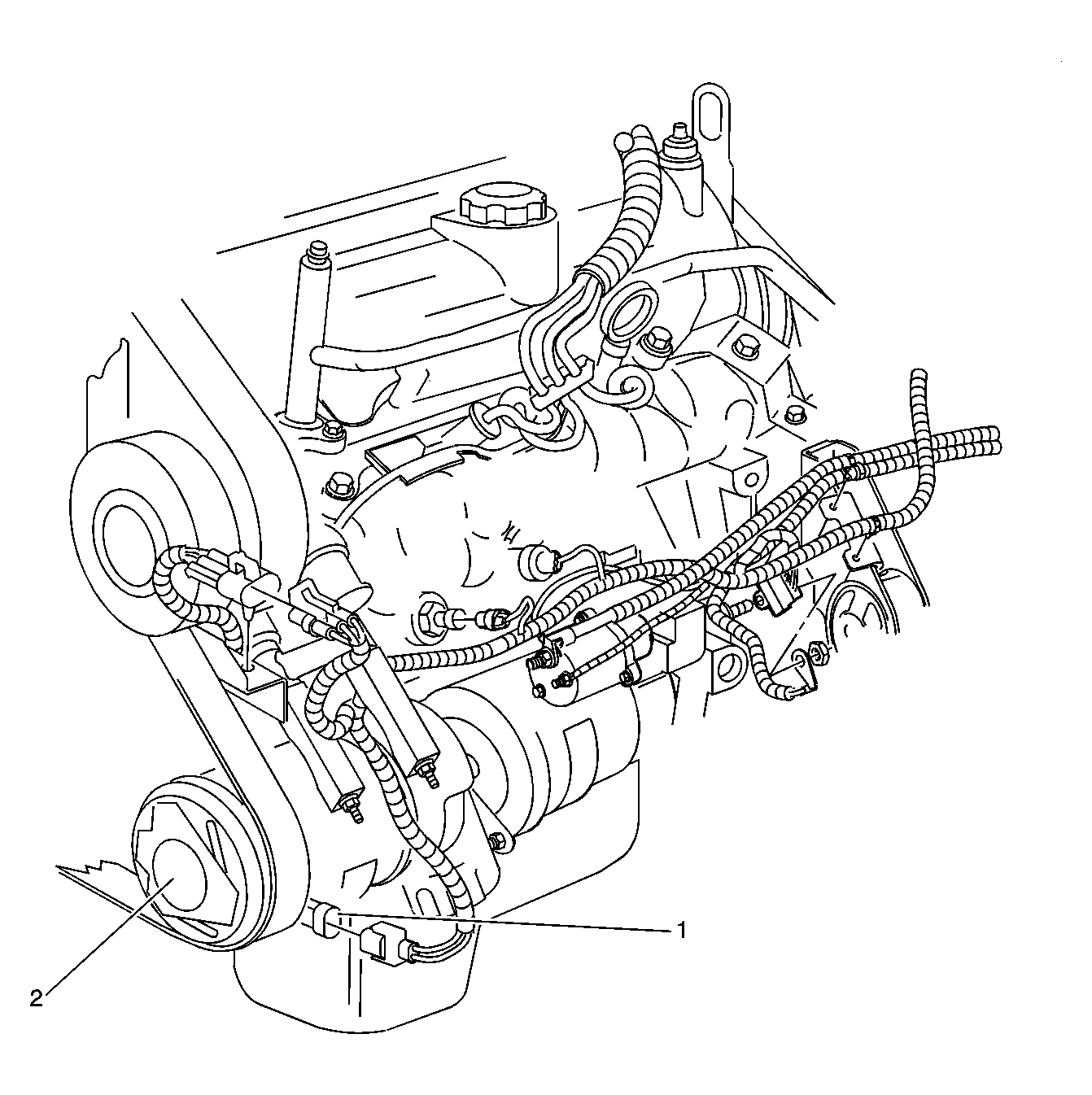

Fig 4: A/C Compressor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor Clutch Connector
2	A/C Compressor Clutch

Fig 5: Coolant Level Switch and A/C Refrigerant Pressure Sensor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Coolant Level Switch
2	A/C Refrigerant Pressure Sensor
