Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .

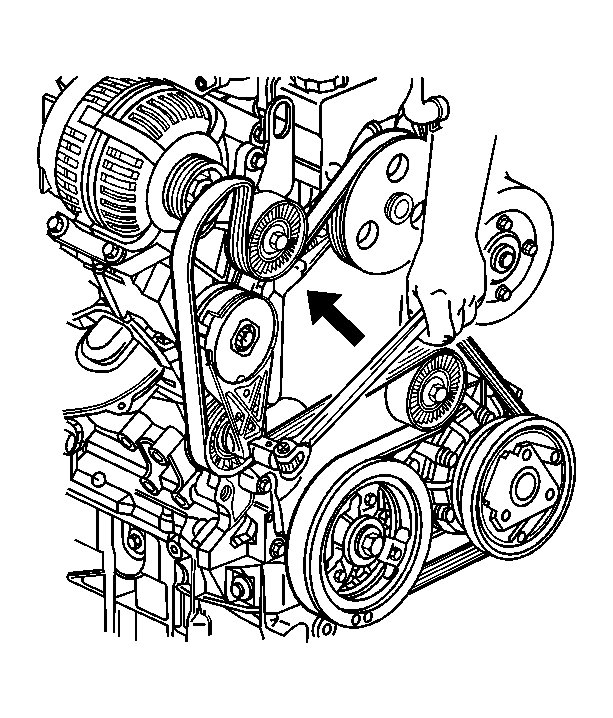

    2. Fig 1: Rotating Drive Belt Tensioner
    GM368807Courtesy of GENERAL MOTORS CORP.
  2. Rotate the drive belt tensioner counter clockwise.
  3. Remove the generator. Refer to Generator Replacement (2.2L (L61))  or Generator Replacement (3.4L) .

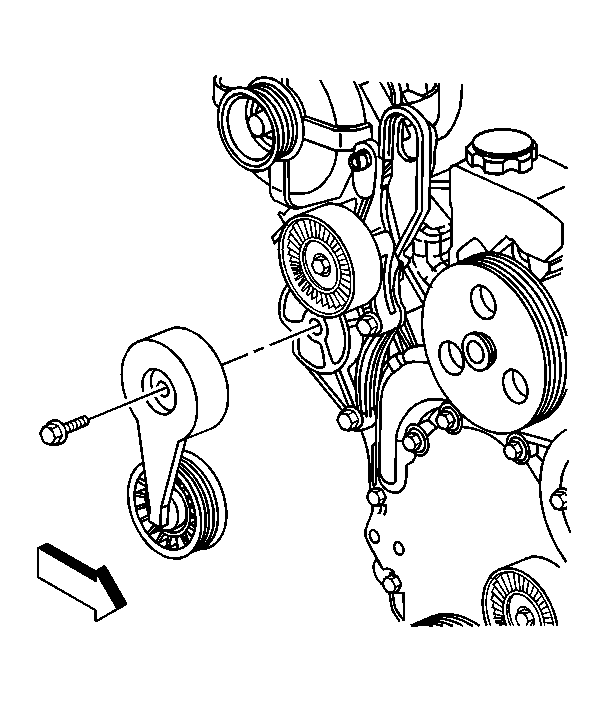

    4. Fig 2: Drive Belt Tensioner
    GM368804Courtesy of GENERAL MOTORS CORP.
  4. Remove the drive belt tensioner bolt.
  5. Remove the drive belt tensioner.
  6. Remove the drive belt idler pulley bolt.
  7. Remove the drive belt idler pulley.

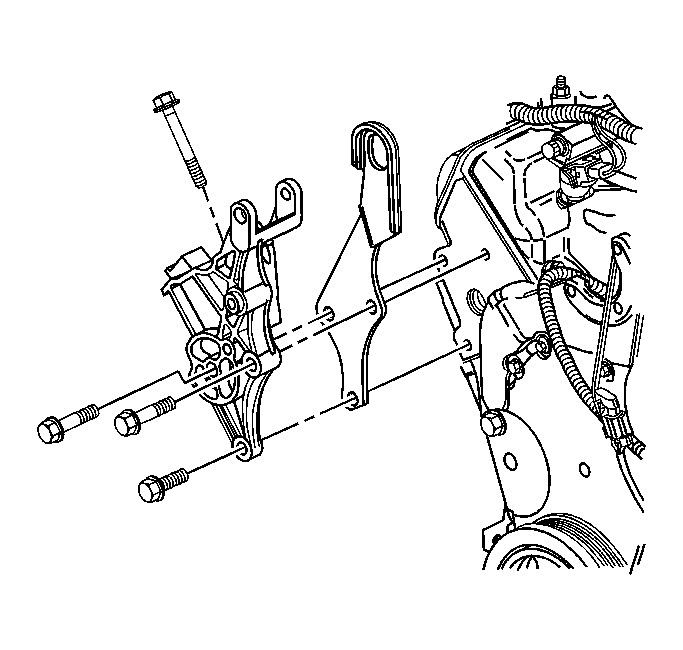

    8. Fig 3: Generator Bracket
    GM905258Courtesy of GENERAL MOTORS CORP.
  8. Remove the generator bracket bolts.
  9. Remove the generator bracket.
