Fuel Rail Assembly

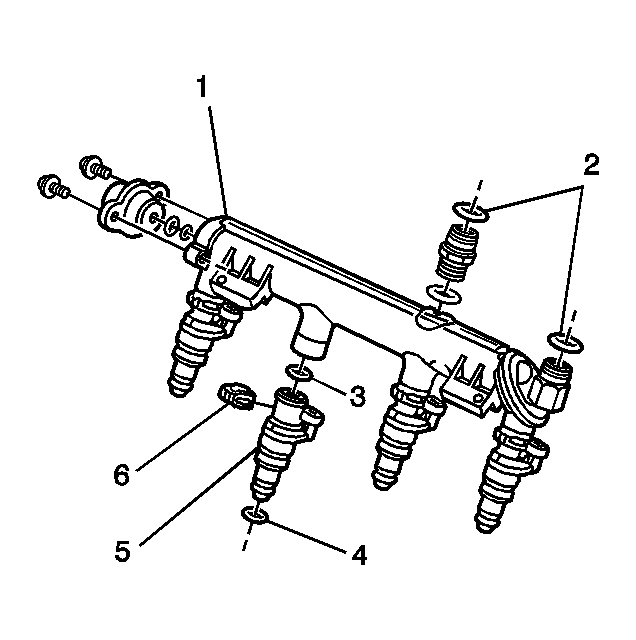

Fig 1: View Of Fuel Rail

Courtesy of GENERAL MOTORS CORP.

The fuel rail assembly (1) attaches to the engine intake manifold. The fuel rail assembly performs the following functions:

• Positions the injectors (5) in the intake manifold
• Distributes fuel evenly to the injectors
• Integrates the fuel pressure regulator into the fuel metering system
