Cooling System Component Views

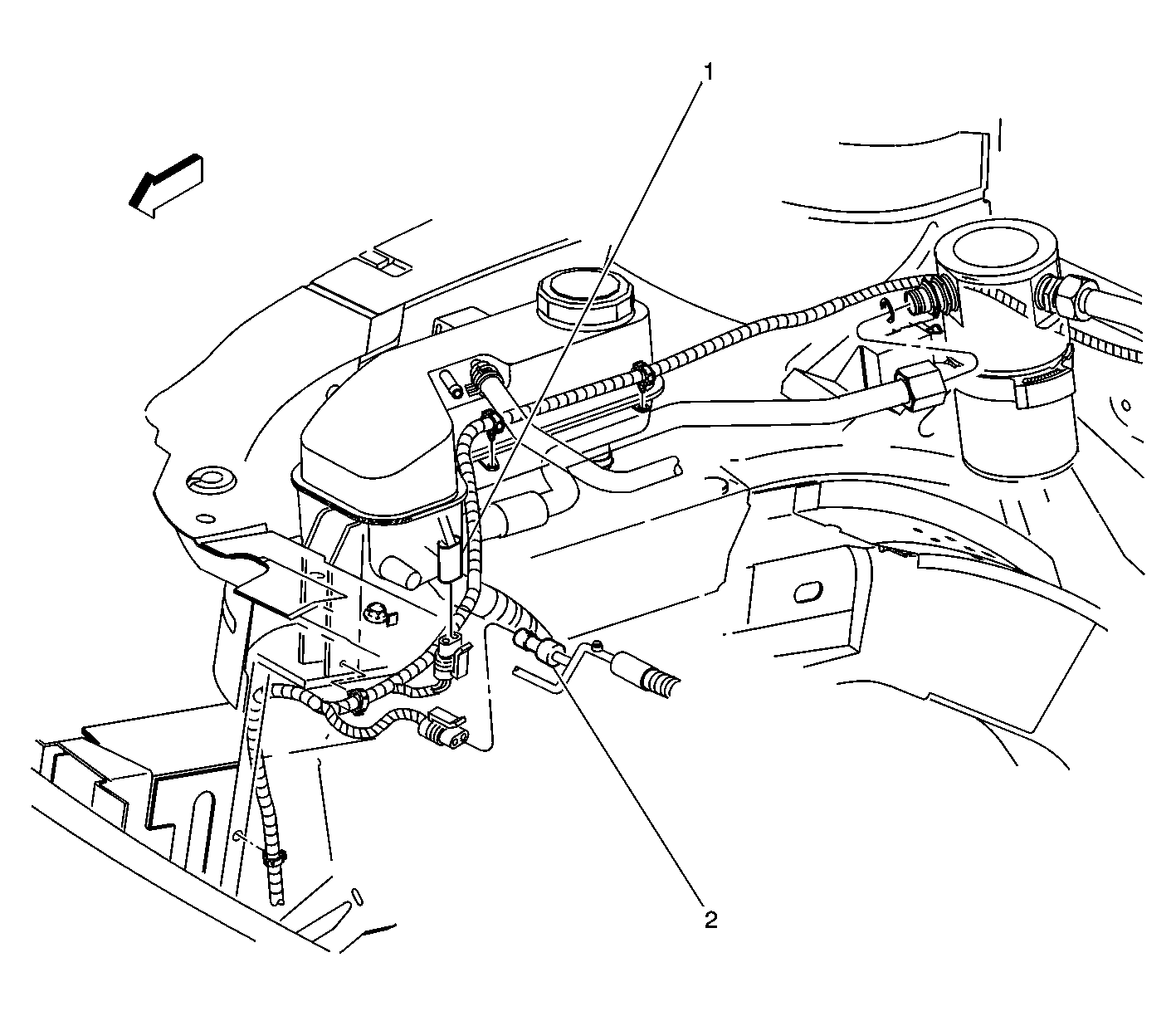

Fig 1: Coolant Level Switch and A/C Refrigerant Pressure Sensor Component View
GM217885Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Coolant Level Switch
2 A/C Refrigerant Pressure Sensor

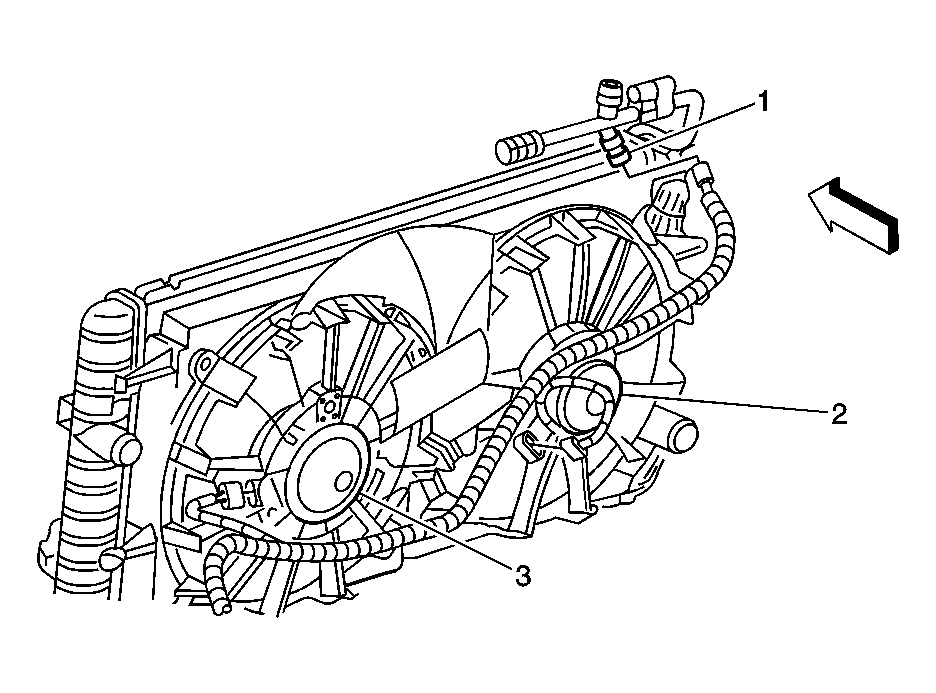

Fig 2: Rear of Radiator Component View
GM217559Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cooling Fan-Left
2 Cooling Fan-Right
3 A/C Refrigerant Pressure Sensor
