Power Distribution Schematics

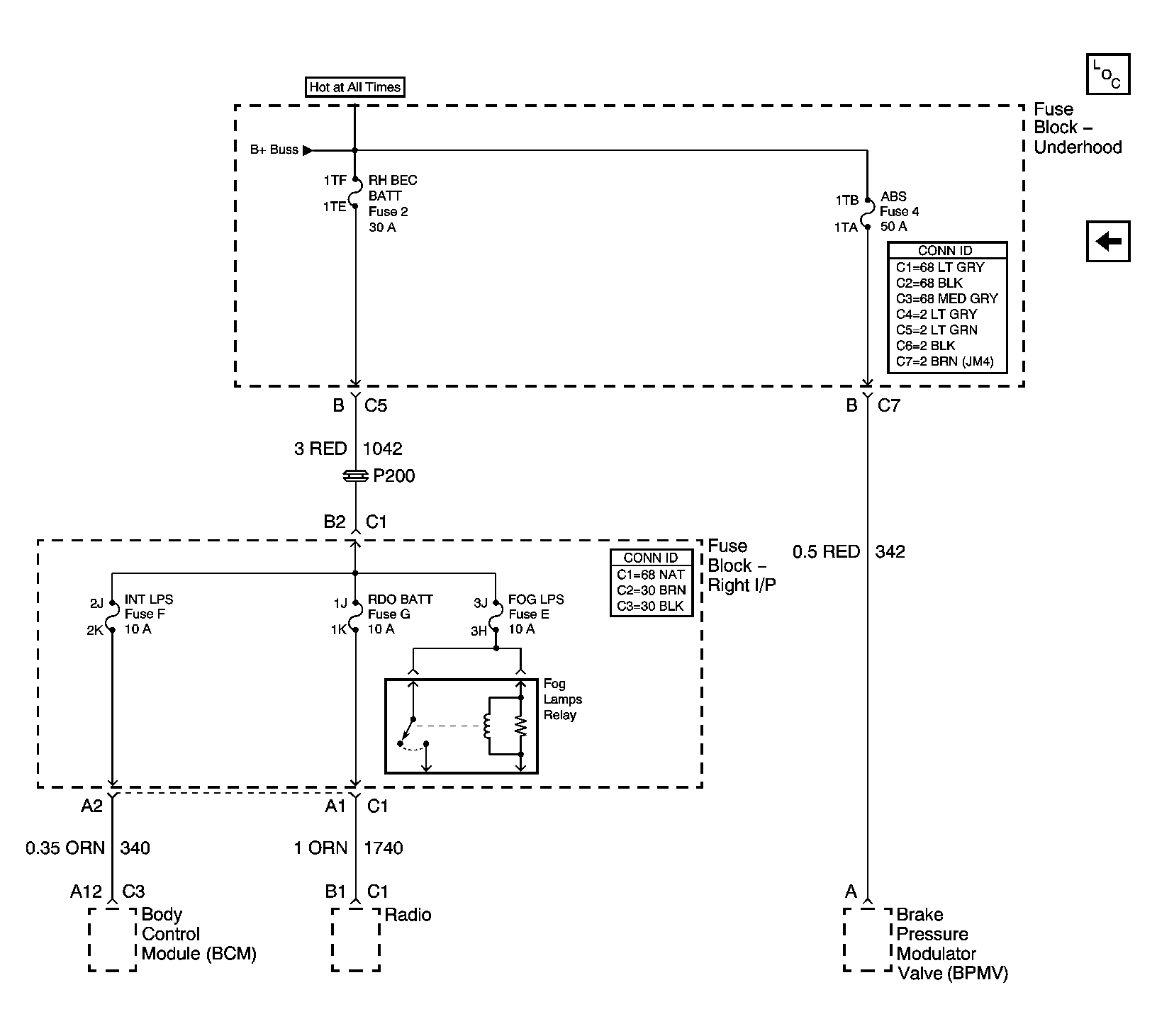

Fig 1: B+Buss Bar Schematic

Courtesy of GENERAL MOTORS CORP.

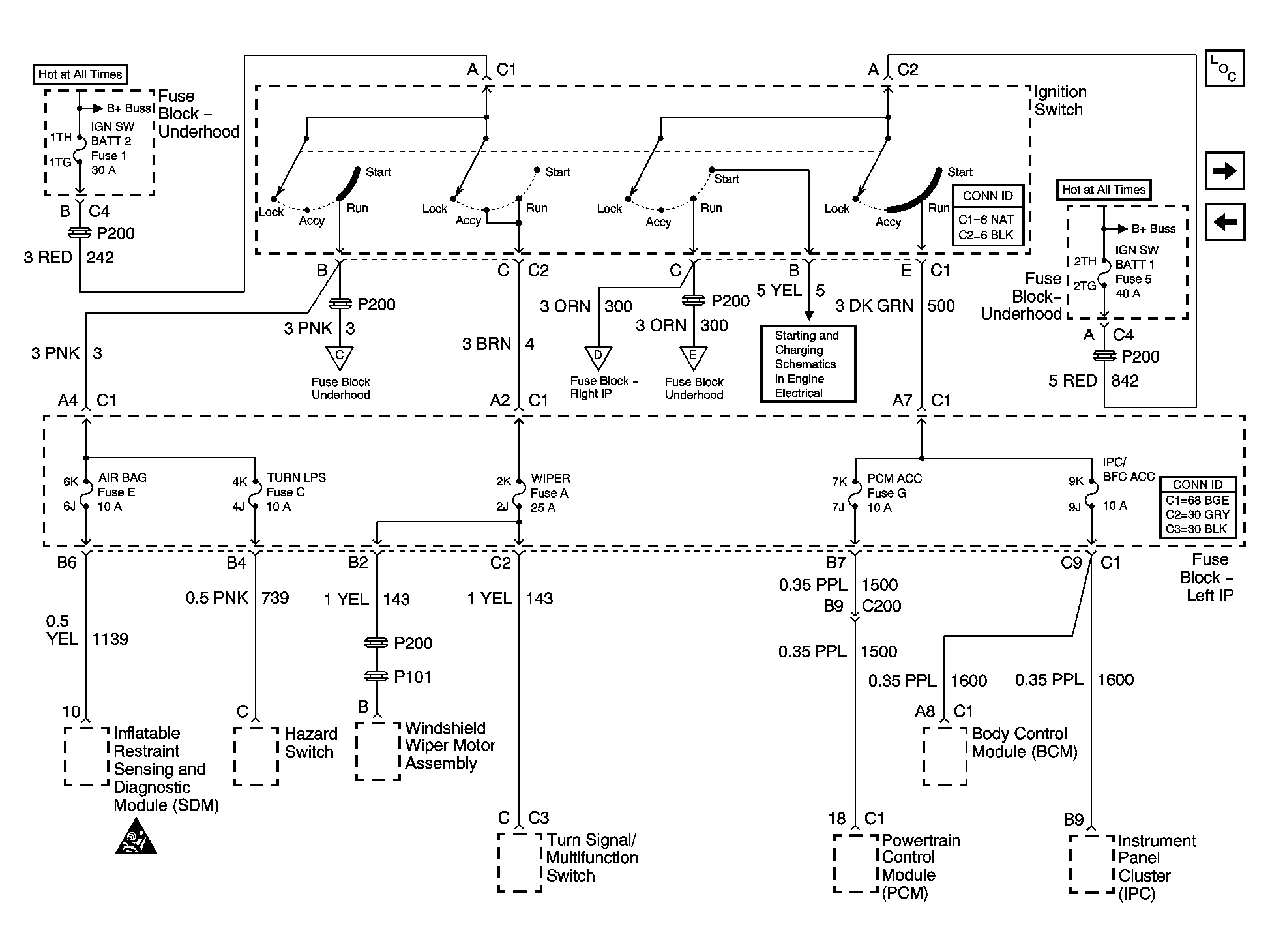

Fig 2: IGN BATT 1, IGN SW BATT 2, Ignition Switch Schematic

Courtesy of GENERAL MOTORS CORP.

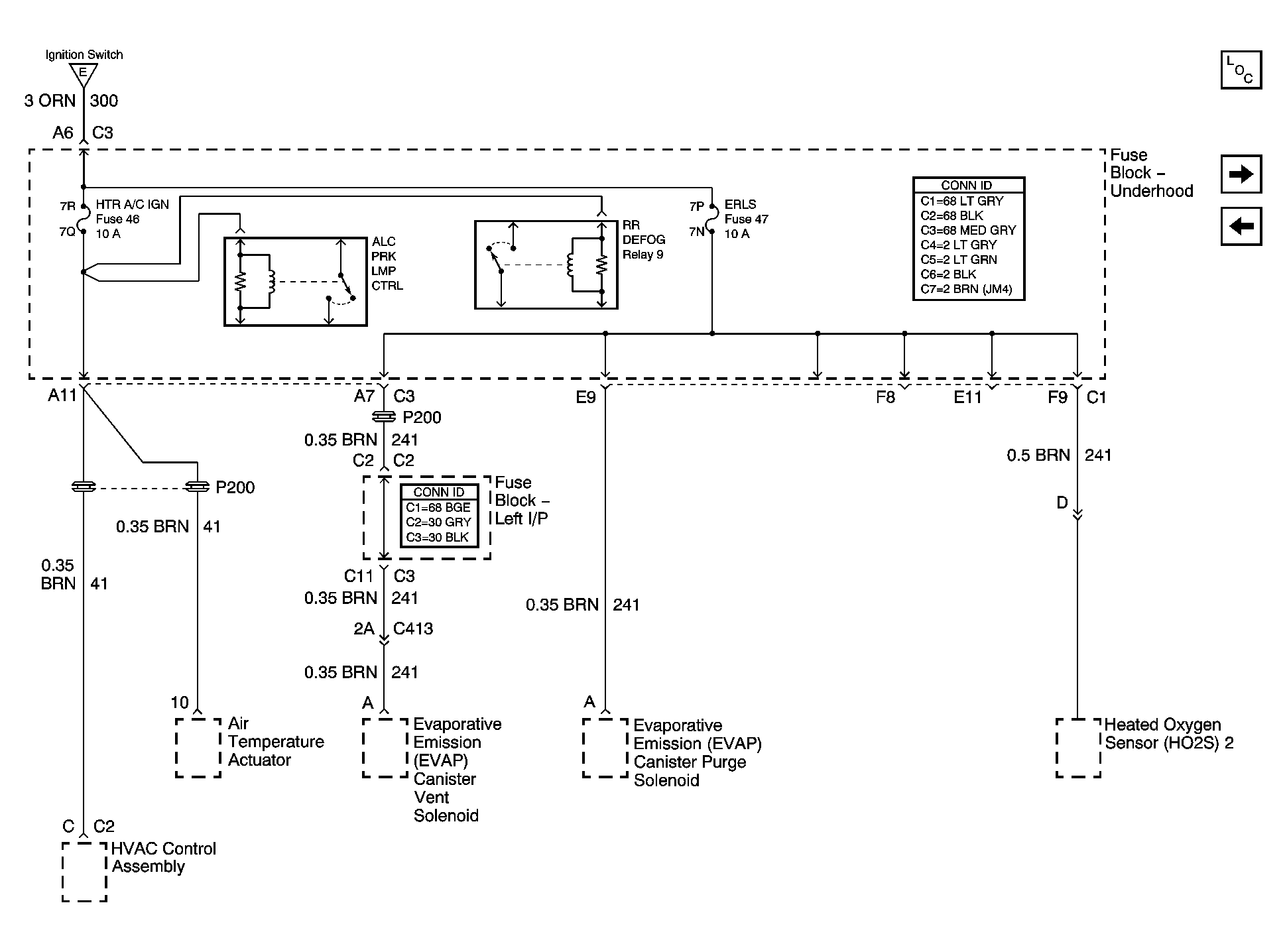

Fig 3: HTR A/C IGN and ERLS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

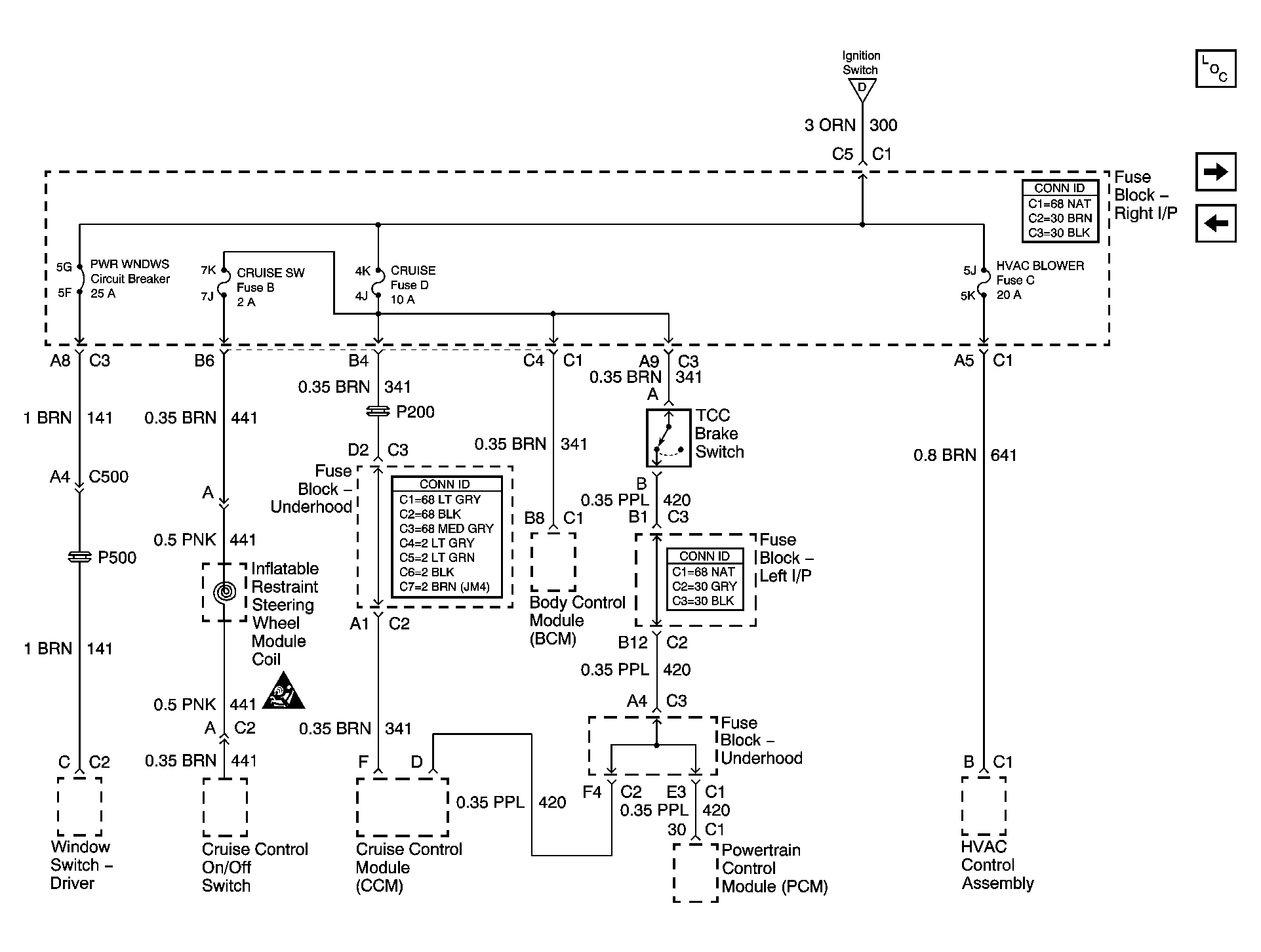

Fig 4: CRUISE SW, CRUISE, SUNROOF, and HVAC BLOWER Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

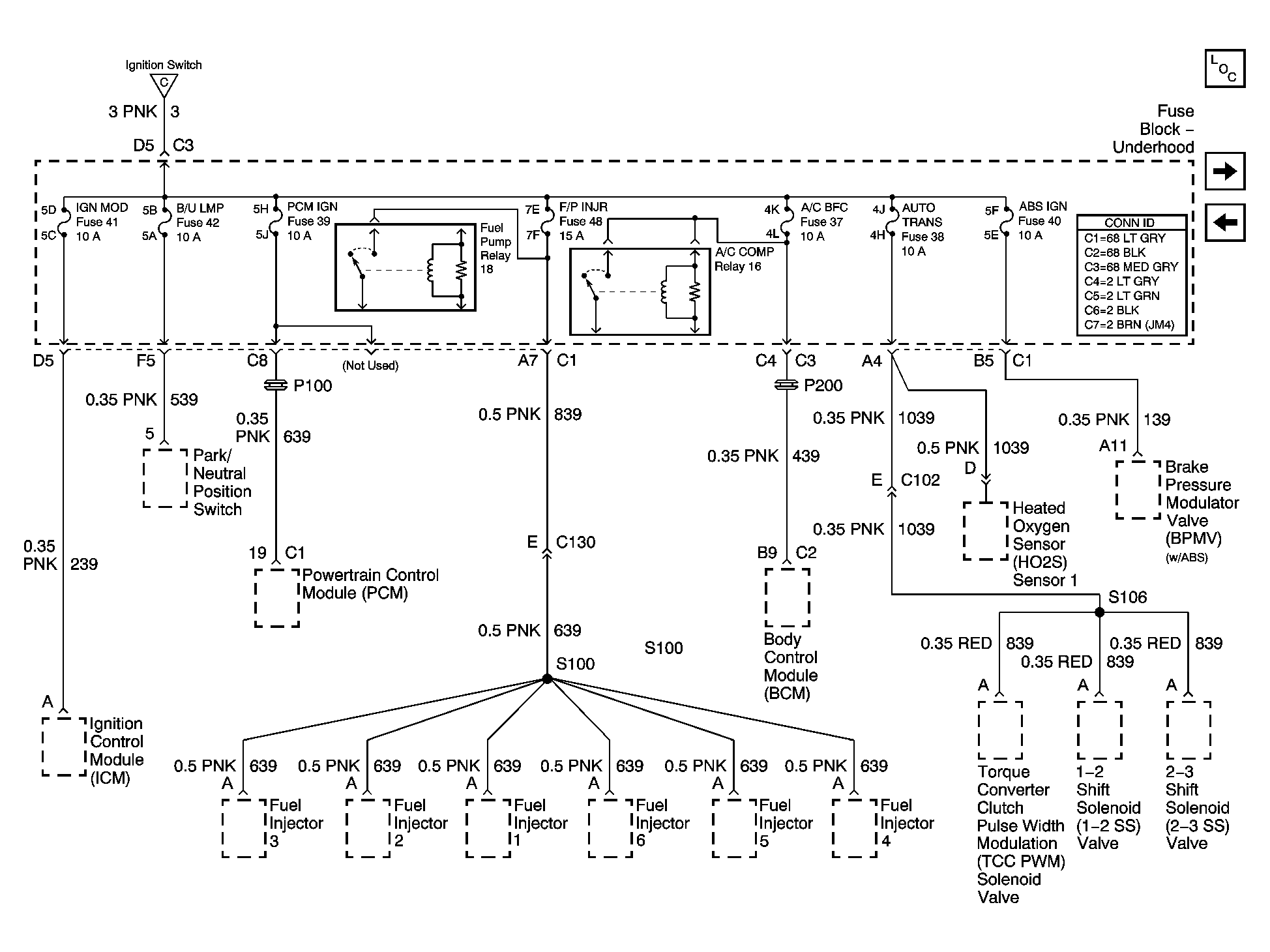

Fig 5: IGN MOD, B/U LMP, PCM IGN, INJR, A/C BFC, AUTO TRANS, ABS IGN Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

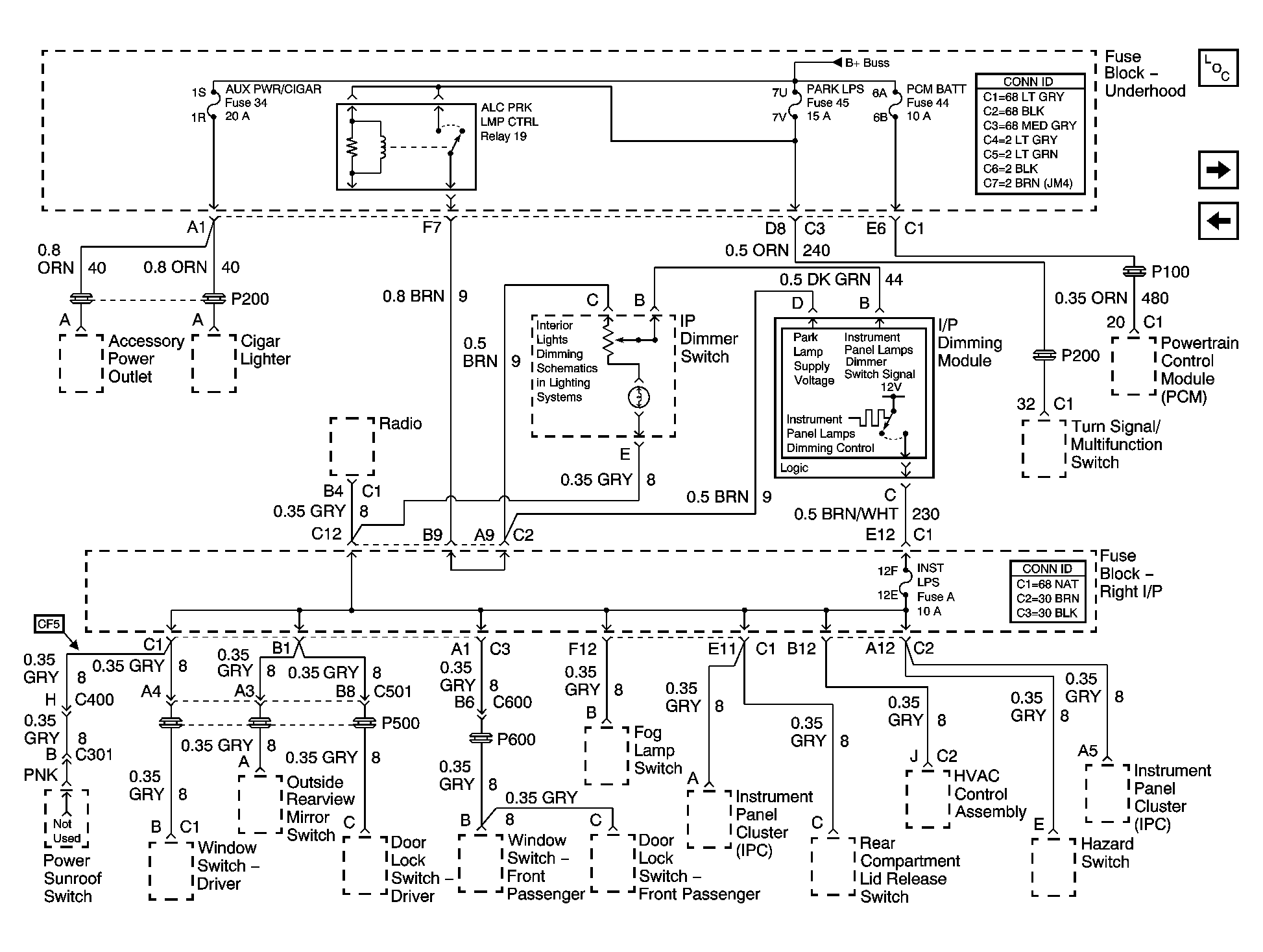

Fig 6: AUX PWR/CIGAR, PRK LPS, and PCM BATT Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: RH HDLP, LH HDLP, and GEN BATT Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

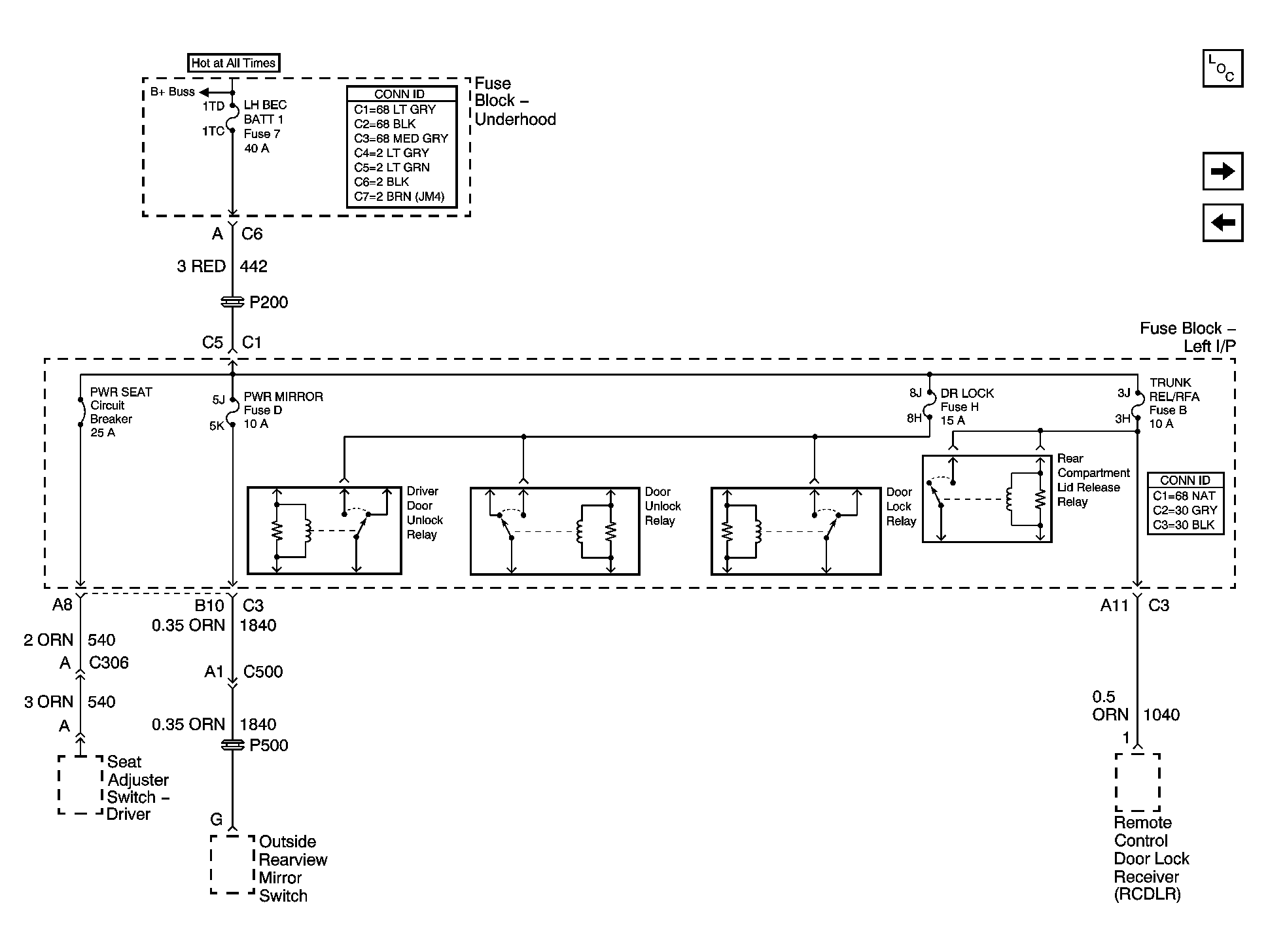

Fig 8: BATT1, PWR Seat, PWR Mirror, DR Lock, Trunk Release/RFA Schematic

Courtesy of GENERAL MOTORS CORP.

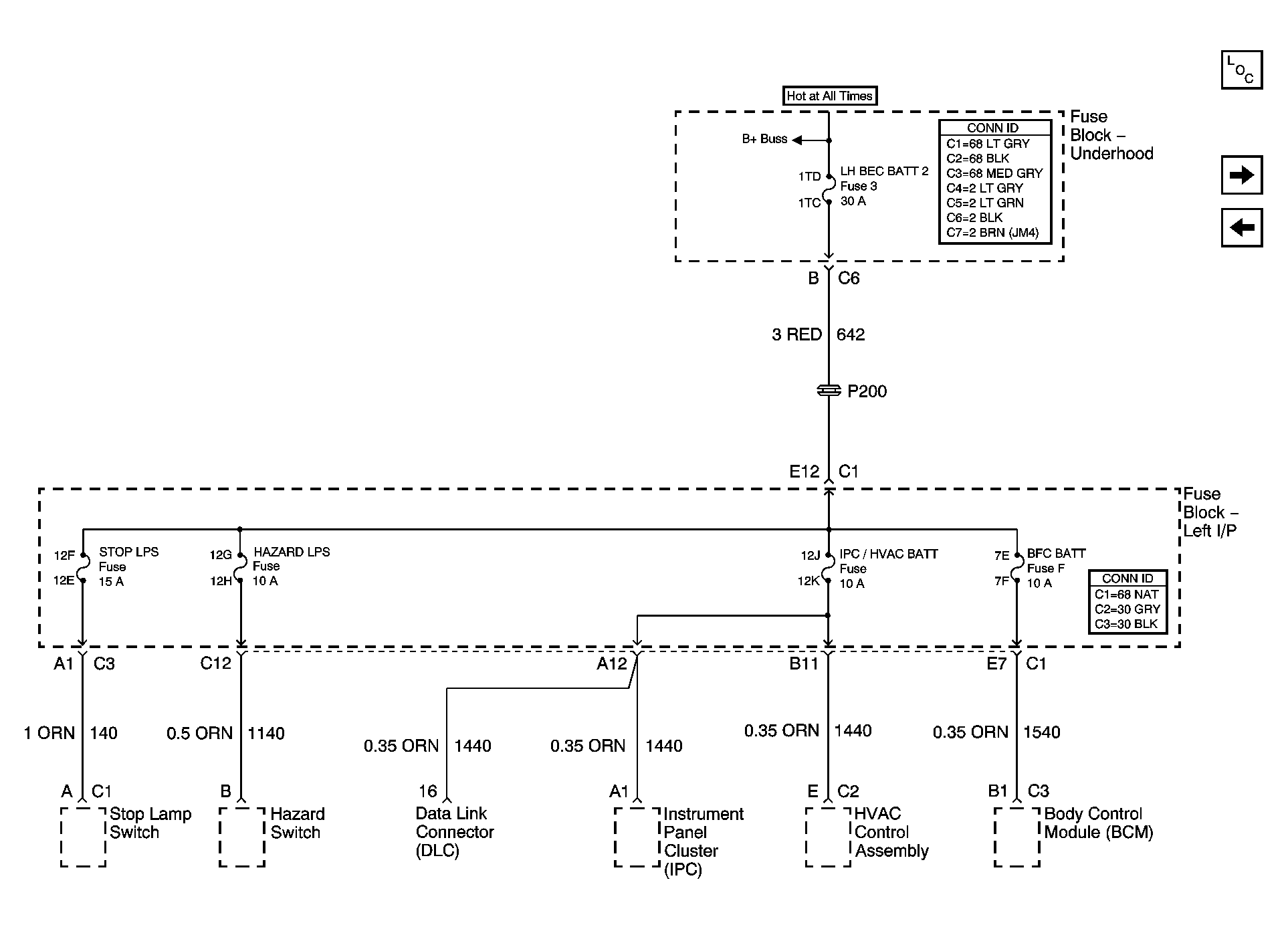

Fig 9: LH BFC BATT 2, STOP LPS, HAZARD LPS, IPC/HVAC BATT, BFC BATT Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

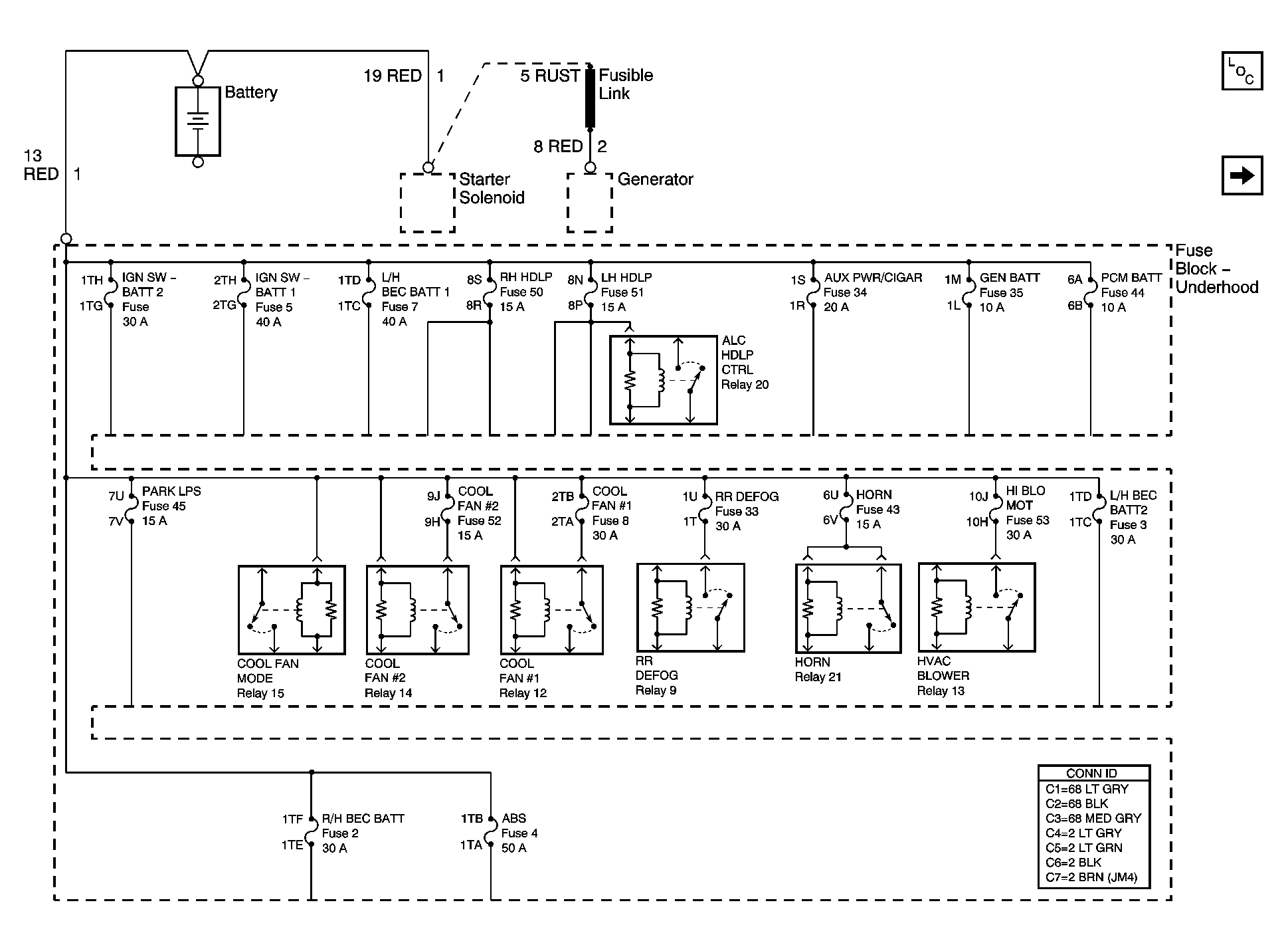

Fig 10: RR DEFOG, HORN, HI BLO MOT, RH BEC BATT, COOL FANS, and ABS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.
