ABS Schematics

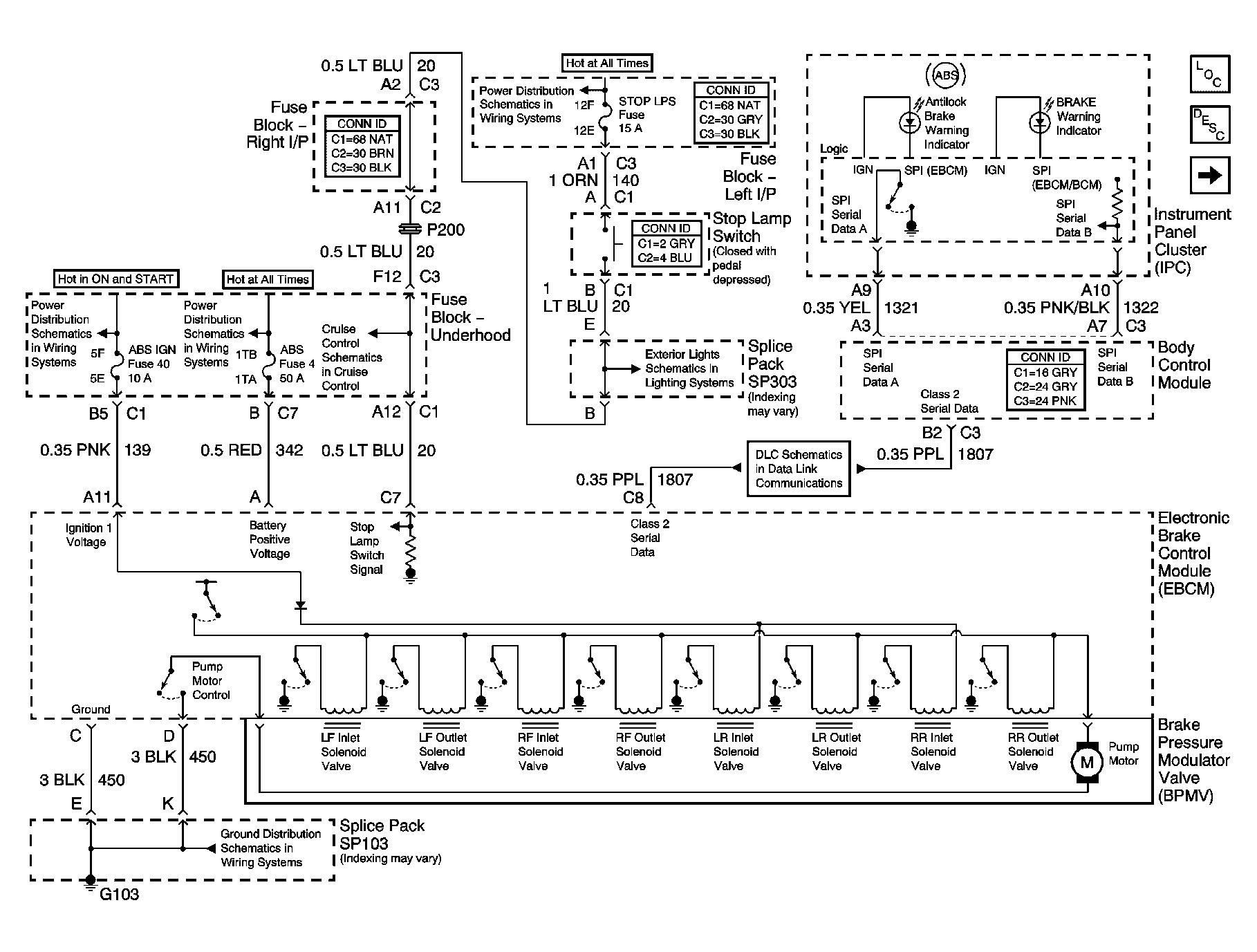

Fig 1: EBCM, PWR, GND, and BPMV

GM783327

Courtesy of GENERAL MOTORS CORP.

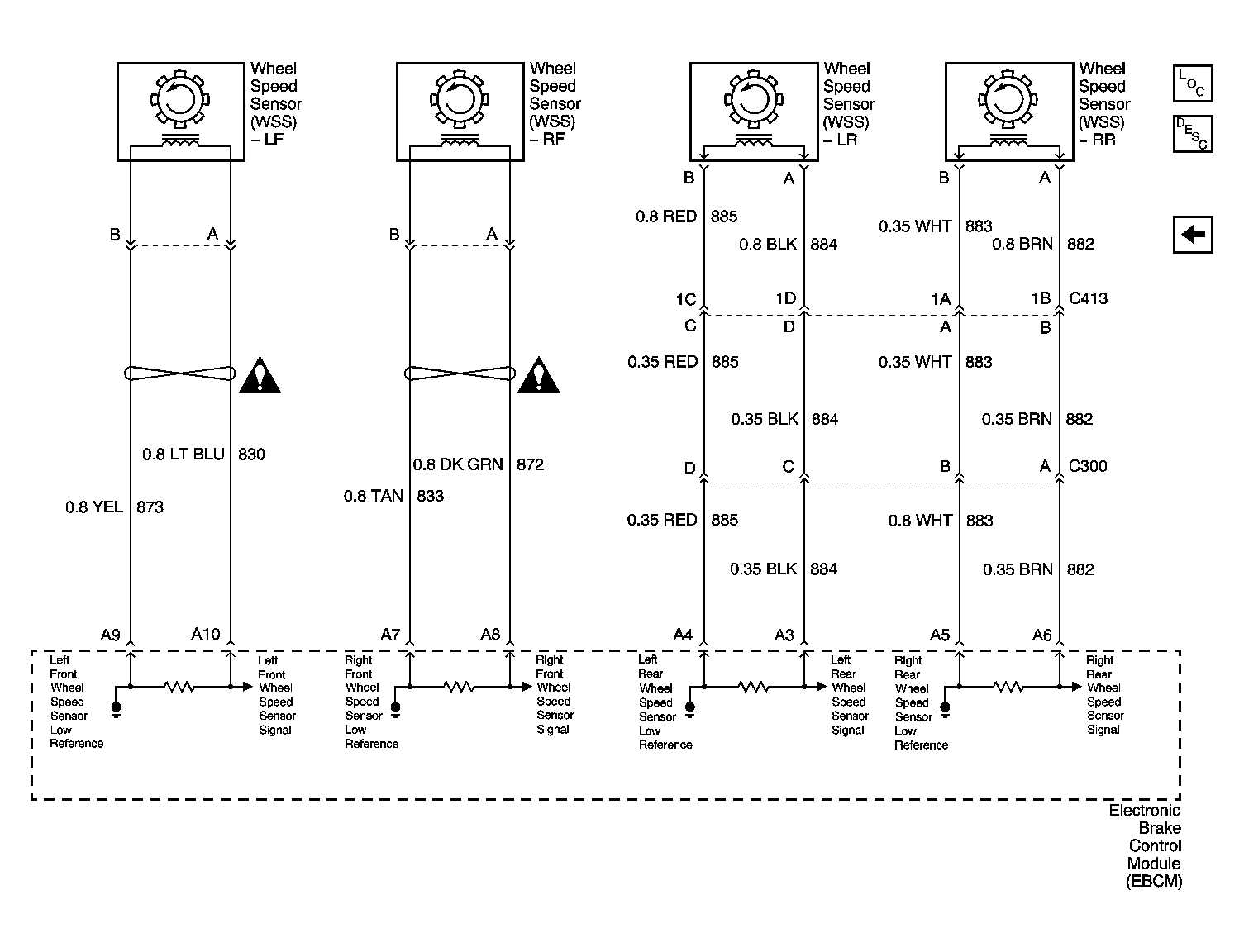

Fig 2: Wheel Speed Sensors

GM783330

Courtesy of GENERAL MOTORS CORP.
