Door Lock/Indicator Schematics
Door Lock/Indicator Schematics

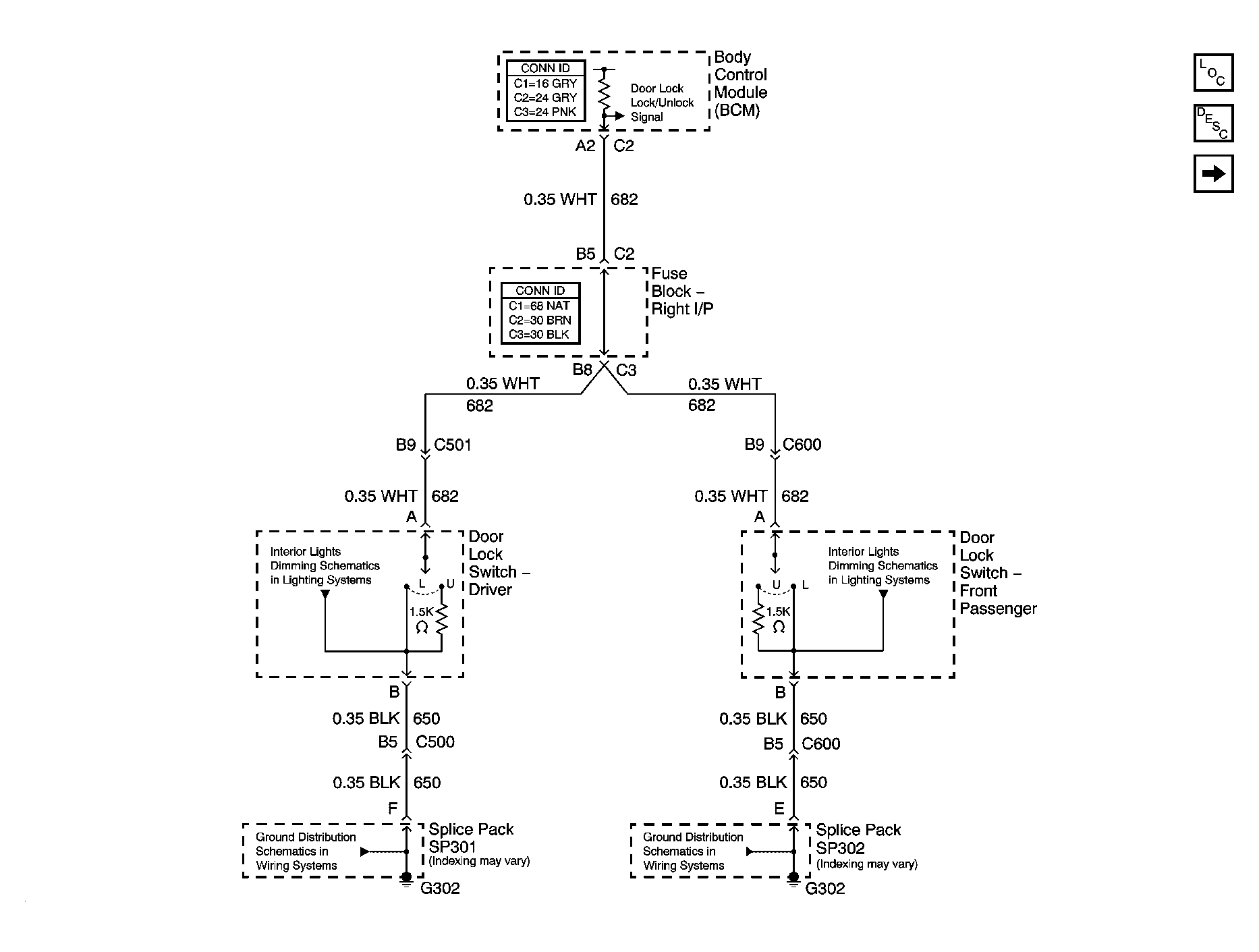

Fig 1: Switches
Courtesy of GENERAL MOTORS CORP.

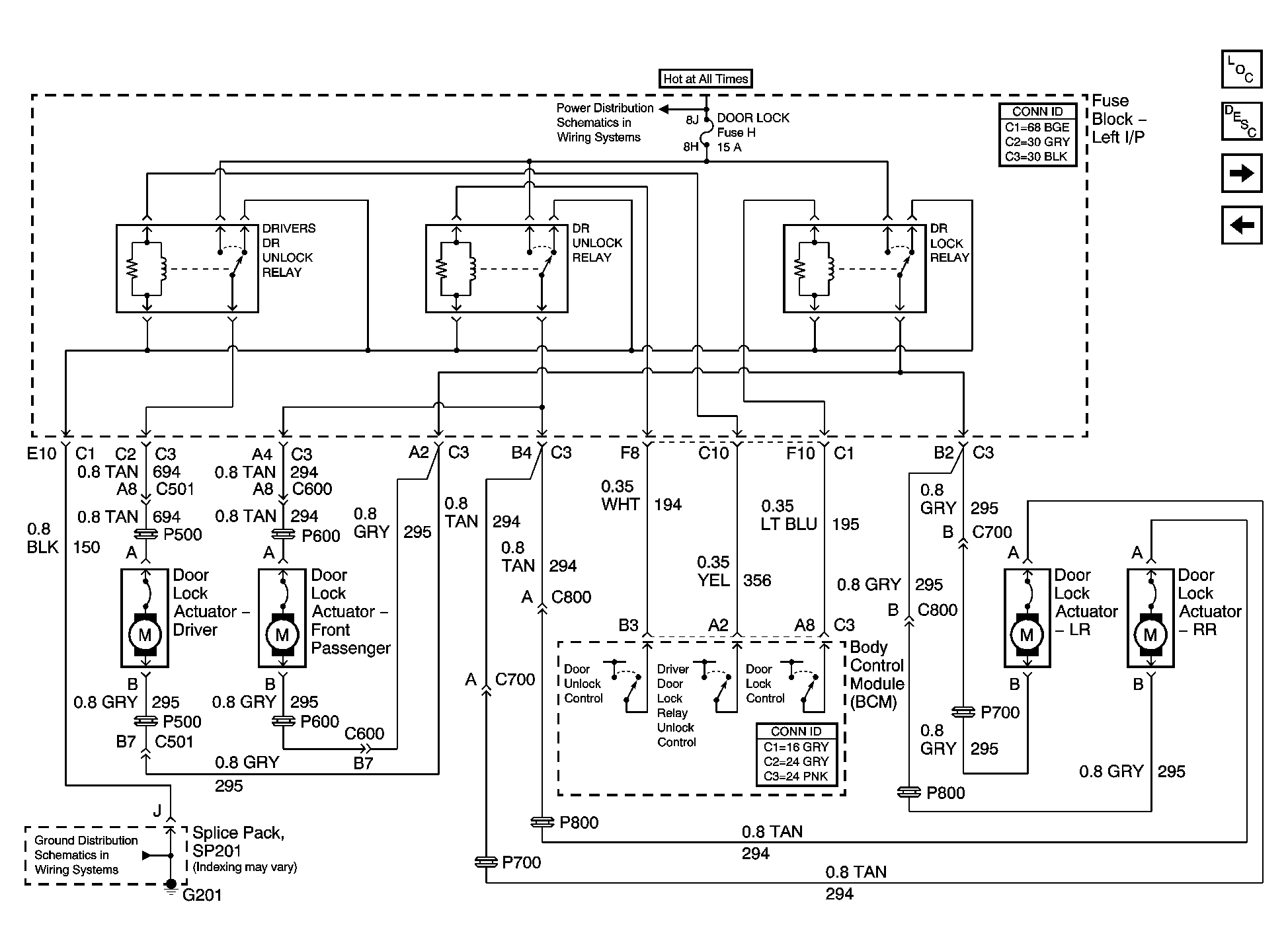

Fig 2: Actuators - with Remote Function Actuation
Courtesy of GENERAL MOTORS CORP.

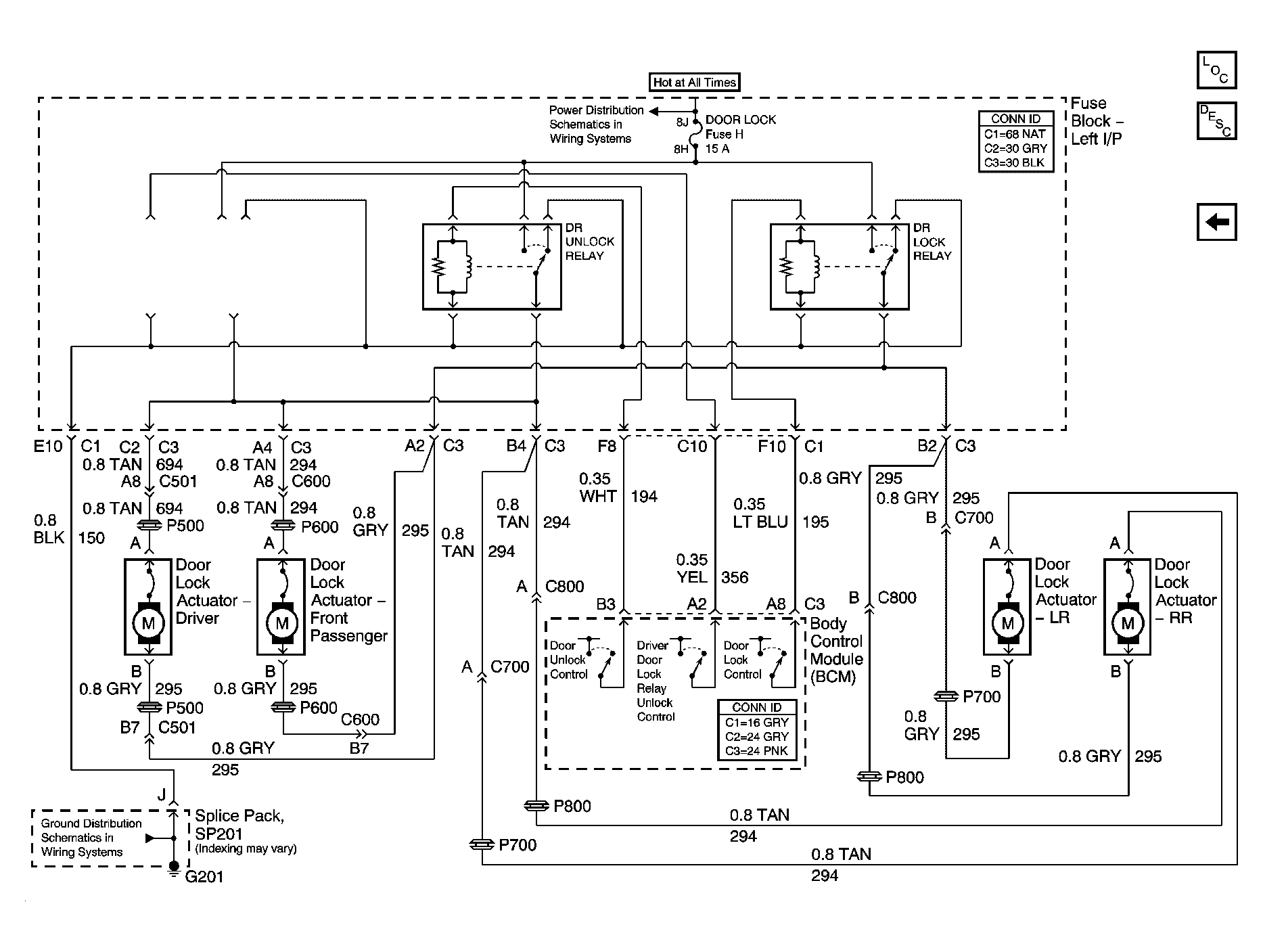

Fig 3: Actuators - without Remote Function Actuation
Courtesy of GENERAL MOTORS CORP.

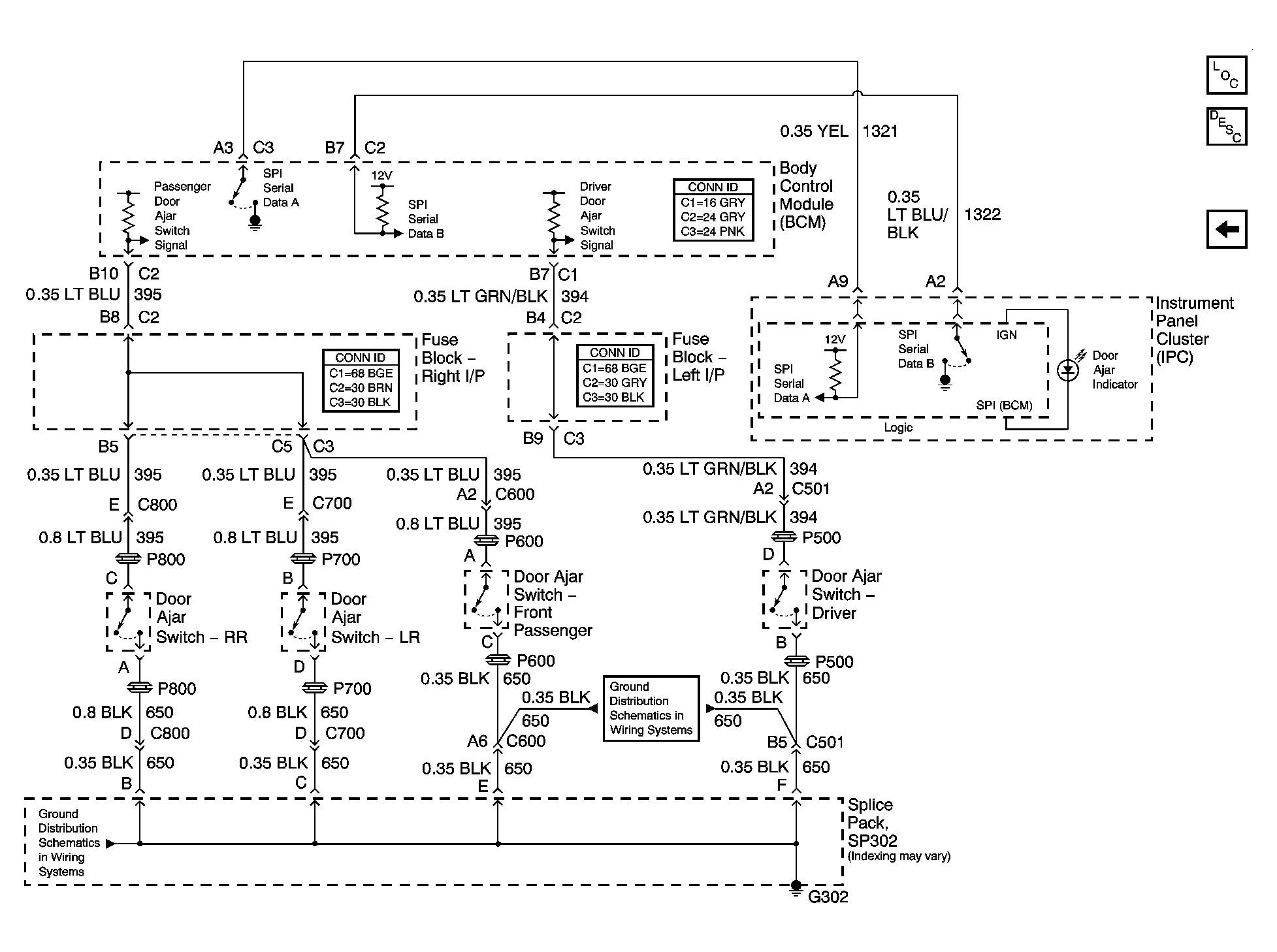

Fig 4: Door Ajar Switches
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
