Lighting Systems Component Views

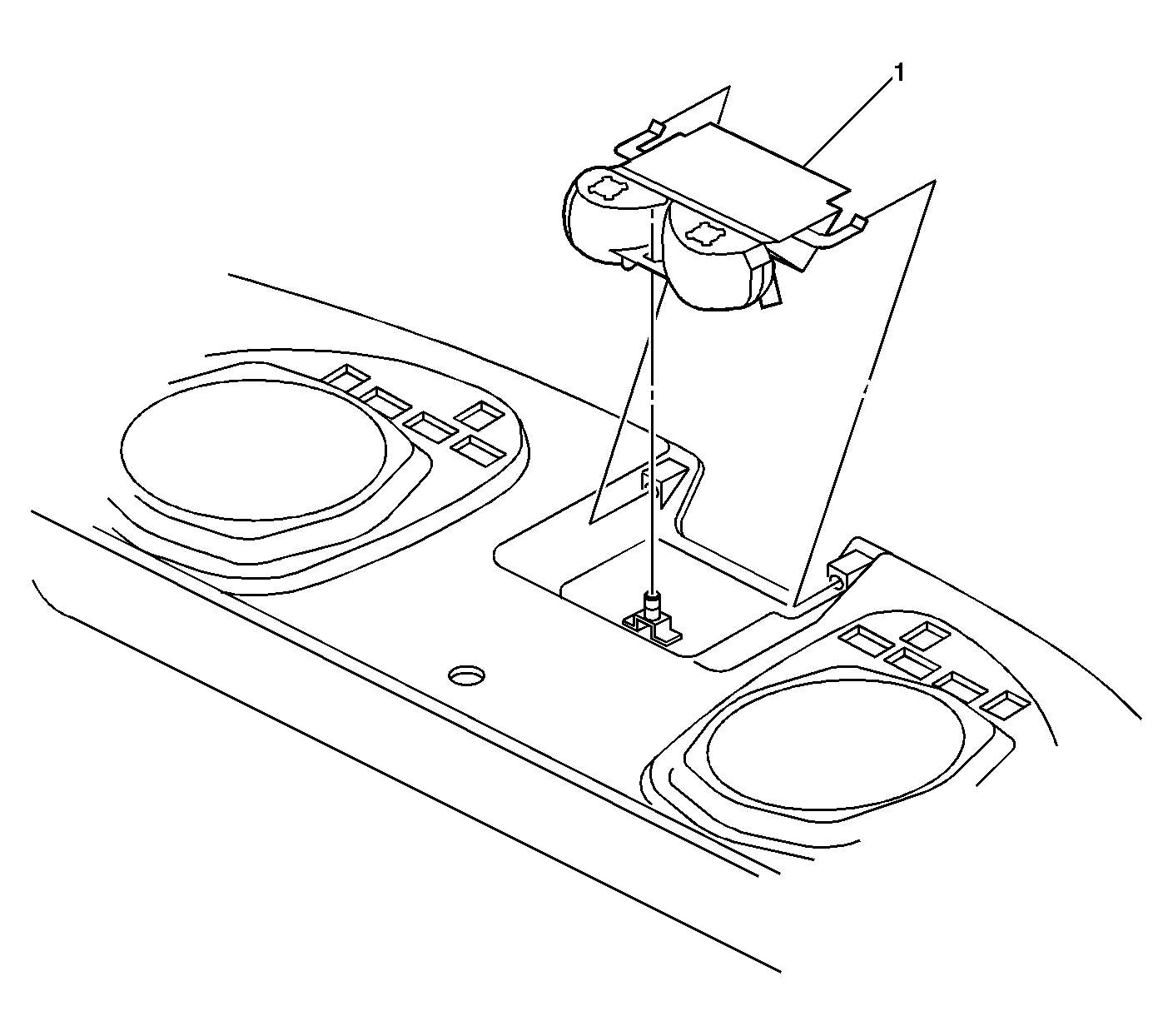

Fig 1: Rear Package Shelf Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Courtesy Lamp

Fig 2: I/P Compartment Lamp/Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Compartment Lamp/Switch
2	I/P Compartment Lamp/Switch Connector

Fig 3: Under the Right Side of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor Resistor Assembly Connector
2	Blower Motor
3	Right I/P Fuse Block
4	Inflatable Restraint I/P Module Connector
5	SP204, G204 (prior to 2004 model year)
6	SP203, G203
7	Courtesy Lamp - Right
8	Body Control Module (BCM)

Fig 4: Left Side of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Column Assembly
3	Turn Signal/Multifunction Switch Connectors

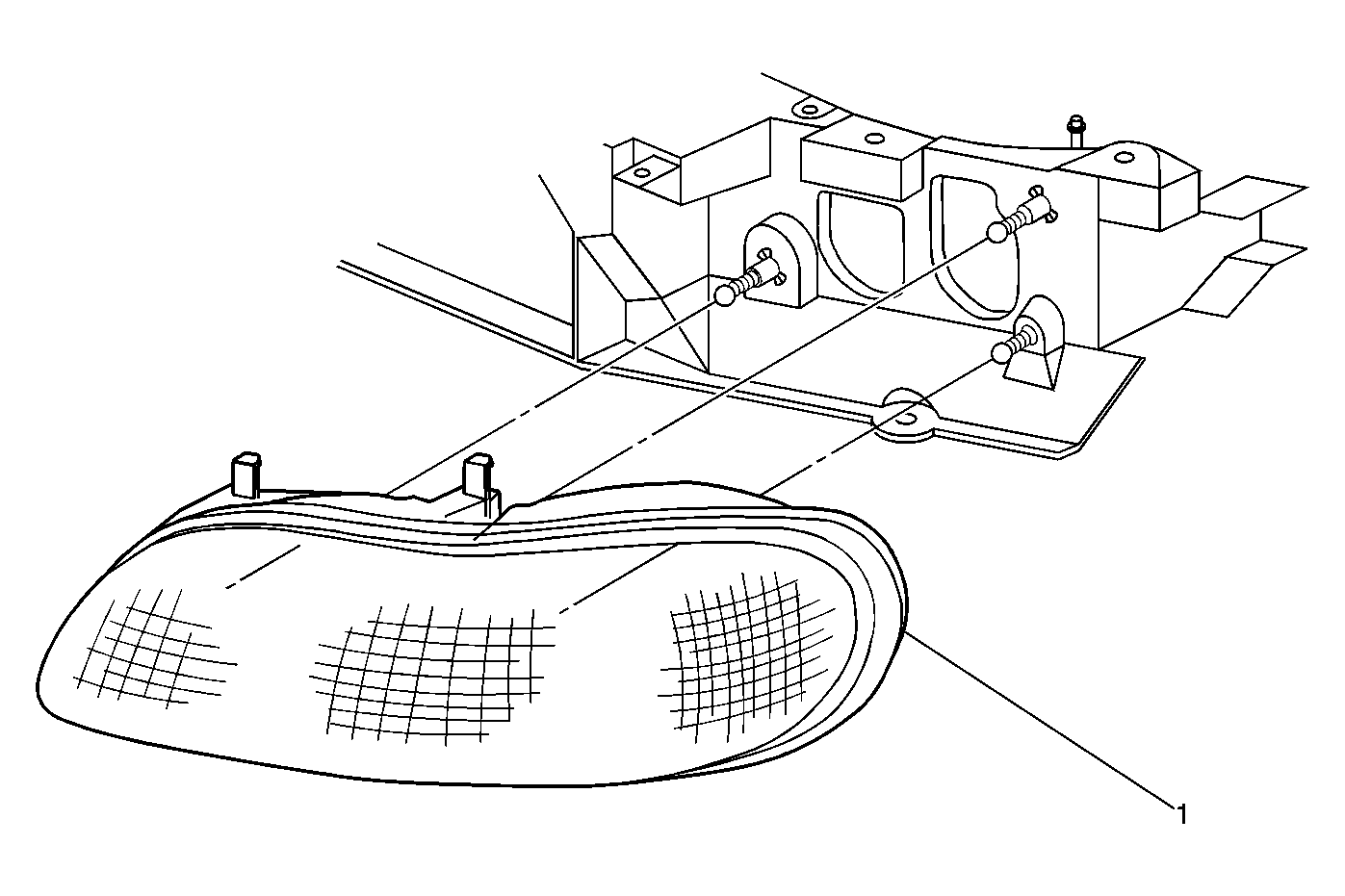

Fig 5: In Front of the Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Assembly - Left (Right Similar)

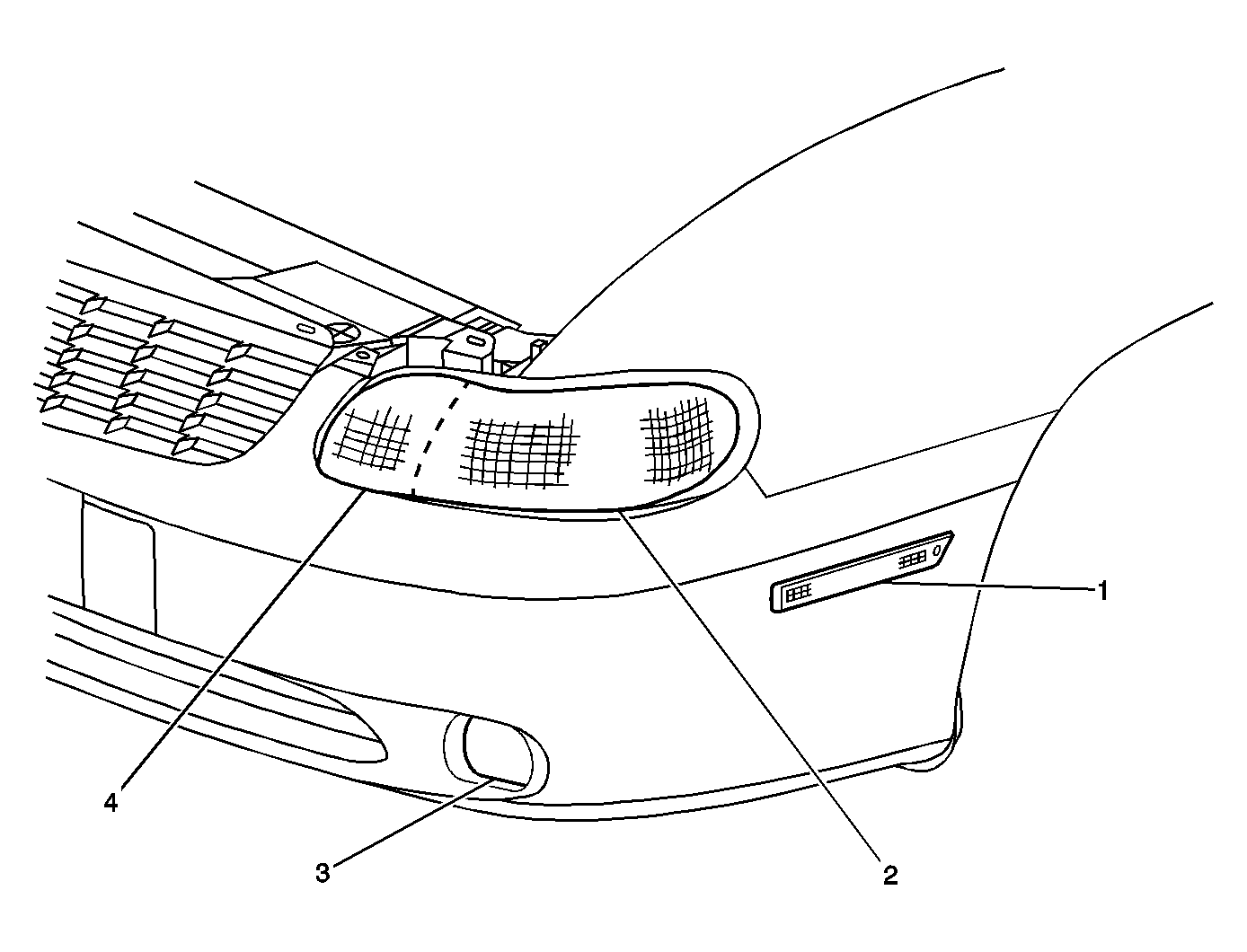

Fig 6: Left Front of Fascia, Right Front Similar Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - LF, RF Similar
2	Lamp Assembly - LF, RF Similar
3	Fog Lamp - LF, RF Similar (T96)
4	Park/Turn Signal Lamp - LF, RF Similar

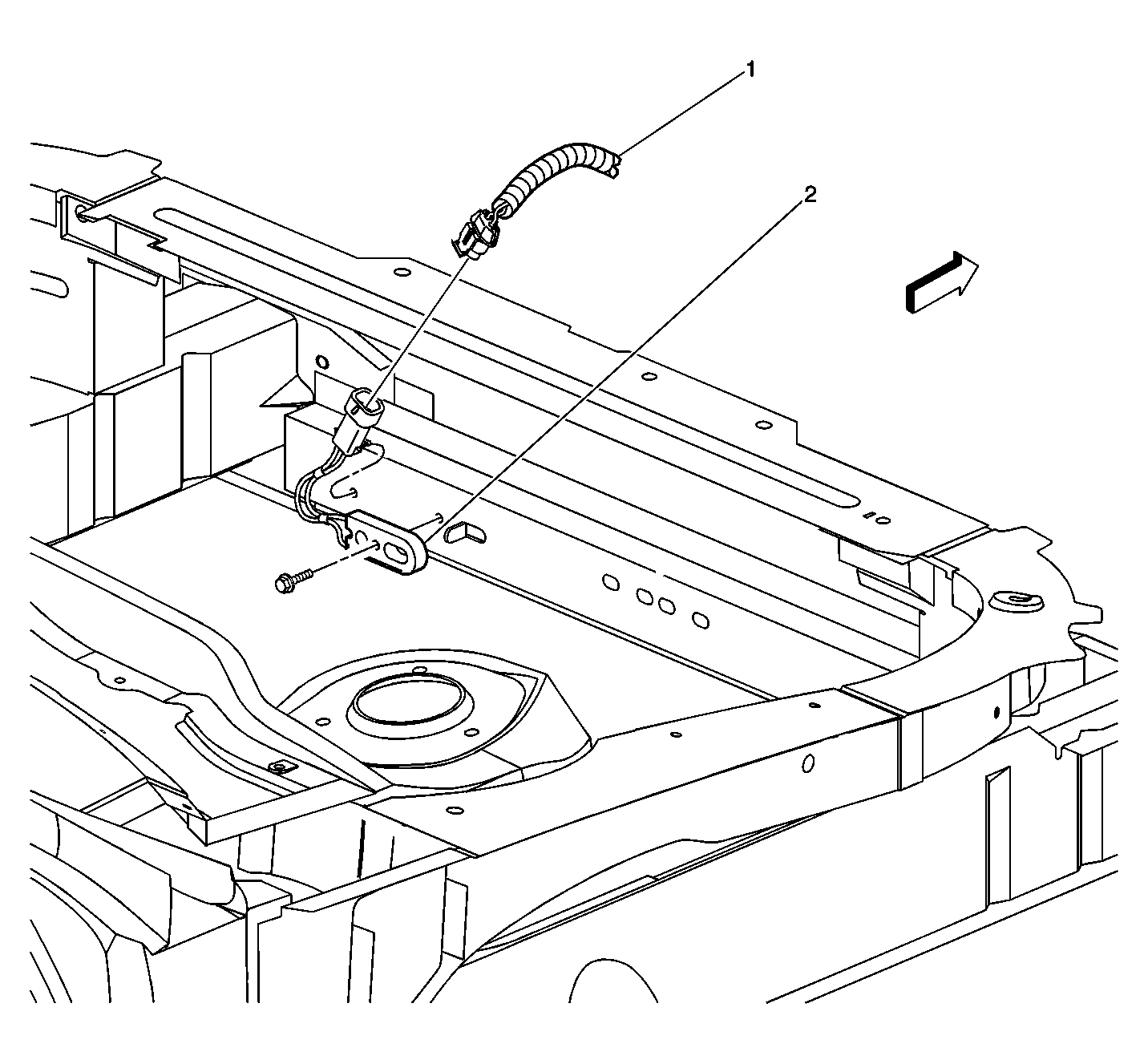

Fig 7: Rear of Front Impact Bar Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Forward Lamp Harness
2	Daytime Running Lamps (DRL) Resistor

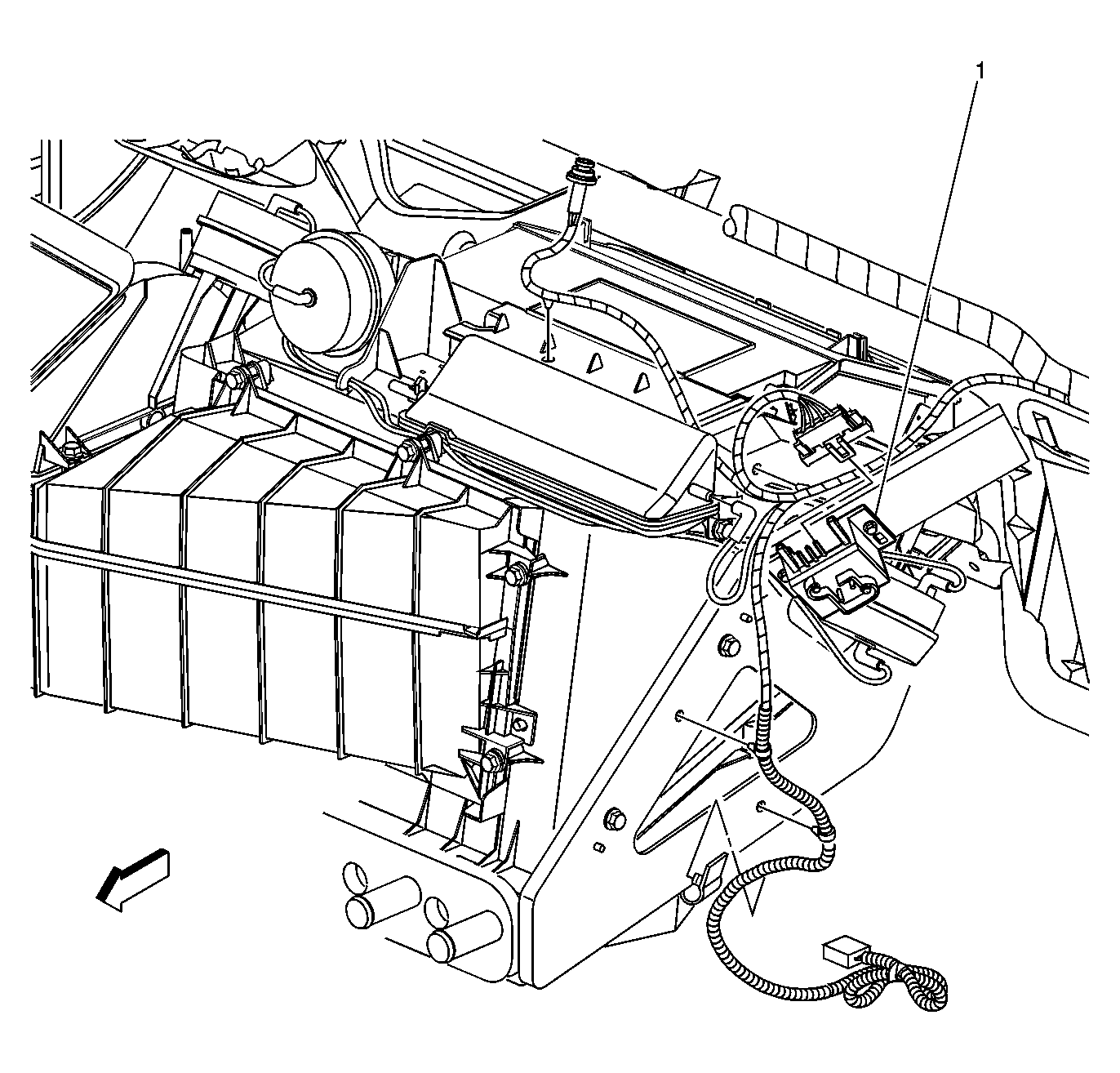

Fig 8: Rear of the Engine Compartment, Front of Dash Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Dimming Module

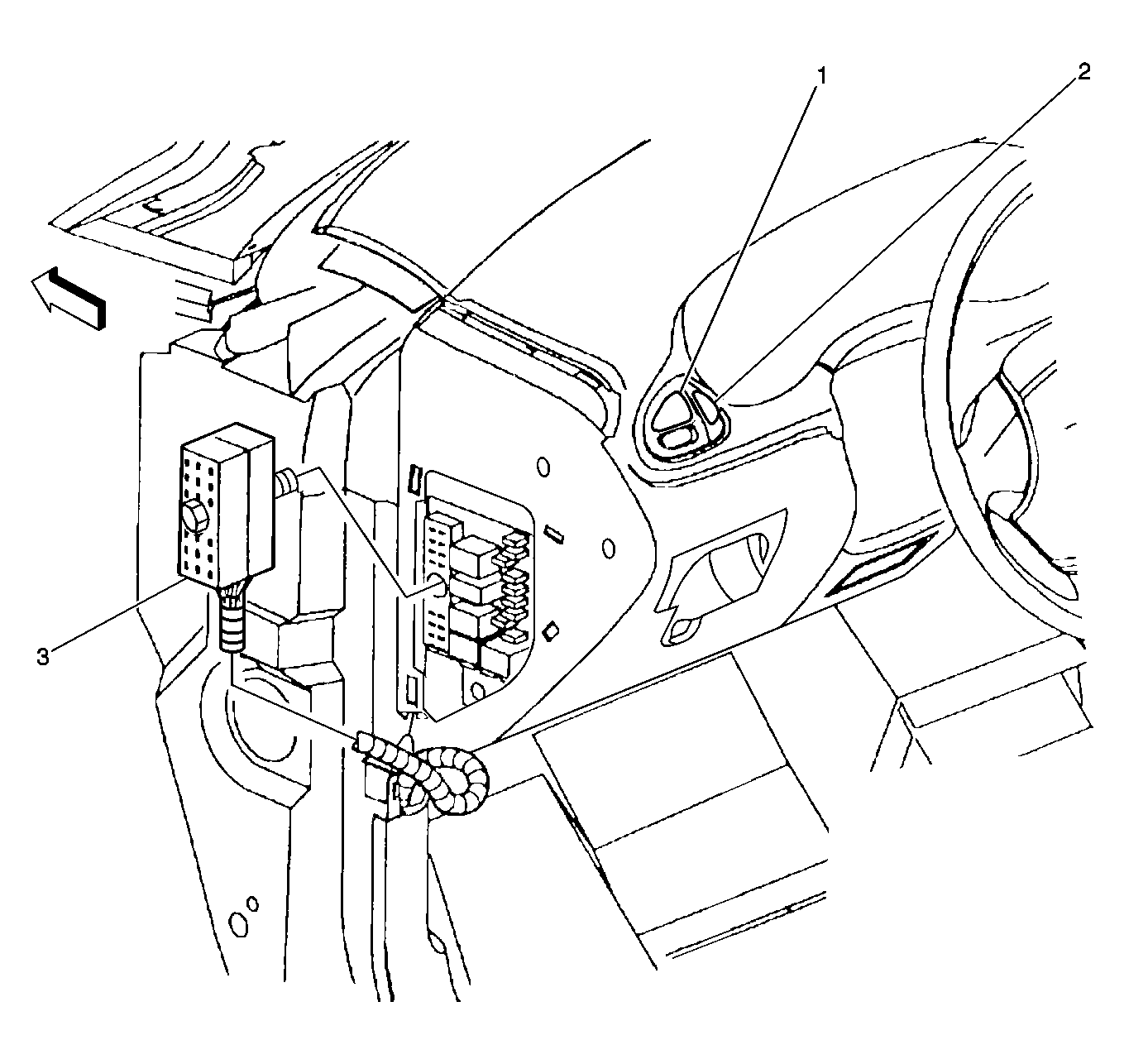

Fig 9: Left I/P Fuse Block Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fog Lamp Switch
2	I/P Dimmer Switch
3	I/P Fuse Block Connector, Left Side

Fig 10: Top of the Dash Trim Pad Component View

Courtesy of GENERAL MOTORS CORP.

Fig 11: Center of the I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hazard Switch

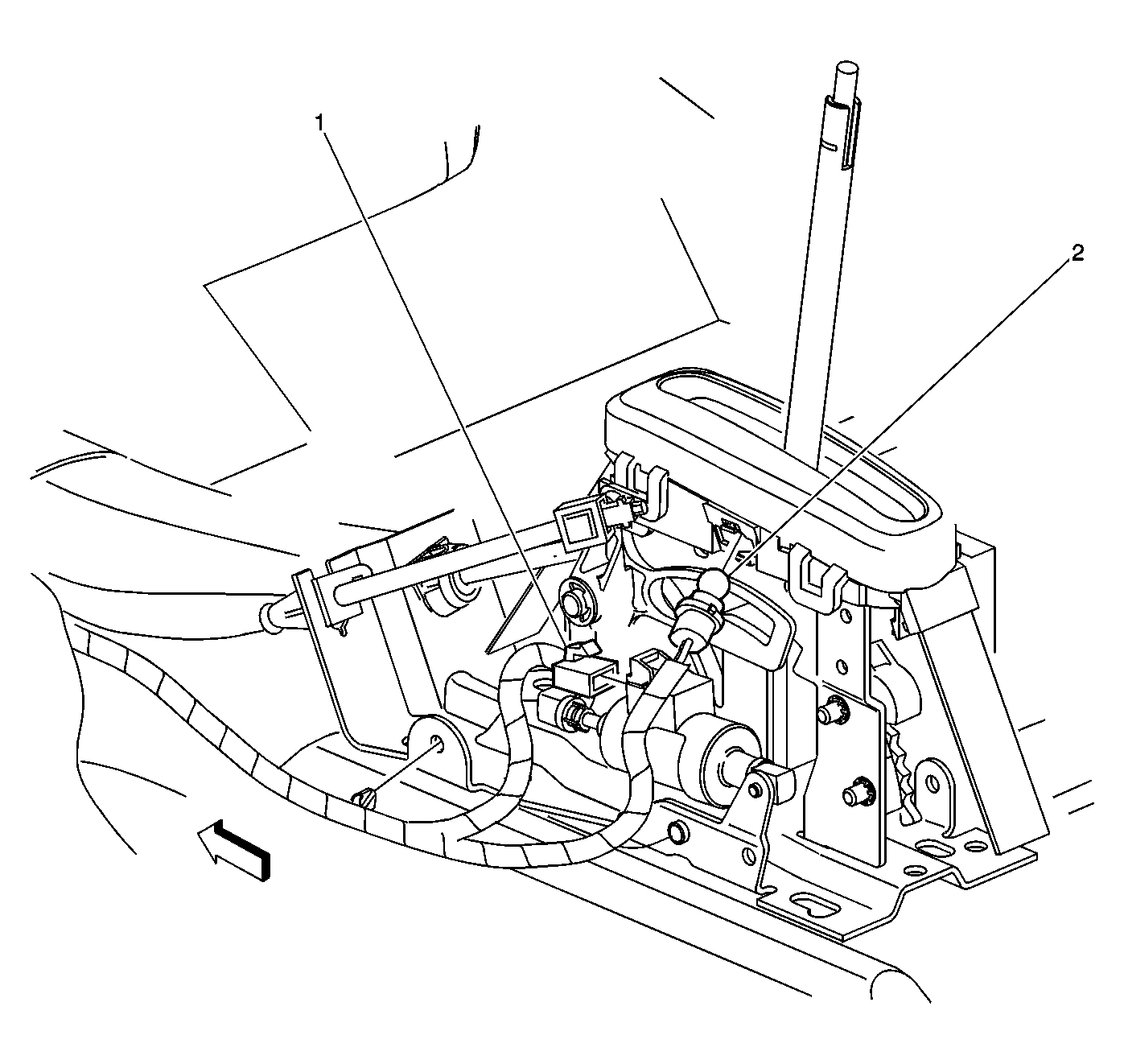

Fig 12: Under the Center Console Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Transmission Shift Interlock (BTSI) Solenoid
2	Transaxle Shift Indicator Lamp

Fig 13: Headliner Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner Harness
2	Rear View Mirror Reading Lamps Connector
3	Dome Lamp Connector

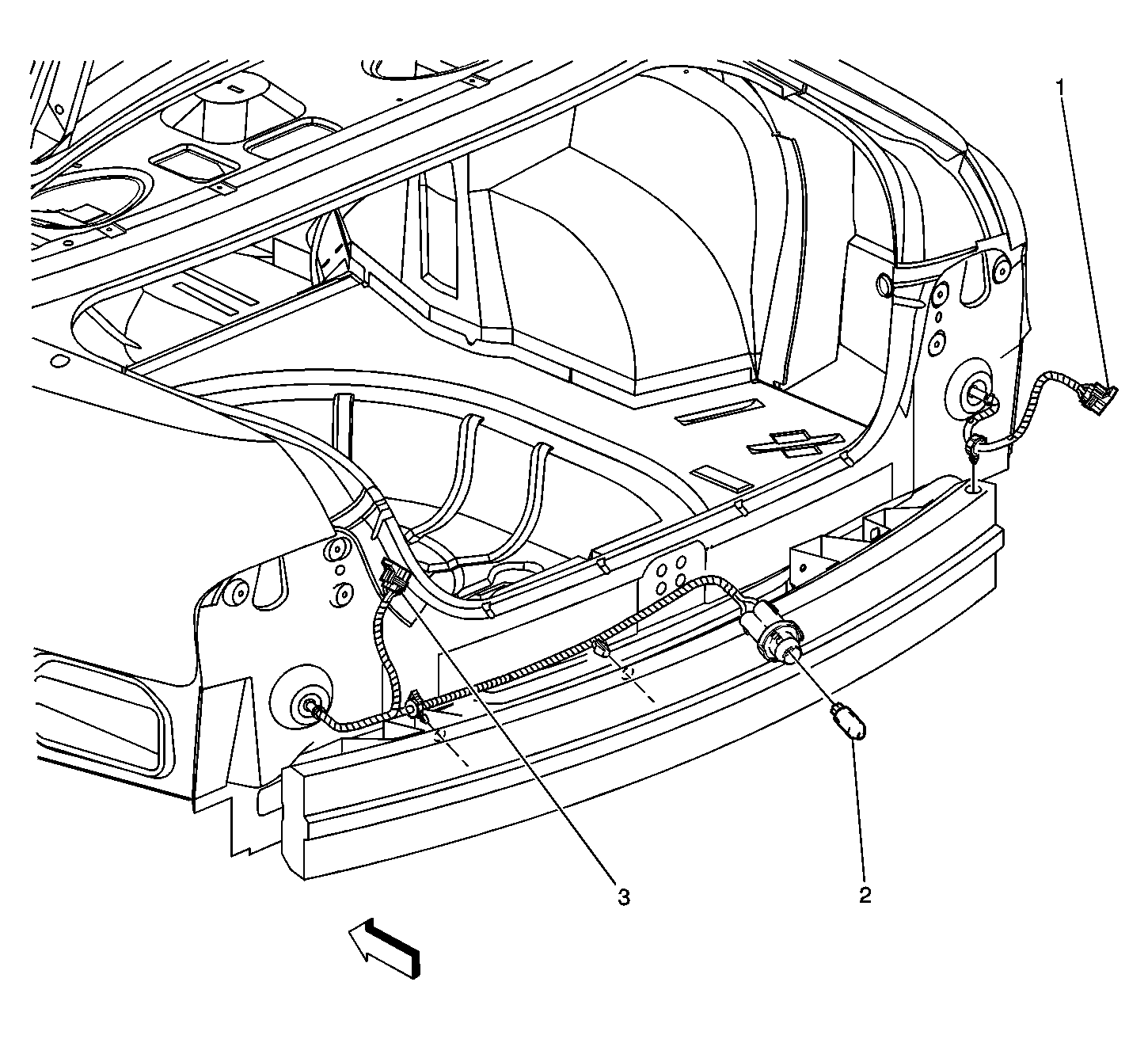

Fig 14: Rear Impact Bar Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Stop and Turn Signal Lamp Connector - Right
2	License Lamp
3	Tail/Stop and Turn Signal Lamp Connector - Left

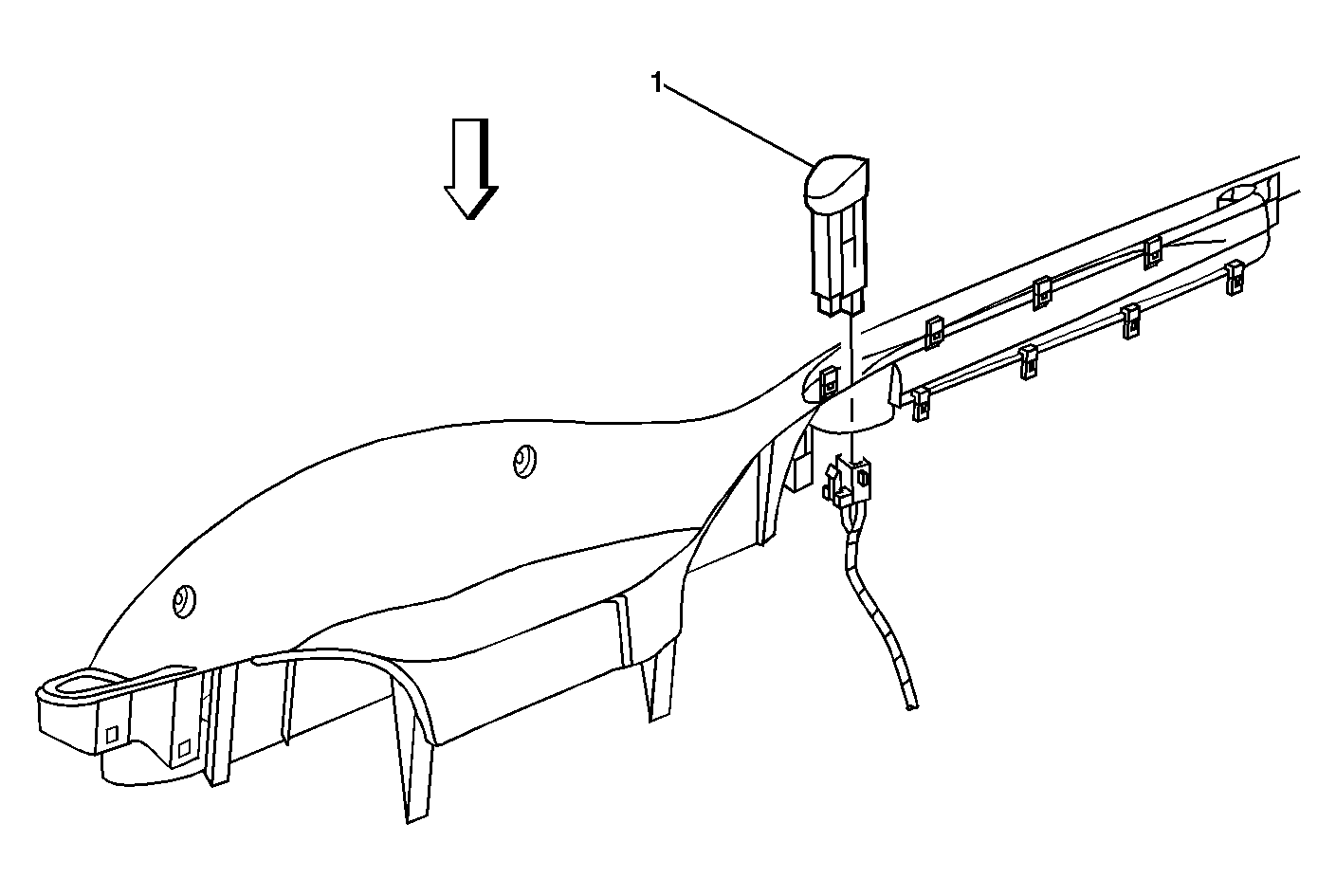

Fig 15: Center High Mounted Stop Lamp Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL) Assembly

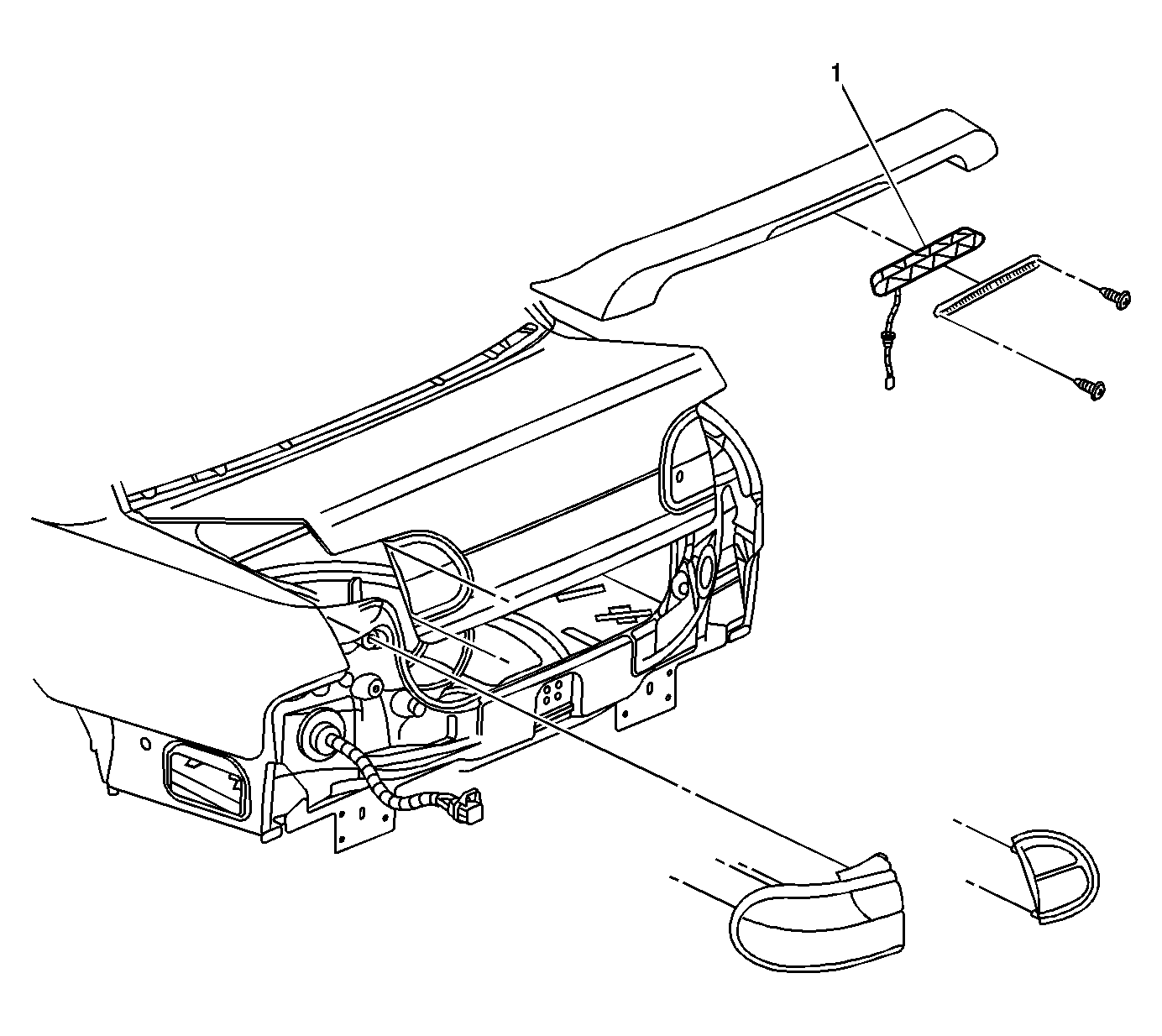

Fig 16: Center High Mounted Stop Lamp - Spoiler Mounted Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL) - Spoiler Mounted
