Installation Procedure

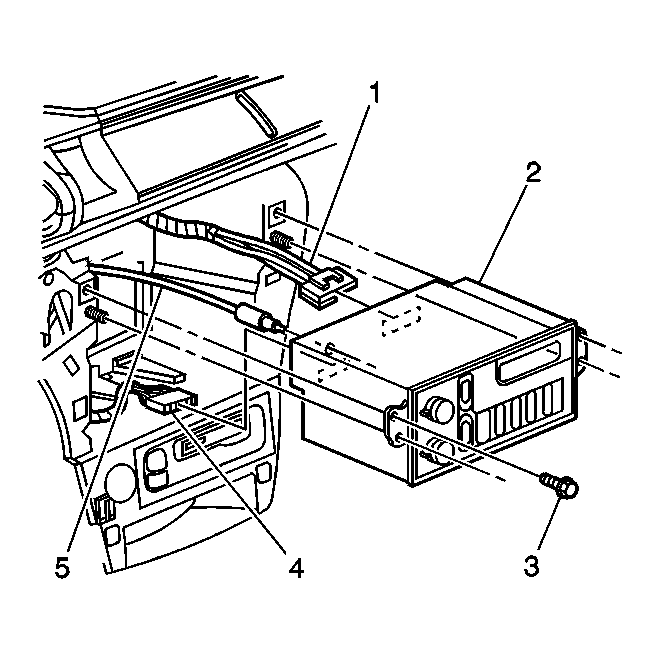

    Fig 1: View of Radio & I/P Accessory Trim Plate
    GM443800Courtesy of GENERAL MOTORS CORP.
  1. Connect the antenna lead (5) to the radio (2).
  2. Connect the electrical connectors (1,4) to the radio (2).
  3. Install the radio (2) in the I/P.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the radio mounting bolts (3) to the radio (2).

    Tighten:  Tighten the bolts to 2.3 N.m (20 lb in).

  5. Install the I/P accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory in Instrument Panel, Gages, and Console.
