Body Control System Schematics

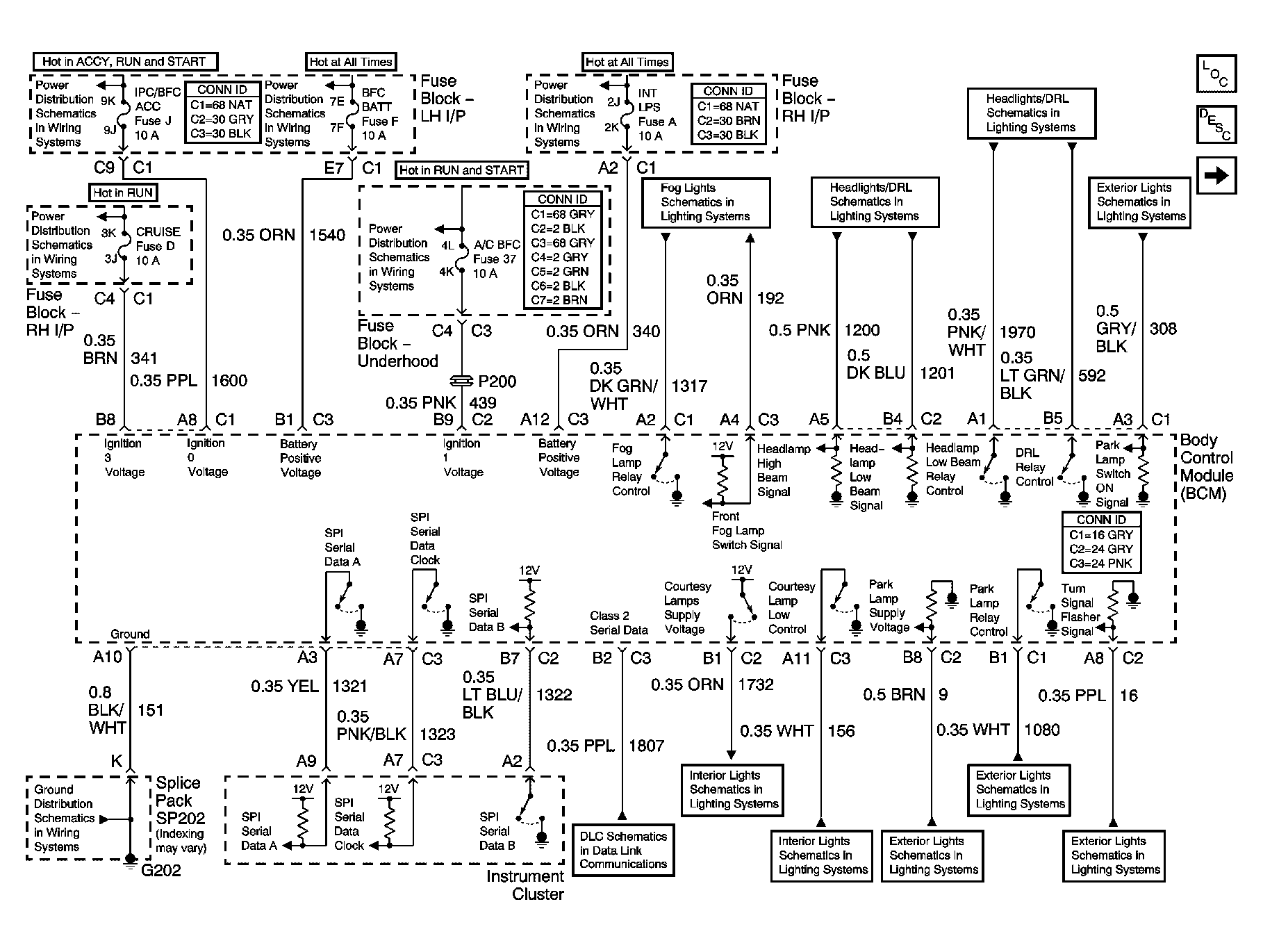

Fig 1: Powers, Grounds, and Communication Diagram

GM782687

Courtesy of GENERAL MOTORS CORP.

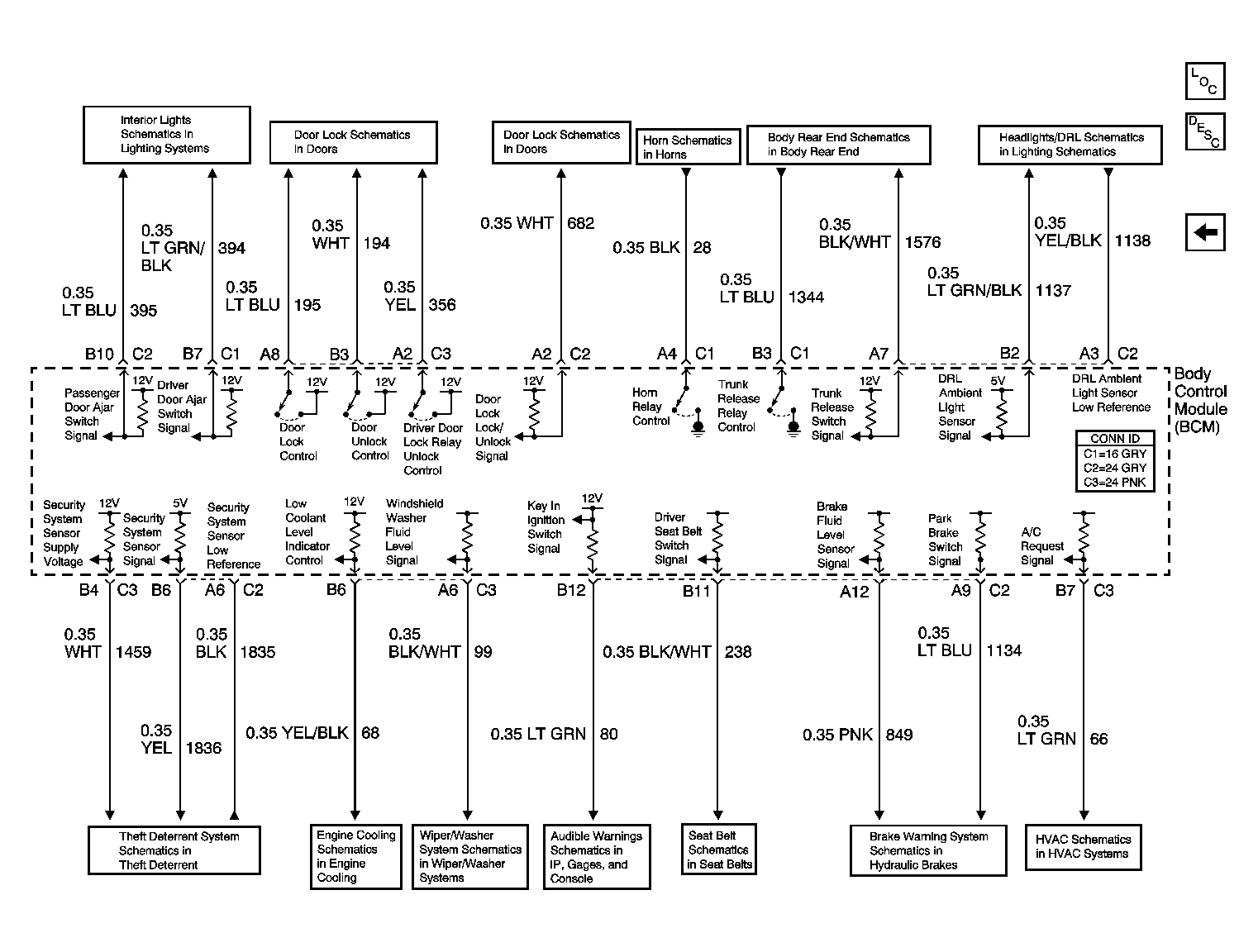

Fig 2: Controls Diagram

GM782689

Courtesy of GENERAL MOTORS CORP.
