Splice Pack Connector End Views: SP103

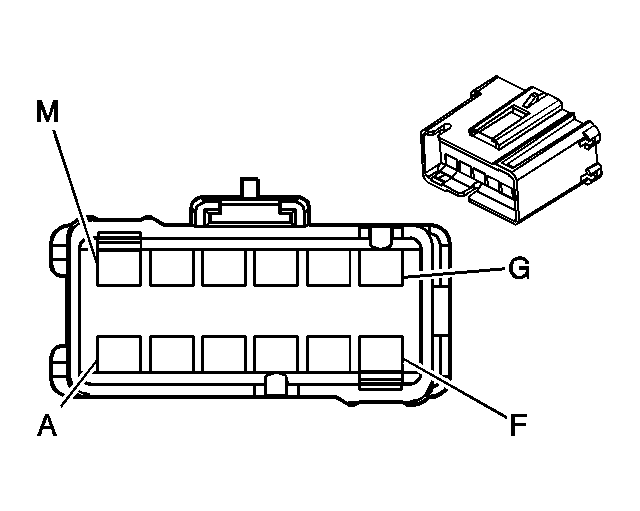

Splice Pack, SP103 (Indexing May Vary) Connector End View

GM791094Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305297
  • 12Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A BLK 450 Ground
B - - Not Used
C BLK 450 Ground
D - - Not Used
E BLK 450 Ground
F BLK 450 Ground
G - - Not Used
H BLK 450 Ground
J BLK 450 Ground
K BLK 450 Ground
L-M - - Not Used
