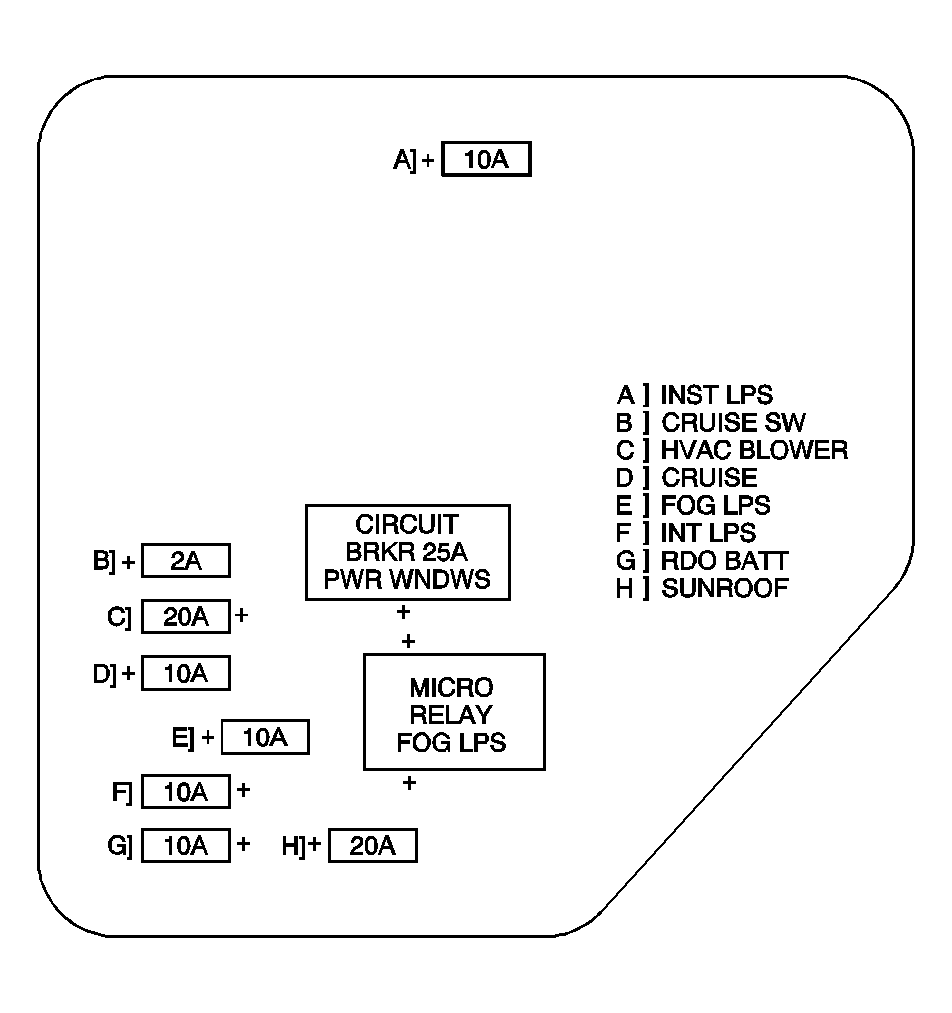

Fuse Block - Left I/P, C3

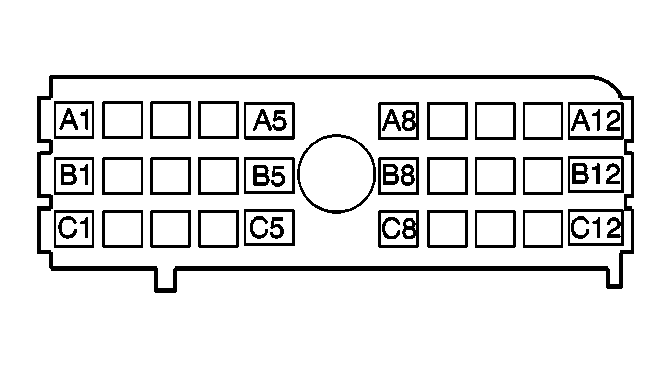

Fuse Block - Left I/P, C3 Identification View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A1 | ORN | 140 | Battery Positive Voltage |
| A2 | GRY | 295 | Door Lock Motor Lock |
| GRY | 295 | Door Lock Motor Lock | |
| A3 | - | - | Not Used |
| A4 | TAN | 294 | Door Lock Motor Unlock |
| A5 | - | - | Not Used |
| A8 | ORN | 540 | Battery Positive Voltage |
| A9 | BLK/WHT | 56 | Trunk Release Motor (Control or Supply Voltage) |
| A10 | - | - | Not Used |
| A11 | ORN | 1040 | Battery Positive Voltage |
| A12 | - | - | Not Used |
| B1 | PPL | 420 | TCC Brake Switch Signal |
| B2 | GRY | 295 | Door Lock Motor Lock |
| GRY | 295 | Door Lock Motor Lock | |
| B3 | - | - | Not Used |
| B4 | TAN | 294 | Door Lock Motor Unlock |
| TAN | 294 | Door Lock Motor Unlock | |
| B5 | - | - | Not Used |
| B8 | TAN | 201 | Left Front Speaker Output + |
| B9 | LT GRN/ BLK |
394 | Driver Door Ajar Switch Signal |
| B10 | ORN | 1840 | Battery Positive Voltage |
| B11 | - | - | Not Used |
| B12 | GRY | 120 | Fuel Pump Supply Voltage |
| C1 | LT BLU | 1134 | Park Brake Switch Signal |
| C2 | TAN | 694 | Not Used |
| C3 | ORN | 1732 | Courtesy Lamps Supply Voltage |
| C4 | ORN | 1732 | Courtesy Lamps Supply Voltage |
| ORN | 1732 | Courtesy Lamps Supply Voltage | |
| C5 | - | - | Not Used |
| C8 | GRY | 118 | Left front Speaker Output + |
| C9 | DK GRN/ WHT |
1135 | A/T Shift Lock Solenoid Supply Voltage |
| C10 | WHT | 156 | Courtesy Lamp Low Control |
| C11 | BRN | 241 | Ignition 3 Voltage |
| C12 | BLK | 293 | Rear Defogger Element Supply Voltage |
