Fuse Block - Left I/P, C2

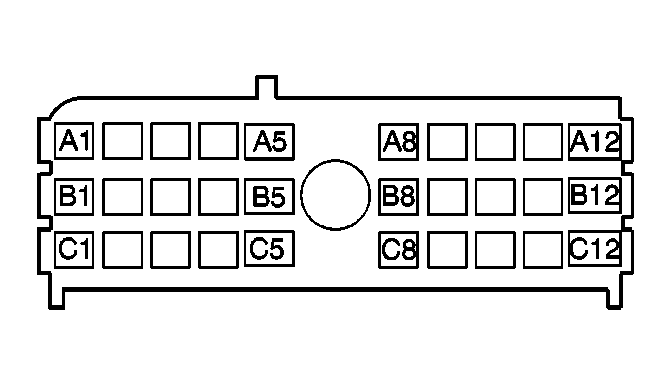

Fuse Block - Left I/P, C2 Identification View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A1-A12 | - | - | Not Used |
| B1 | GRY | 120 | Fuel Pump Supply Voltage (Prior to 2004 Model Year) |
| B2-B3 | - | - | Not Used |
| B4 | LT GRN/ BLK |
394 | Driver Door Ajar Switch Signal (Prior to 2004 Model Year) |
| B5 | TAN | 201 | Left Front Speaker Output + (Prior to 2004 Model Year) |
| B8-B11 | - | - | Not Used |
| B12 | PPL | 420 | TCC Brake Switch Signal |
| C1 | PPL | 293 | Rear Defogger Element Supply Voltage |
| C2 | BRN | 241 | Ignition 3 Voltage |
| C3 | - | - | Not Used |
| C4 | DK GRN/ WHT |
1135 | A/T Shift Lock Solenoid Supply Voltage |
| C5 | GRY | 118 | Left Front Speaker Output - |
| C8 | - | - | Not Used |
| C9 | ORN | 1732 | Courtesy Lamp Supply Voltage |
| C10-C11 | - | - | Not Used |
| C12 | LT BLU | 1134 | Park Brake Switch Signal |
