Engine Block - Bottom View

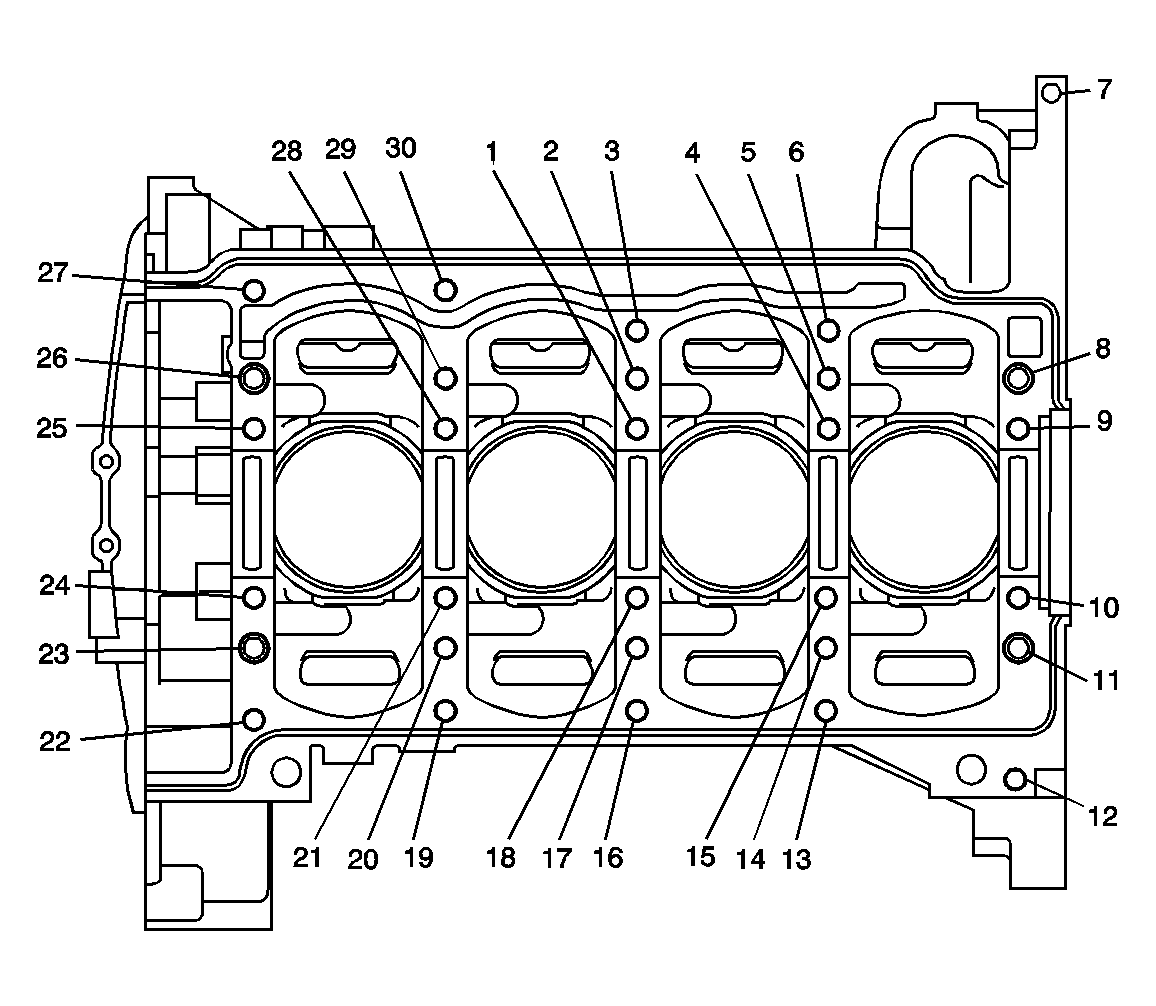

Fig 1: Engine Block - Bottom View
GM524540Courtesy of GENERAL MOTORS CORP.
Engine Block - Bottom View

Service Call Out Thread Size Insert Drill Counterbore Tool Tap Driver Drill Depth (Maximum) Tap Depth (Maximum)
J 42385- MM (IN) MM (IN)
1 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
2 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
3 M8 x 1.25 210 206 207 208 209 28 1.102 22 0.87
4 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
5 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
6 M8 x 1.25 210 206 207 208 209 28 1.102 22 0.87
7 M8 x 1.25 210 206 207 208 209 28 1.102 22 0.87
8 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
9 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
10 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
11 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
12 M8 x 1.25 210 206 207 208 209 28 1.102 22 0.87
13 M8 x 1.25 210 206 207 208 209 28 1.102 22 0.87
14 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
15 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
16 M8 x 1.25 210 206 207 208 209 28 1.102 22 0.87
17 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
18 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
19 M8 x 1.25 210 206 207 208 209 28 1.102 22 0.87
20 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
21 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
22 M8 x 1.25 210 206 207 208 209 28 1.102 22 0.87
23 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
24 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
25 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
26 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
27 M8 x 1.25 210 206 207 208 209 28 1.102 22 0.87
28 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
29 M10 x 1.5 514 511 N/A 512 513 60 2.362 53.5 2.11
30 M8 x 1.25 210 206 207 208 209 28 1.102 22 0.87
