Power Door Systems Component Views

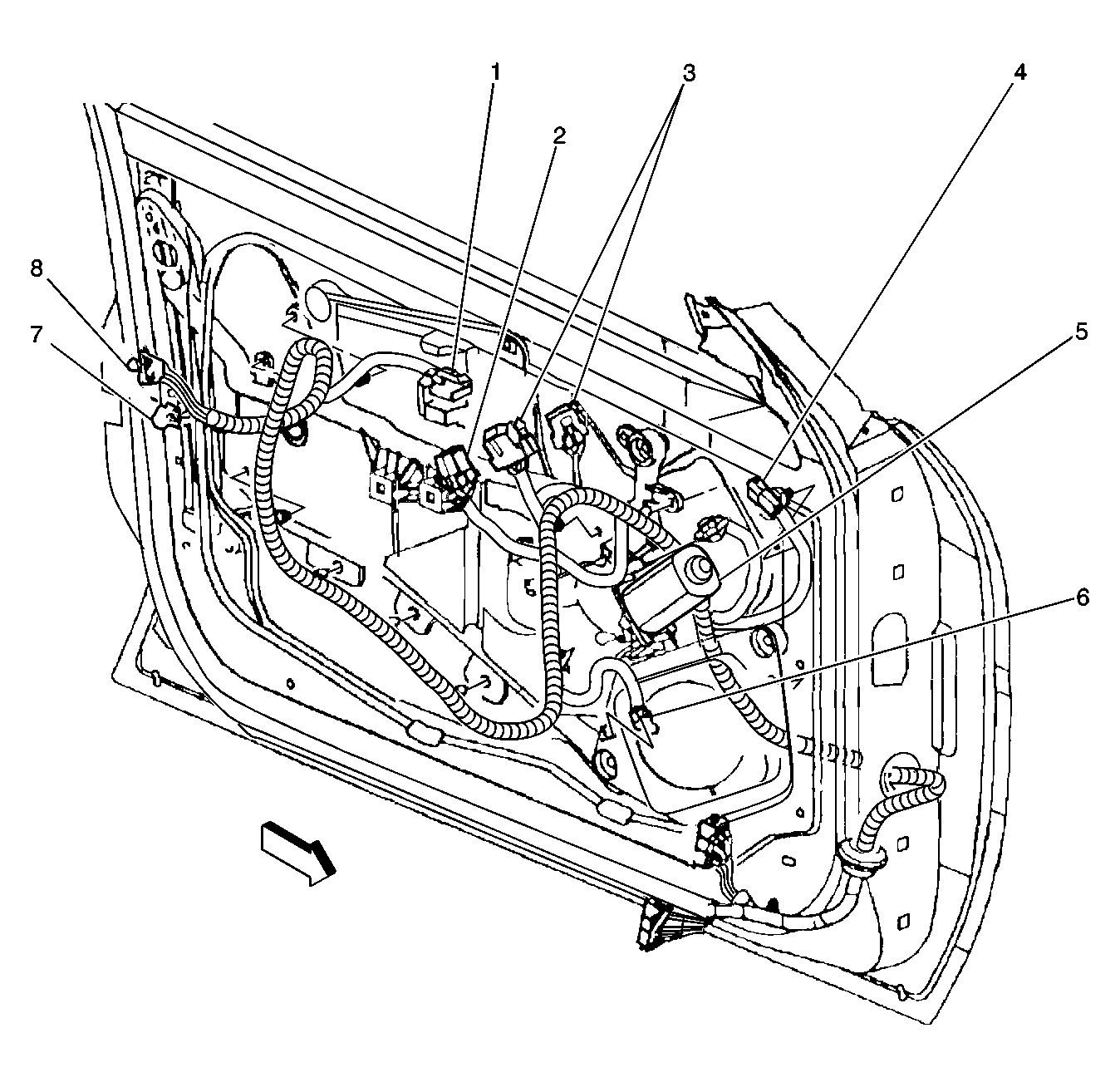

Fig 1: Drivers Door Component View

GM264442

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch Connector, Driver
2	Power Mirror Switch Connector
3	Power Window Switch Connectors, Driver
4	Outside Rearview Mirror Connector, Driver
5	Window Motor, Driver
6	Speaker Connector, LF
7	Door Lock Motor Connector, Driver
8	Door Ajar Switch Connector, Driver

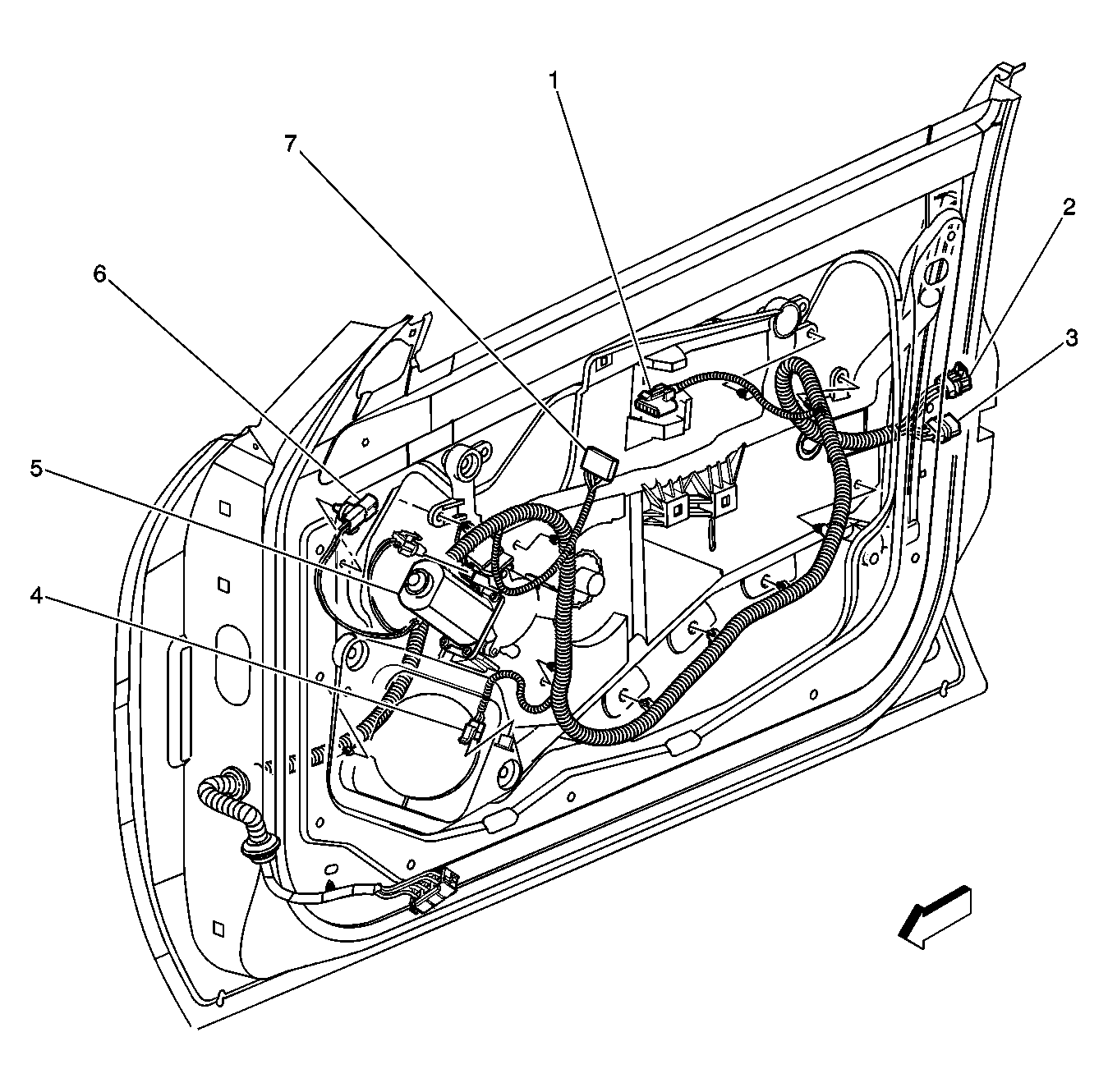

Fig 2: Front Passenger Door Component View

GM264443

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch Connector, Front Passenger
2	Door Ajar Switch Connector, Front Passenger
3	Door Lock Actuator Connector, Front Passenger
4	Speaker Connector, RF
5	Power Window Motor, Front Passenger
6	Outside Rearview Miror Connector, Front Passenger
7	Power Window Switch Connector, Front Passenger

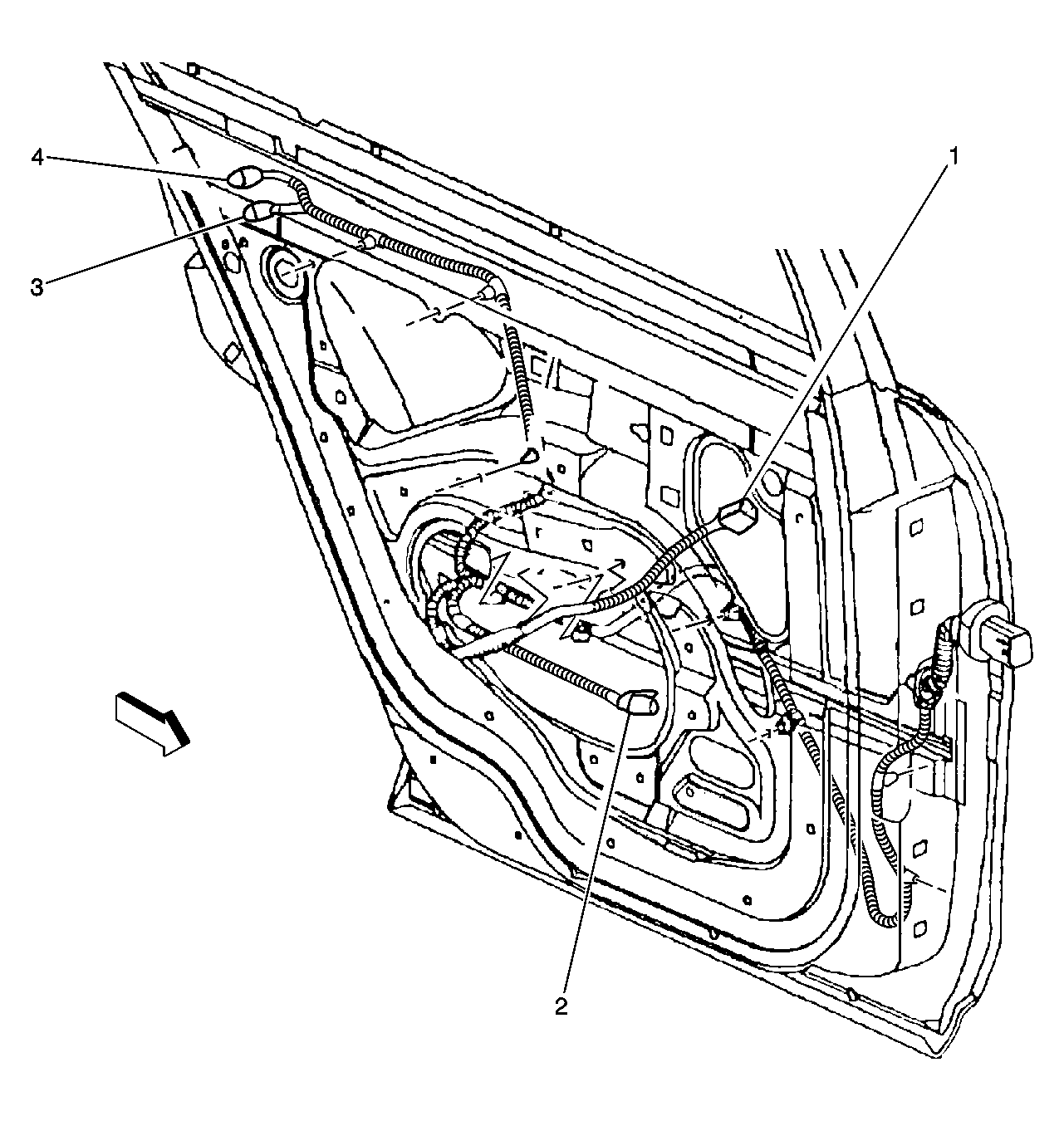

Fig 3: Left Rear Door (Right Rear Door Similar) Component View

GM264444

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch Connector, LR (Right Rear Door Similar)
2	Window Motor Connector, LR (Right Rear Door Similar)
3	Door Lock Actuator Connector, LR (Right Rear Door Similar)
4	Door Ajar Switch Connector, LR (Right Rear Door Similar)
