Wiper/Washer System Connector End Views

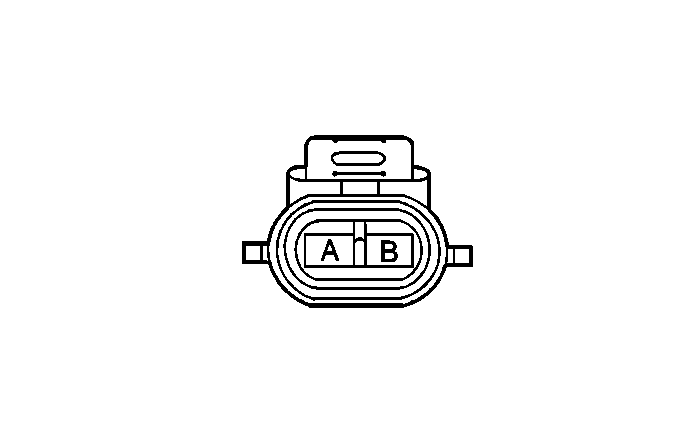

Windshield Washer Fluid Level Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12162195 2-Way F Metri-Pack 150 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK/WHT	99	Windshield Washer Fluid Level Signal
B	BLK	1350	Ground

Windshield Washer Fluid Pump Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052641 2-Way F Metri-Pack 150 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	RED	228	Windshield Washer Pump Control
B	BLK	1350	Ground

Windshield Wiper Motor Assembly Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12129126 5-Way F Metri-Pack Mixed Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	150	Ground
B	YEL	143	Accessory Voltage
C	PPL	92	Windshield Wiper Motor High Speed
D	DK GRN	113	Windshield Wiper Switch Signal 2
E	GRY	112	Windshield Wiper Switch Signal 1
F	-	-	Not Used

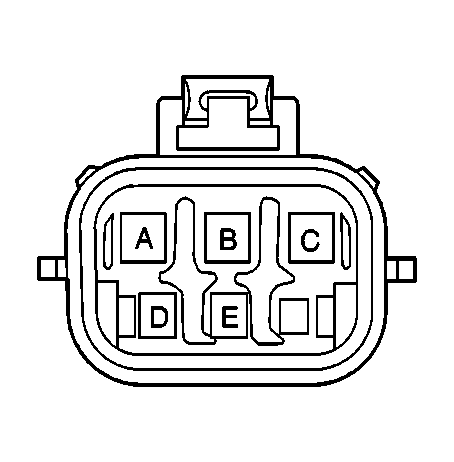

Turn Signal/ Multifunction Switch Connector End View, C3

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12041429 5-Way F Metri-Pack 280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	PPL	92	Windshield Wiper Motor High Speed
B	RED	228	Windshield Washer Pump Control
C	YEL	143	Accessory Voltage
D	GRY	112	Windshield Wiper Switch Signal 1
E	DK GRN	113	Windshield Wiper Switch Signal 2
