Wiper/Washer System Component Views

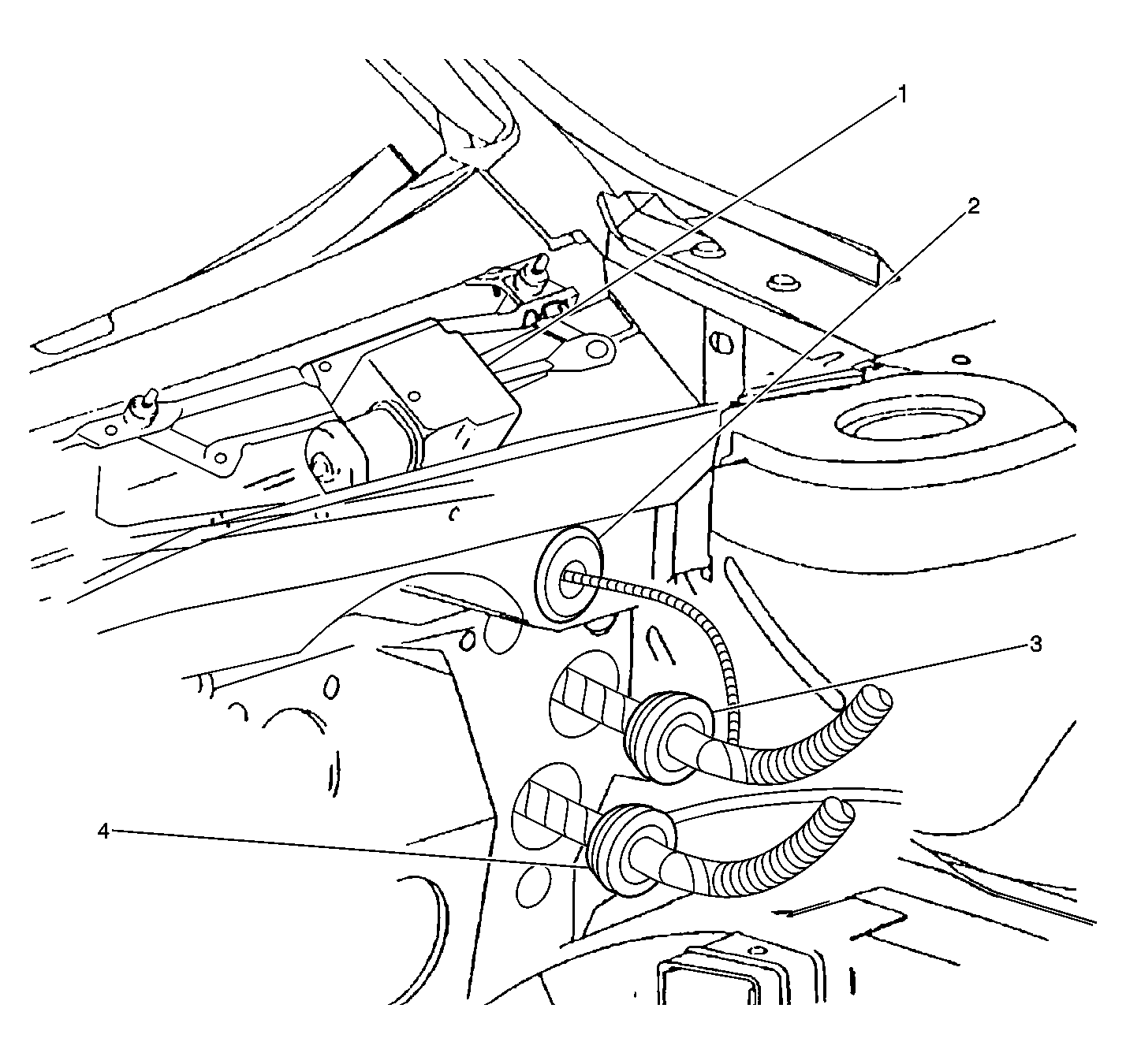

Fig 1: Rear Of The Engine Compartment Component View
GM264419Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Wiper Motor Assembly
2 P101
3 P200
4 P100

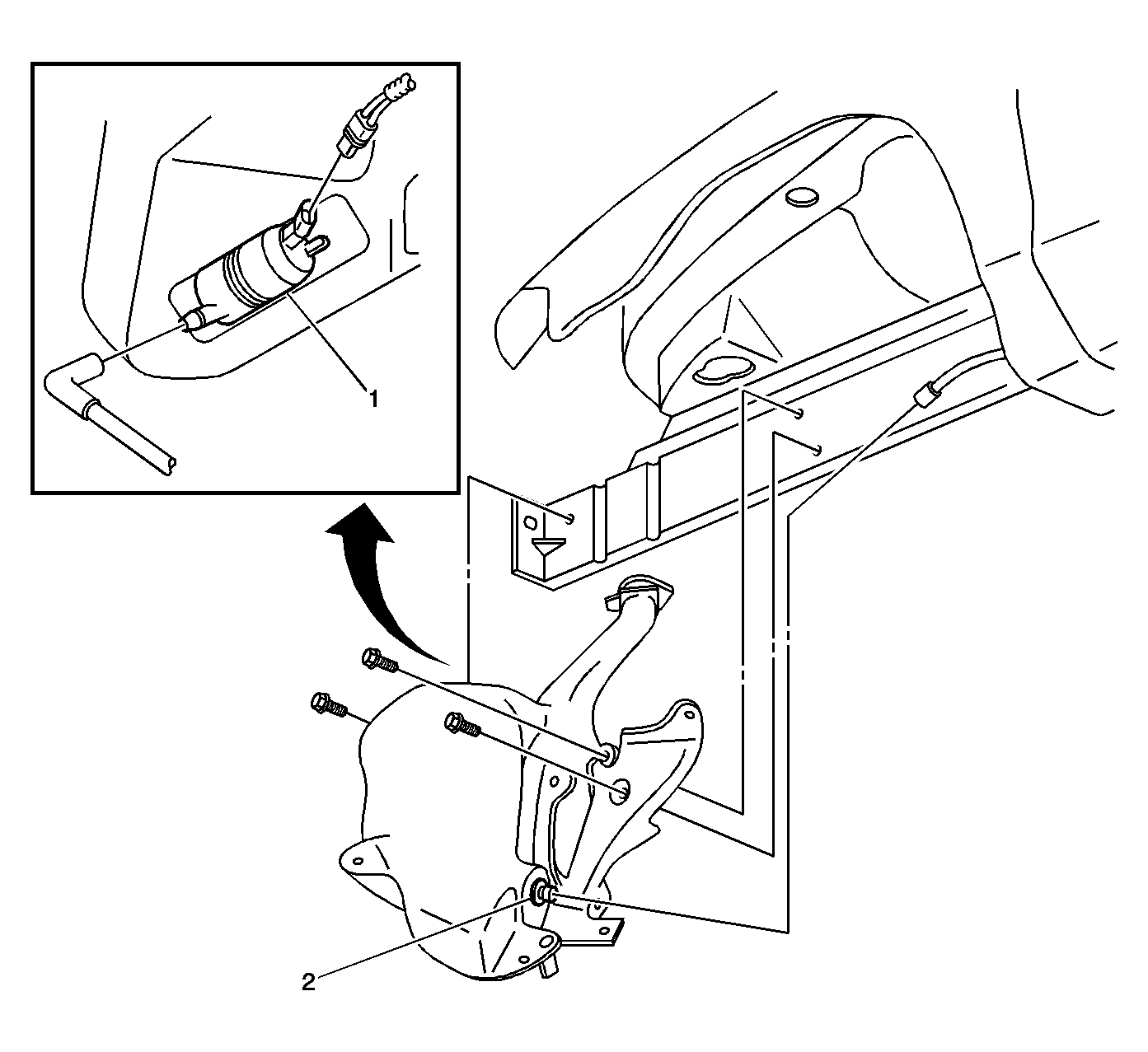

Fig 2: Washer Fluid Reservoir Component View
GM793089Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Washer Fluid Pump
2 Washer Fluid Level Sensor
