Installation Procedure

  1. Install the assist handle (2) to the seatback (1).

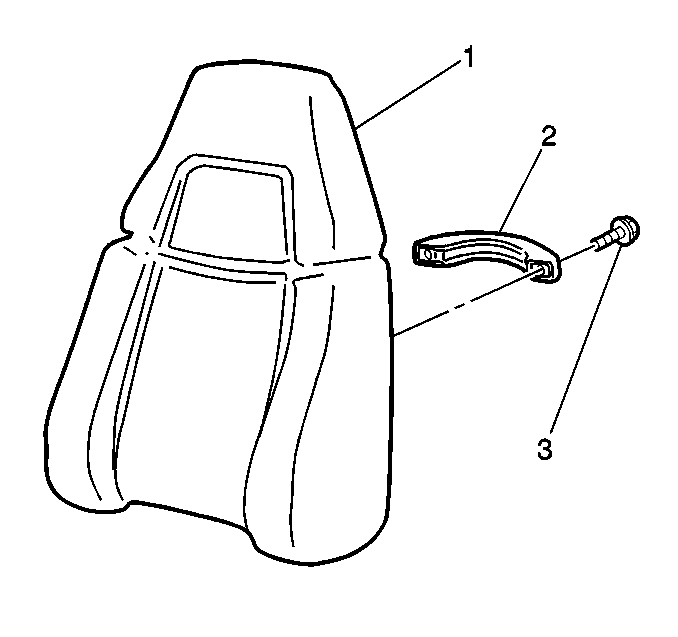

    2. Fig 1: Assist Handle
    GM333629Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the screws (3) that retain the assist handle to the seatback.

    Tighten:  Tighten the screws to 5 N.m (44 lb in).
