Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fender to the body.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fender to the body bolts.

    Tighten:  Tighten the bolts to 13 N.m (115 lb in).

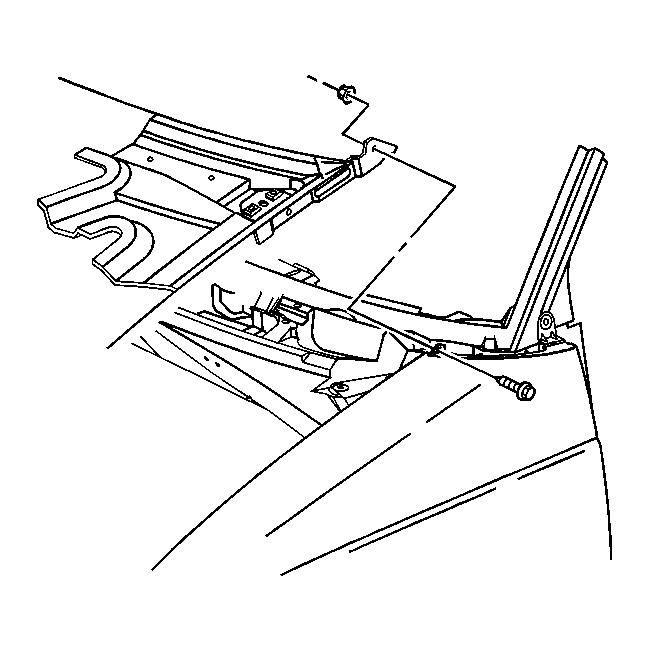

    Fig 1: View Of Hood To Hinge Bolts
    GM321597Courtesy of GENERAL MOTORS CORP.
  3. Install the front wheel house extension. Refer to Wheelhouse Extension Replacement  .
  4. Install the front rocker cladding. Refer to Cladding Replacement - Left Rocker Panel or to Cladding Replacement - Right Rocker Panel in Exterior Trim.
  5. Install the hood to the fender nut and bolt.

    Tighten:  Tighten the nut and bolts to 13 N.m (115 lb in).

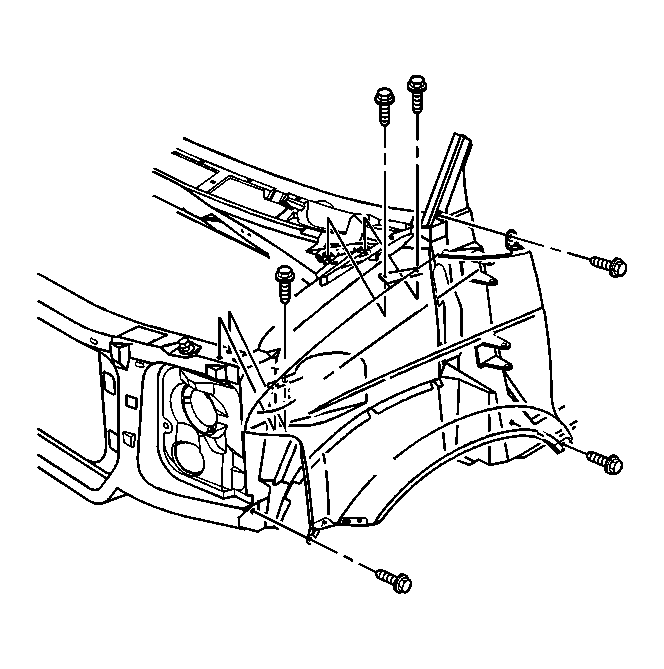

    Fig 2: Identifying Fender To Body Bolts
    GM321591Courtesy of GENERAL MOTORS CORP.
  6. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement  .
  7. Install the screws retaining the windshield frame filler panel.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  8. Install the impact bar. Refer to Impact Bar Replacement - Front Bumper .
  9. Close the hood.
