Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sunshade to the vehicle.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the sunshade retaining screws, connect the sunshade wiring harness (if equipped).

    Tighten:  Tighten the sunshade retaining screws to 2 N.m (18 lb in).

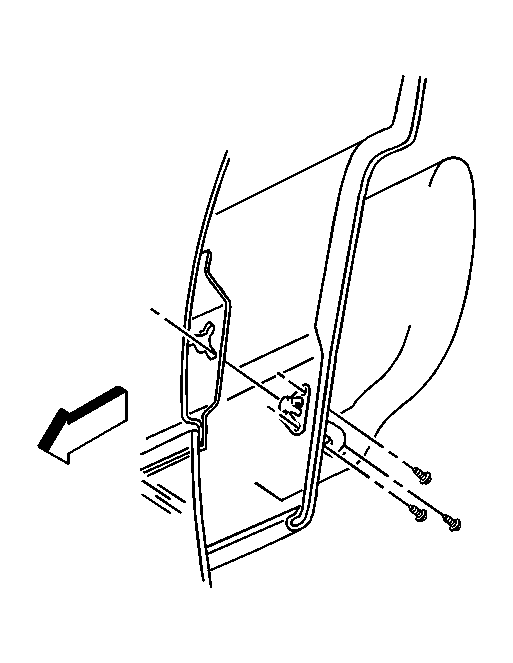

    Fig 1: Identifying Sunshade Retaining Screws
    GM493903Courtesy of GENERAL MOTORS CORP.
