Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: In order to avoid personal injury or vehicle damage when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.
  1. Install the carpet/mat to the vehicle.

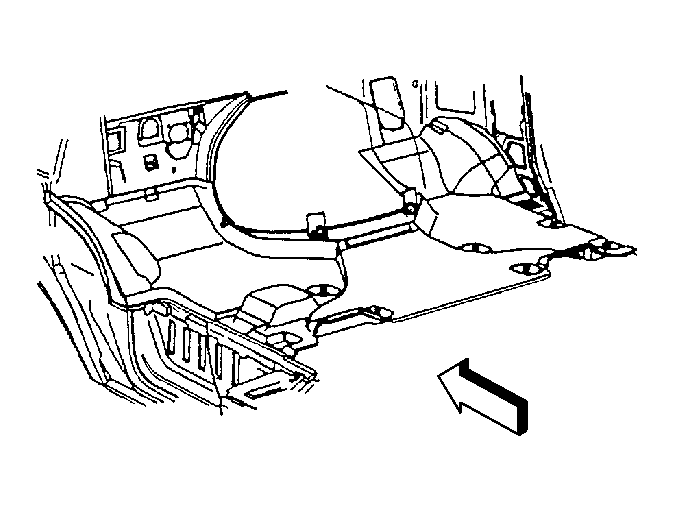

    Fig 1: View Of Front Floor Mat/Carpet
    GM314667Courtesy of GENERAL MOTORS CORP.
  2. Install the center floor air duct.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the screws to the center floor air duct.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  4. Install the front side door lock pillar garnish molding, if required. Refer to Garnish Molding Replacement - LF Lock Pillar  .
  5. Install the trim plates to the front door openings. Refer to Carpet Retainer Replacement  .
  6. Install the cowl side panel trim. Refer to Trim Panel Replacement - Cowl Side  .
  7. Install the engine cover, if required. Refer to Engine Cover Replacement  .
  8. Install the seats and the risers. Refer to Seat Replacement - Bucket in Seats.
