Installation Procedure
WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

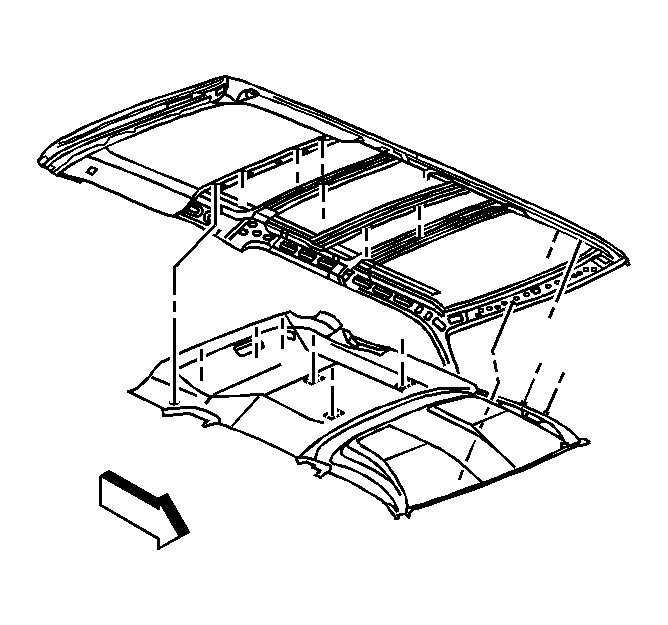

- Install the rear headliner to the retaining strips.
- Install the 2 push-in retainers at the front edge of the rear headliner.
- With the aid of an assistant, install the front headliner.
- Fasten the front headliner to the roof panel, ensuring that the retaining strips are fully engaged.
- Install the coat hooks. Refer to Coat Hook Replacement .
- Install the sliding door track garnish molding. Refer to Garnish Molding Replacement - Sliding Door .
- Install the dome lamp to the front headliner. Refer to Dome Lamp Replacement in Lighting Systems.
- Install the right seat belt retractor. Refer to Seat Belt Retractor Replacement - Right Front in Seat Belts.
- Install the necessary moldings. Refer to the following procedures:
- Trim Replacement - Fourth Pillar Right
- Trim Replacement - Fourth Pillar Left
- Trim Replacement - Third Pillar Right
- Trim Replacement - Third Pillar Left
- Garnish Molding Replacement - RF Lock Pillar
- Garnish Molding Replacement - LF Lock Pillar
- Garnish Molding Replacement - Rear Upper
- Garnish Molding Replacement - Side Door Opening Frame

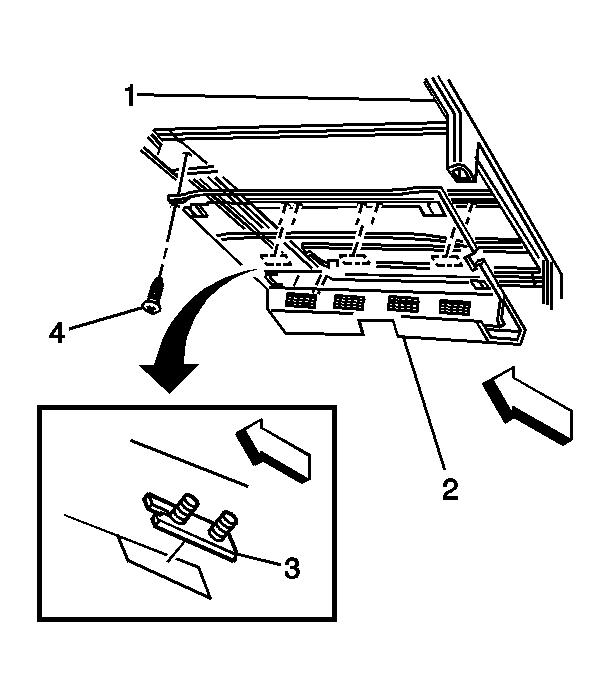

- Install the overhead console. Refer to Console Replacement - Overhead .
- Install the sunshades. Refer to Sunshade Replacement .
