Installation Procedure

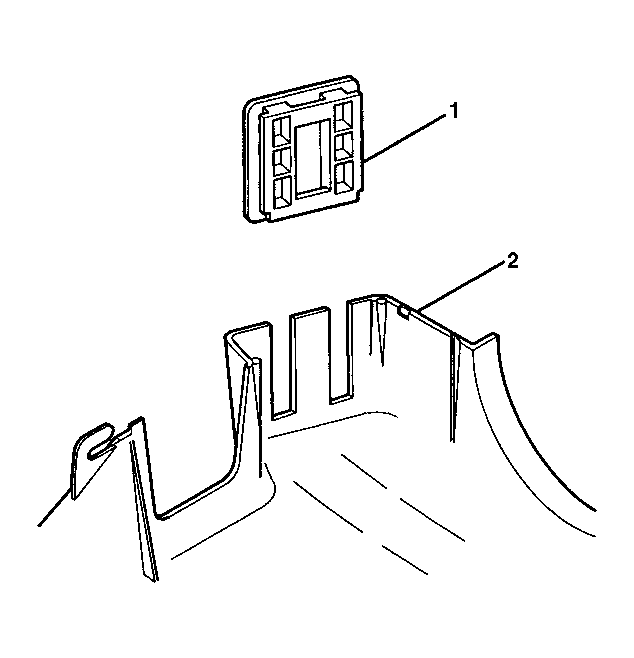

If necessary, install the trim cover protector (1) to the lower trim cover (2).

Fig 1: Locating Trim Cover Protector
Courtesy of GENERAL MOTORS CORP.
Install the shift lever. Refer to Shift Lever Replacement .
NOTE: Refer to Fastener Notice in Cautions and Notices.

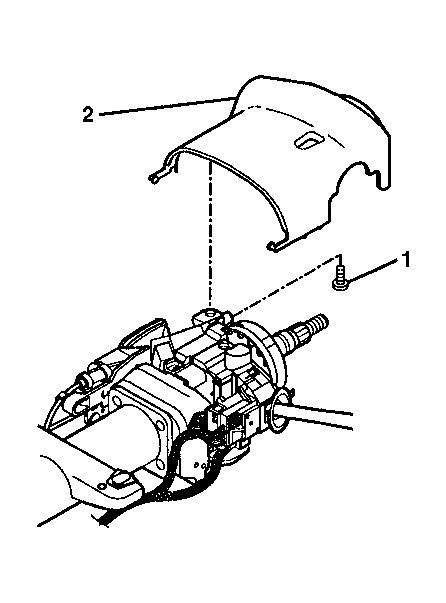

Install the upper trim cover (2) and secure by using the TORX® head screw (1).
Tighten: Tighten the screw to 1.5 N.m (13 lb in).

Fig 2: Identifying Upper Trim Cover Torx Head Screw
Courtesy of GENERAL MOTORS CORP.

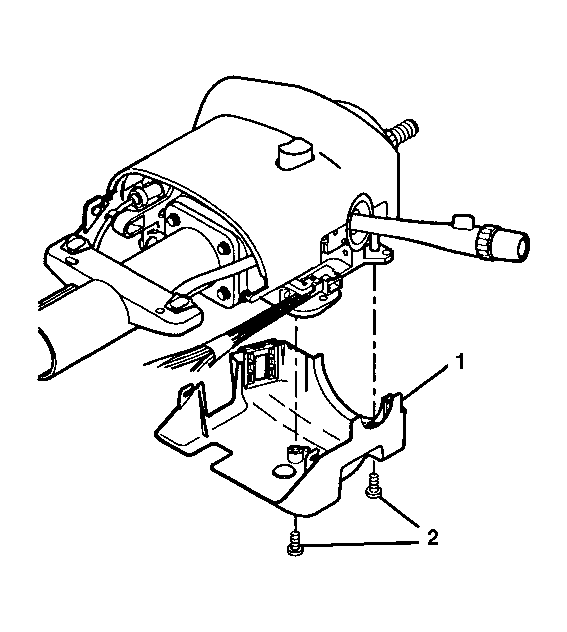

Install the lower trim cover (1) and secure by using 2 pan head tapping screws (2).
Tighten: Tighten the screws to 3.5 N.m (31 lb in).

Fig 3: View Of Lower Trim Cover Screws
Courtesy of GENERAL MOTORS CORP.
Install the tilt lever assembly. Refer to Tilt Lever Replacement .
Install the steering wheel onto the column. Refer to Steering Wheel Replacement .
Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
