Harness Routing Views

Fig 1: Forward Lamps Harness Routing View, Left Side
GM786763Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp - LH - Sealed
2 C100
3 P100
4 C104
5 C109
6 C102
7 S132
8 S131
9 S103
10 S102
11 S105
12 S104
13 Marker Lamp - LF Connector
14 Marker Lamp - LF
15 Park/Turn Signal Lamp - LF
16 Park/Turn Signal Lamp - LF Connector
17 Inflatable Restraint Front End Discriminating Sensor Connector
18 Inflatable Restraint Front End Discriminating Sensor
Fig 2: Forward Lamp Harness Routing View, Right Side
GM582030Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window Washer Fluid Pump
2 S101
3 Park/Turn Signal Lamp - RF
4 Park/Turn Signal Lamp - RF Connector
5 Marker Lamp - RF Connector
6 Marker Lamp - RF
7 S106
8 S100
9 Headlamp - Right - Sealed
10 G100
11 Blower Motor
12 Windshield Washer Fluid Pump
13 Blower Motor Resistor Assembly

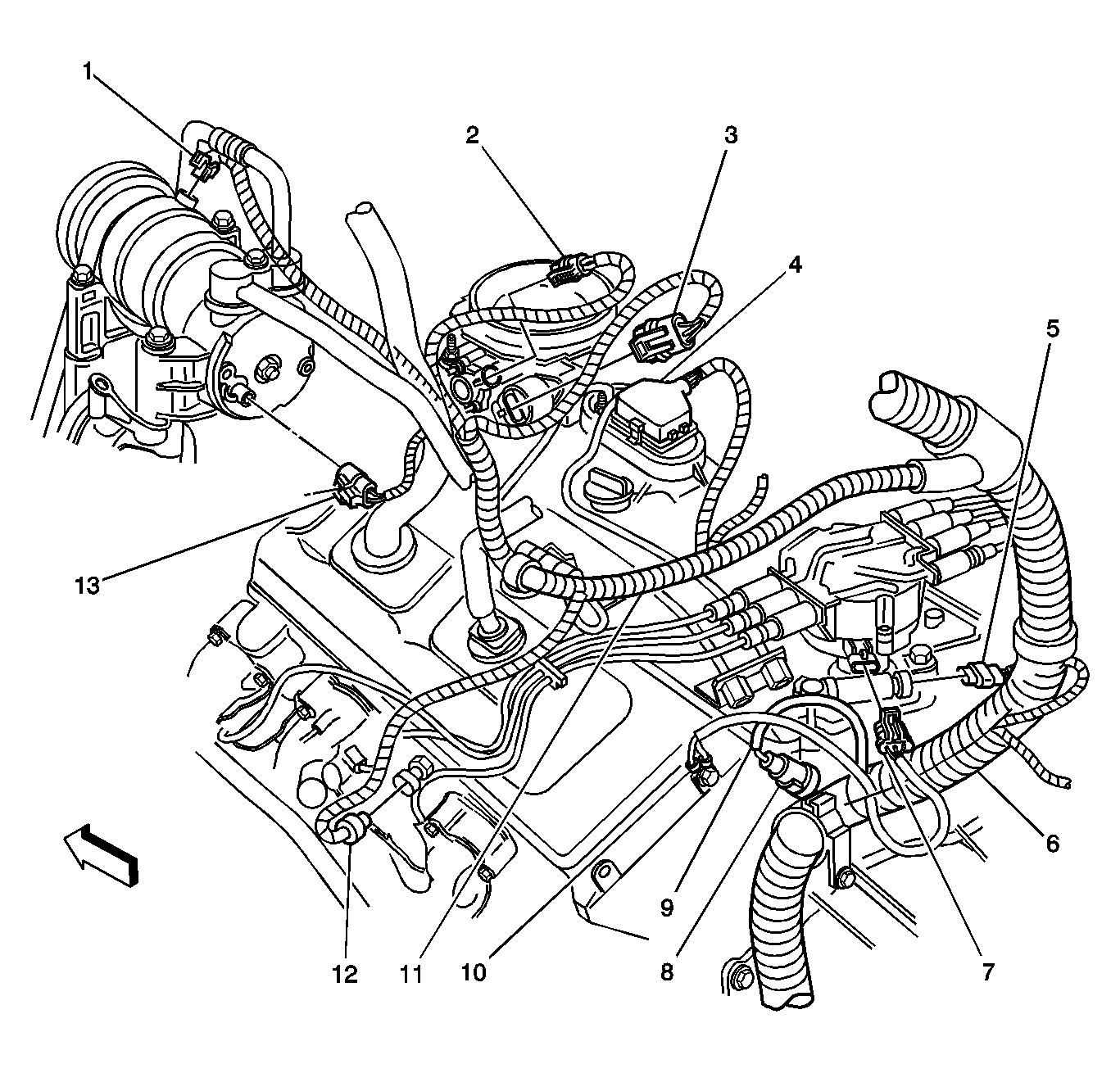

Fig 3: Engine Component Location View - Rear
GM781566Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/C Compressor Clutch Connector
2 Throttle Position (TP) Sensor Connector
3 Idle Air Control (IAC) Valve Connector
4 Central Sequential Fuel Injection (Central SFI) Connector
5 Engine Oil Pressure (EOP) Sensor Connector
6 S126
7 Camshaft Position (CMP) Sensor Connector
8 Knock Sensor (KS) Connector
9 S134
10 G106, And G107
11 S124
12 Engine Coolant Temperature (ECT) Sensor Connector
13 A/C High Pressure Switch Connector
Fig 4: Engine Wiring, Right Side
GM582029Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S123
2 Evaporative Emission (EVAP) Canister Purge Solenoid Connector
3 Ignition Coil Connector
4 Ignition Control Module (ICM)
5 S154
6 S119
7 Ignition Control Module (ICM) Connector
8 Generator
9 Generator Connector
10 Ignition Coil
11 Manifold Absolute Pressure (MAP) Sensor Connector
12 Manifold Absolute Pressure (MAP) Sensor
13 Evaporative Emission (EVAP) Canister Purge Solenoid
Fig 5: Undercarriage Wiring Harness
GM598350Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Electronic Brake Control Module (EBCM)
2 Electronic Brake Control Module (EBCM) Connector C2
3 Electronic Brake Control Module (EBCM) Connector C1
4 C314
5 S126
6 S127
7 G302
8 C310
9 Evaporative Emission (EVAP) Canister Vent Solenoid
Fig 6: Left B Pillar Harness Routing View
GM881094Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S307
2 S301
3 Daytime Running Lamps (DRL) Diode
4 Left "B" Pillar
5 Daytime Running Lamps (DRL) Diode Connector
6 S315
7 S322
Fig 7: Powertrain Control Module (PCM) Location View
GM786705Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Harness
2 Battery
3 S154
4 Powertrain Control Module (PCM) Connector C1
5 Powertrain Control Module (PCM) Connector C2
6 Powertrain Control Module (PCM)
7 Fuel Pump Prime

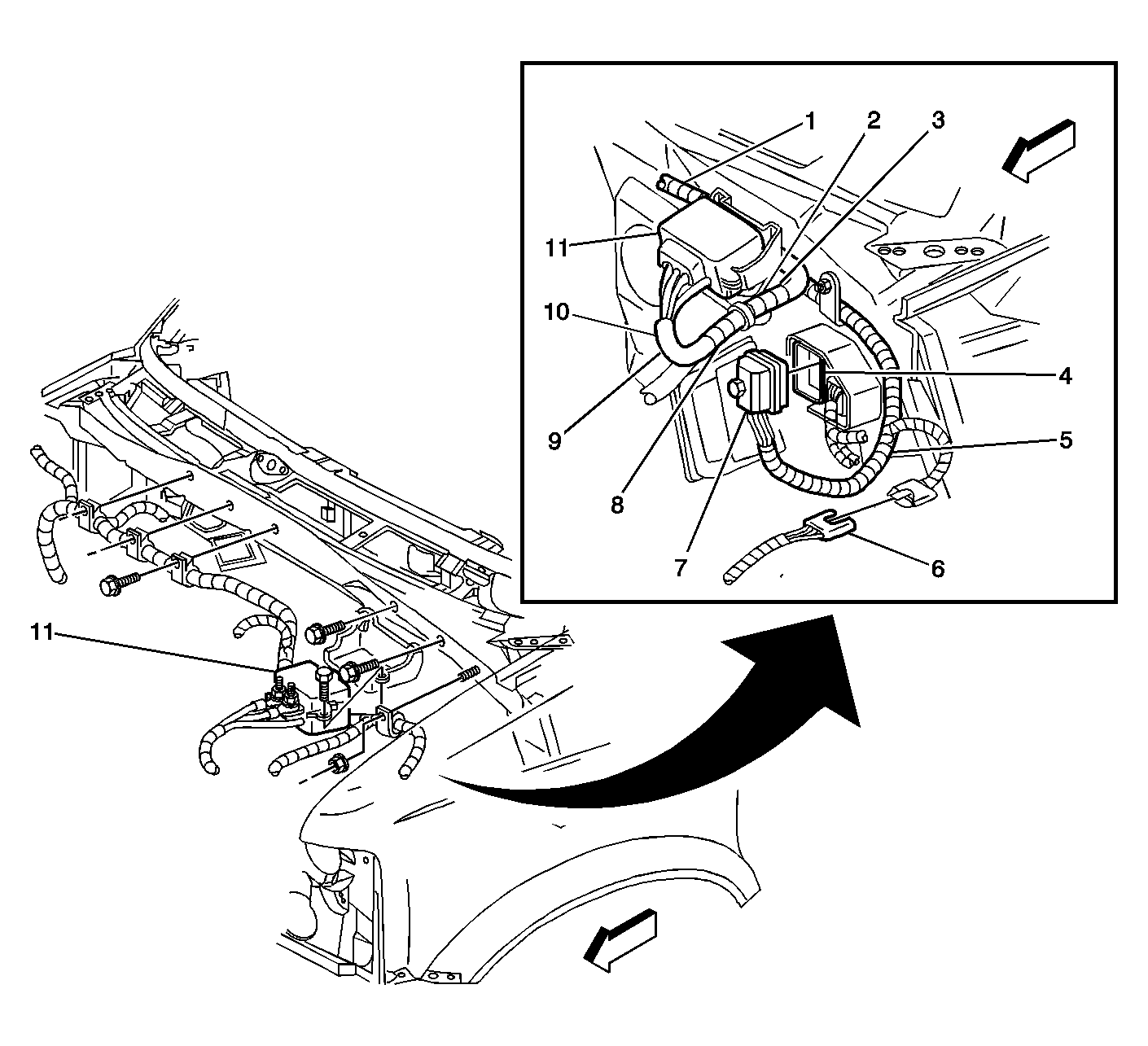

Fig 8: Bulkhead/Fuse Block - Underhood Wiring
GM786902Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S115
2 S111
3 S110
4 P100
5 S112
6 C104
7 C100
8 S133
9 S109
10 S108
11 Fuse Block - Underhood
11 Fuse Block - Underhood

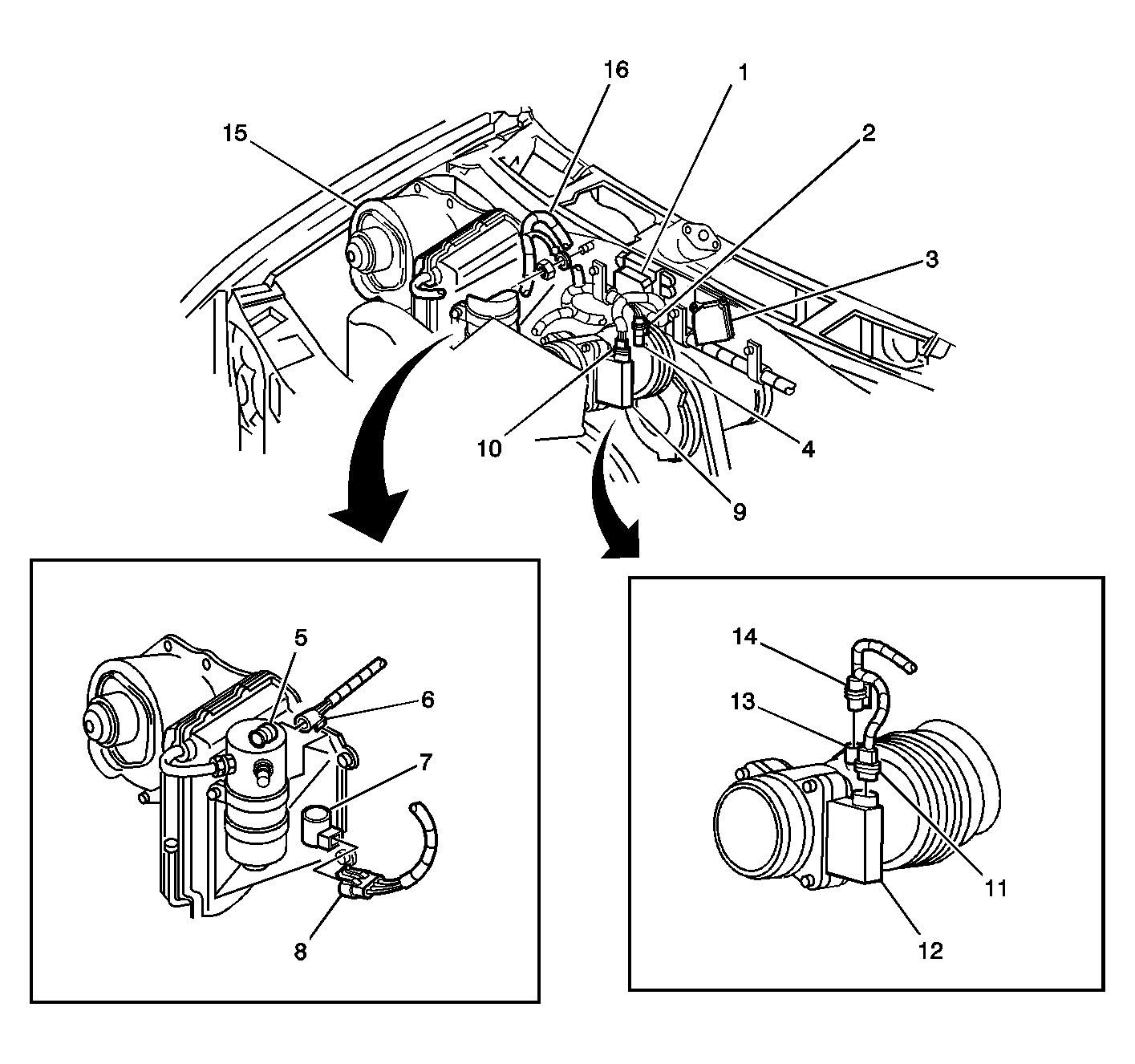

Fig 9: Engine/Center of Front Dash Wiring
GM786790Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cruise Control Module (CCM)
2 Intake Air Temperature (IAT) Sensor Connector
3 Windshield Wiper Motor and Module
4 Intake Air Temperature (IAT) Sensor
5 A/C Low Pressure Switch
6 A/C Low Pressure Switch Connector
7 Coolant Bypass Valve Solenoid
8 Coolant Bypass Valve Solenoid Connector
9 Mass Air Flow (MAF)Sensor
10 Mass Air Flow (MAF) Sensor Connector
11 Mass Air Flow (MAF) Sensor Connector
12 Mass Air Flow (MAF) Sensor
13 Intake Air Temperature (IAT) Sensor
14 Intake Air Temperature (IAT) Sensor Connector
15 Blower Motor
16 S116

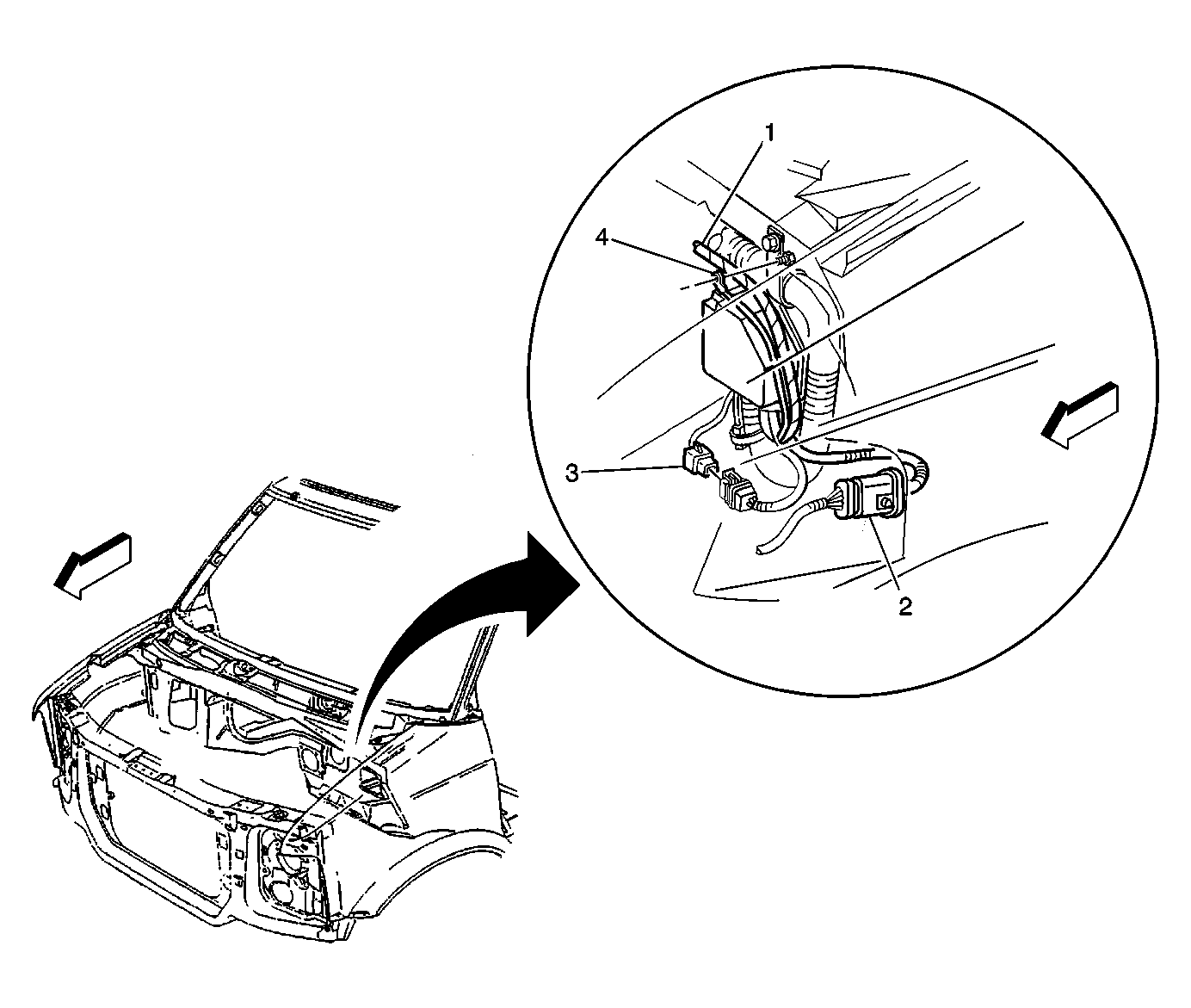

Fig 10: Front of Dash Wiring, Left Side (Electrical)
GM597046Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S130
2 C102
3 C109
4 G110
Fig 11: Instrument Cluster Wiring
GM786770Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)
1 Body Control Module (BCM)
2 Body Control Module (BCM) Connectors
3 HVAC Control Module
4 S219
5 S217
6 S211
7 S257
8 S330
9 Headlamp and Panel Dimmer Switch
10 S256
11 Headlamp and Panel Dimmer Switch Connector
12 Remote Control Door Lock Receiver (RCDLR) Connector
13 S210
14 S254
15 S250
16 S212
17 S219
18 Instrument Panel Cluster (IPC) Connector
19 S258
20 S259
21 S255
22 Radio Connectors

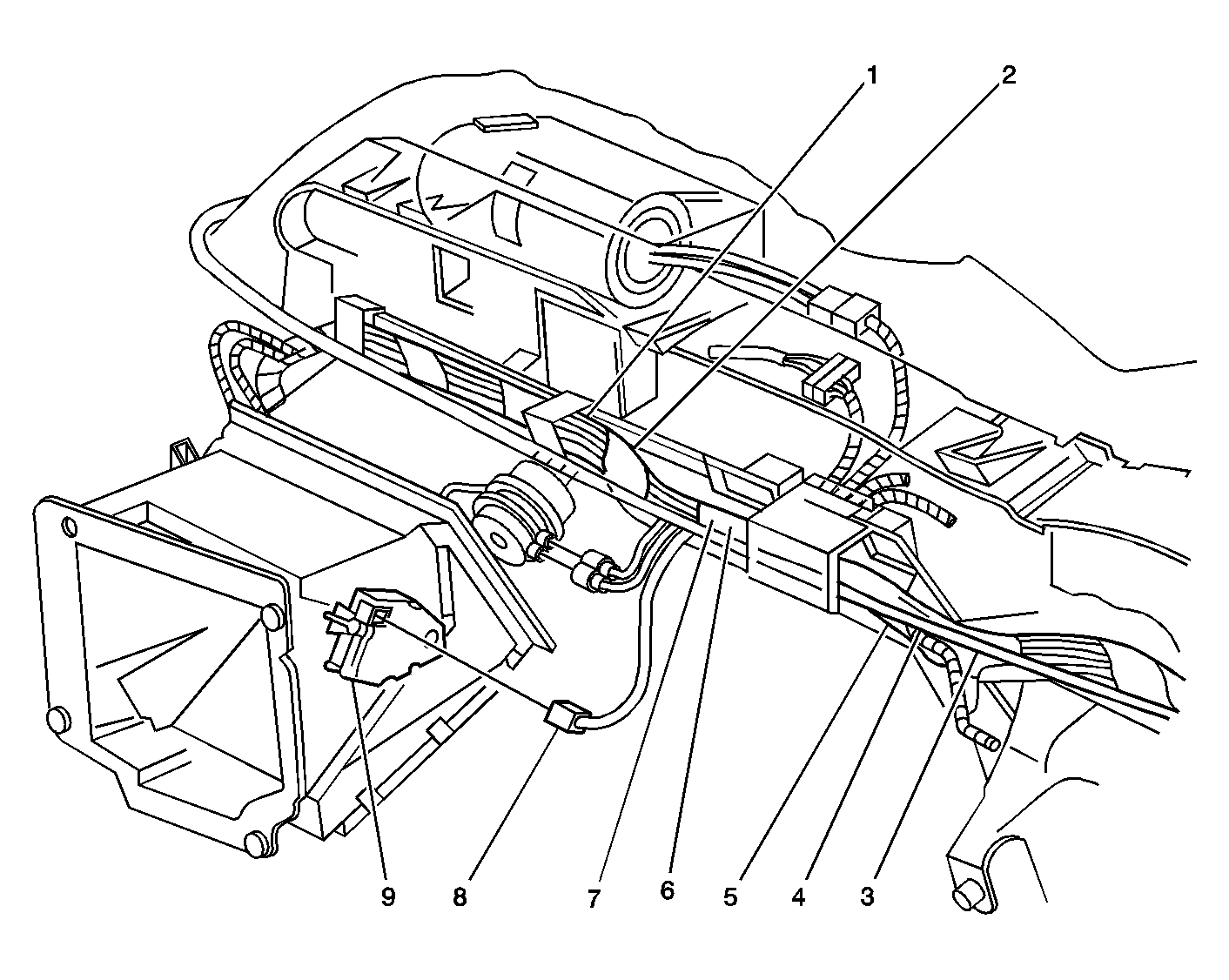

Fig 12: IP Wiring Harness, Right Side
GM786804Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S241
2 S229
3 S223
4 S224
5 S259
6 S227
7 S228
8 Air Temperature Actuator Connector
9 Air Temperature Actuator
Fig 13: Fuse Block Wiring Harness - I/P Location View
GM597158Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Convenience Center
2 Turn Signal/Hazard Flasher Module
3 Horn Relay
4 Fuse Block - I/P
5 C213
6 C212

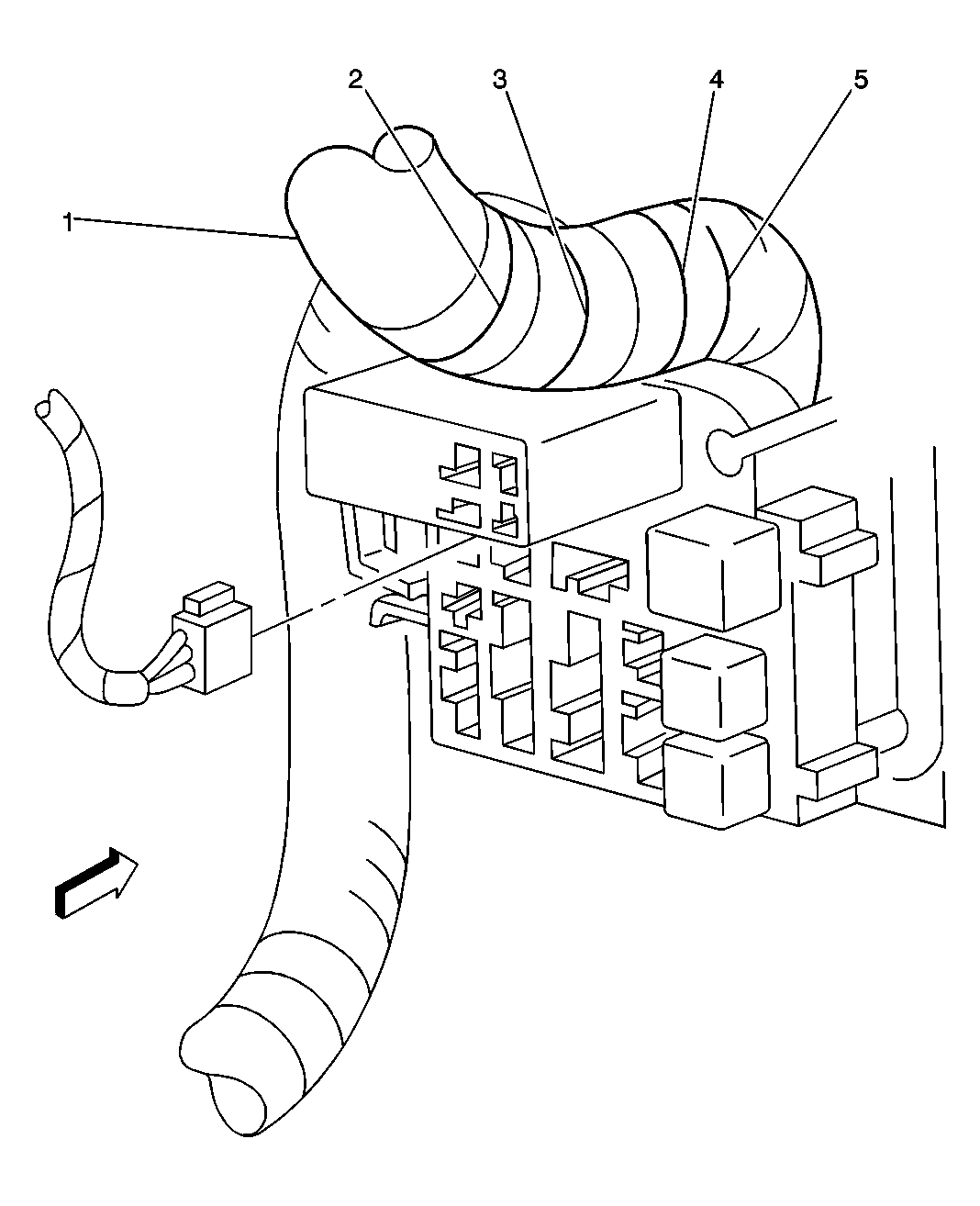

Fig 14: Convenience Center Wiring Harness
GM582026Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S238
2 S206
3 S205
4 S204
5 S203
Fig 15: Left Front Interior Wiring Harness
GM582024Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C200
2 S240
3 S200
4 S201
5 C223
6 C202
7 Inflatable Restraint I/P Module
8 Auxiliary Power Outlet Front #1 Connector
9 Auxiliary Power Outlet Front #2 Connector
10 Cigar Lighter Connector
11 S234
12 Engine Cover Ground (G201)
13 Inflatable Restraint Sensing and Diagnostic Module
14 Inflatable Restraint Sensing and Diagnostic Module Connector
15 C333
16 S242
17 C300
18 S325
19 Center High Mounted Stop Lamp (CHMSL) Resistor
20 S326
21 S324
22 S327
23 Park Brake Switch
24 S303
25 S330
26 S246
27 S305
28 S246
Fig 16: Splice Pack, Relay Block, DLC Wiring Harness
GM563307Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C201
2 Inflatable Restraint Steering Wheel Module Coil Connector
3 Data Link Connector (DLC)
4 Relay Block #1
5 S253
6 S220
7 S252
8 S251
9 S250
10 SP261 Splice Pack
Fig 17: Vanity Mirror Wiring Harness
GM582022Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S237
2 Vanity Mirror Lamp Connectors
3 Vanity Mirror Lamp - Right
4 Convenience Center Connector C6
5 C200
6 S236
Fig 18: I/P Wiring Harness To Front Passenger Door
GM781531Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Relay
2 G200
3 Door Jamb Switch - Front Passenger
4 C205
5 C203
6 S232
Fig 19: Left Kick Panel Wiring Harness
GM582018Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G300
2 C301
3 C303
4 Door Jamb Switch - Driver
Fig 20: Front Door Wiring Harness (Front Passenger Shown, Driver Opposite)
GM563940Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S500 - Driver, S602 - Front Passenger
2 S503 - Driver, S601 - Front Passenger
3 Speaker - RF Door Tweeter Connector
4 S506 - Driver, S600 - Front Passenger
5 Outside Rearview Mirror Switch Connector- Driver
6 Window Switch Front Passenger Connector C1/Window Master Switch - Driver Connector C2
7 Window Motor - Front Passenger Connector
8 Window Switch Front Passenger Connector C2/Window Master Switch - Driver Connector C1
9 S502 - Driver, S603 - Front Passenger
10 Door Lock Actuator - Front Passenger
11 Door Lock Actuator - Front Passenger Connector
12 Door Lock Switch - Front Passenger Connector
13 Speaker - RF Door Connector
14 C301 - Driver, C205 - Front Passenger
15 P500 - Driver, P600 - Front Passenger
16 S501 - Driver, S605 - Front Passenger
17 Outside Rearview Mirror - Passenger Connector
Fig 21: Seat Wiring Harness - Driver
GM298031Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Vertical Motor
2 Seat Adjuster Switch - Driver
3 Seat Horizontal Motor
4 C306
5 Seat Rear Vertical Motor
Fig 22: Courtesy Lamp - Left Wiring Harness
GM581991Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Daytime Running Lamps (DRL) Diode
2 S328
3 Courtesy Lamp - Left

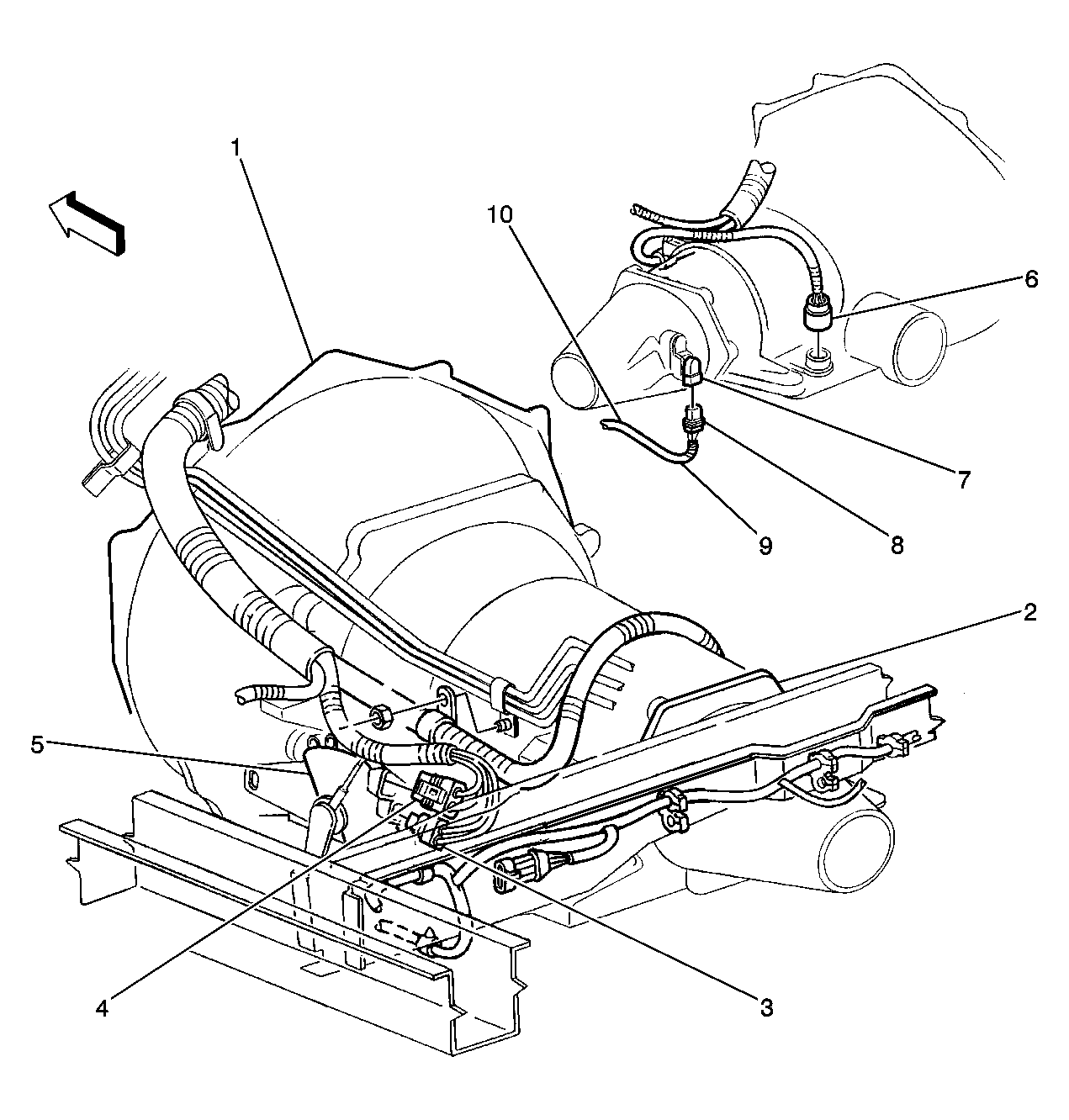

Fig 23: Transmission Wiring Harness
GM564546Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Automatic Transmission
2 Adapter
3 Park/Neutral Position (PNP) Switch Connector C1
4 Park/Neutral Position (PNP) Switch Connector C2
5 Park/Neutral Position (PNP) Switch
6 C175
7 Vehicle Speed Sensor (VSS)
8 Vehicle Speed Sensor (VSS) Connector
9 S333
10 Vehicle Speed Sensor (VSS) Shield (Taped)
Fig 24: A4WD Transfer Case Wiring Harness Locator View
GM516428Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Propshaft Speed Sensor - Rear Connector
2 Transfer Case Encoder Motor Connector
3 Vehicle Speed Sensor (VSS) Connector
4 Propshaft Speed Sensor - Front Connector
5 Transfer Case
6 P301
Fig 25: Body Wiring Harness - LR
GM374528Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Blower Motor - Auxiliary
2 S313
3 S312
4 S311
5 S310
6 S309
7 S314
8 S315
9 S322
10 S316
11 Audio Amplifier
12 Audio Amplifier Connector
13 S318
14 S317
15 G404

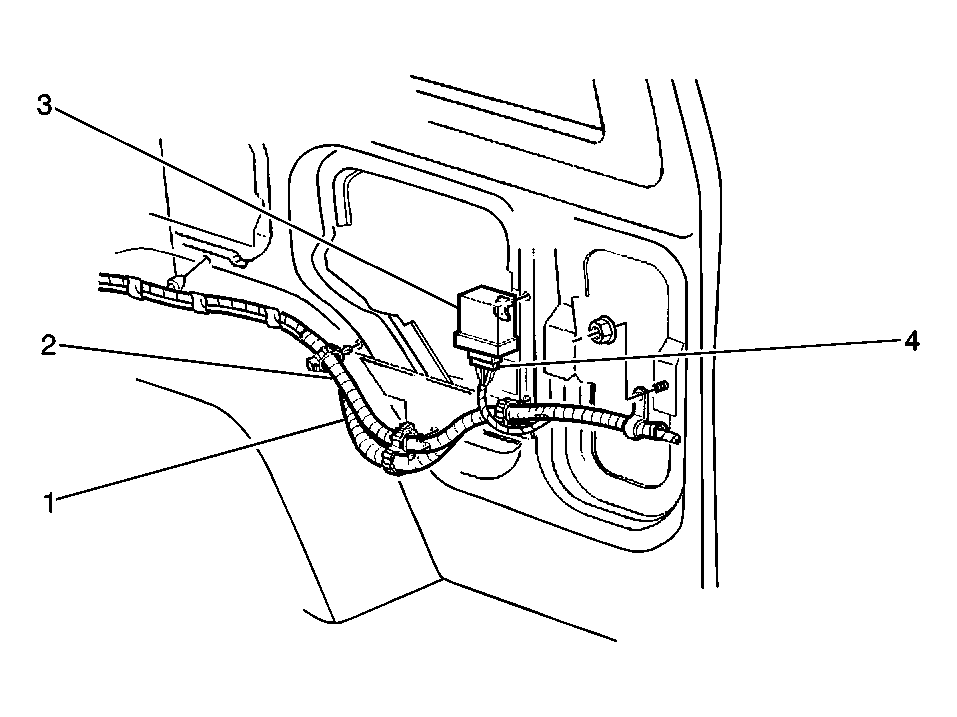

Fig 26: Body Wiring Harness - RR
GM374539Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S334
2 S335
3 Liftglass Lock/Unlock Relay
4 Liftglass Lock/Unlock Relay Connector
Fig 27: Right D Pillar Wiring Harness
GM582016Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S400
2 Door Lock Actuator - Rear
3 P401
4 Trailer Harness (Taped Wires)
5 S403
6 S402, And S408
7 S401
8 G401
9 Speaker - RR
Fig 28: Left D Pillar Wiring Harness
GM597963Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S321
2 C401
3 S320
4 Speaker - LR
5 S319
6 Speaker - LR Door (Base Radio) Speaker - LR Subwoofer (Premium Radio)
7 P400
8 G400
9 S400

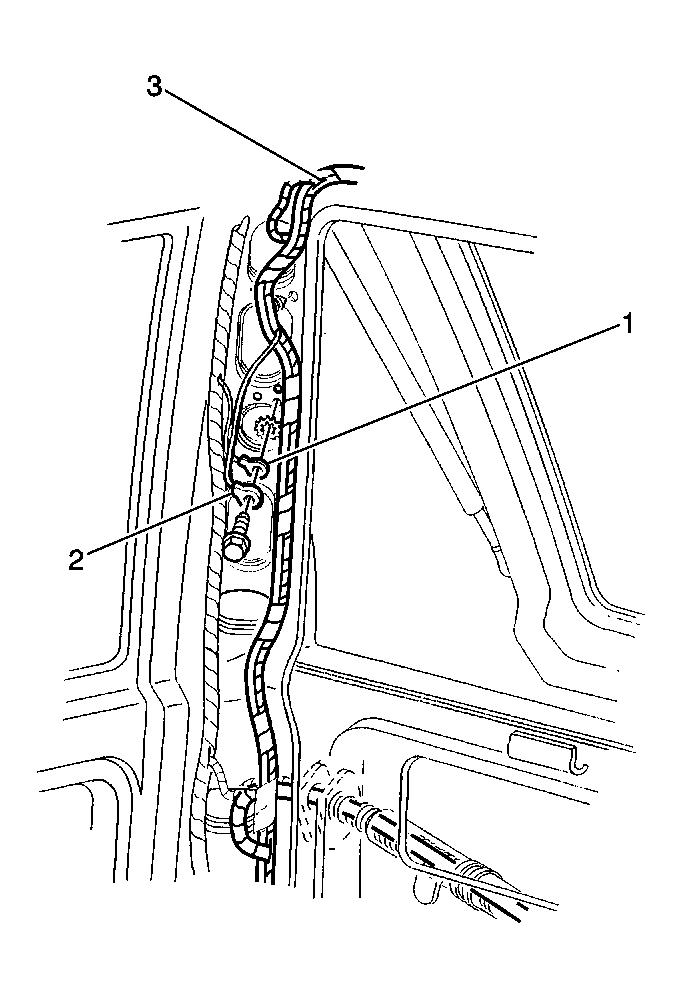

Fig 29: Right D Pillar Wiring Harness
GM281342Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G401
2 G403
3 S407
