Installation Procedure

  1. Install the rear bench seat risers to the seat.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the rear bench seat riser bolts to the seat.

    Tighten:  Tighten the rear bench seat riser bolts to the seat to 25 N.m (18 lb ft).

  3. Install the front bench seat riser bolts to the seat.

    Tighten:  Tighten the front bench seat riser bolts to the seat to 65 N.m (47 lb ft).

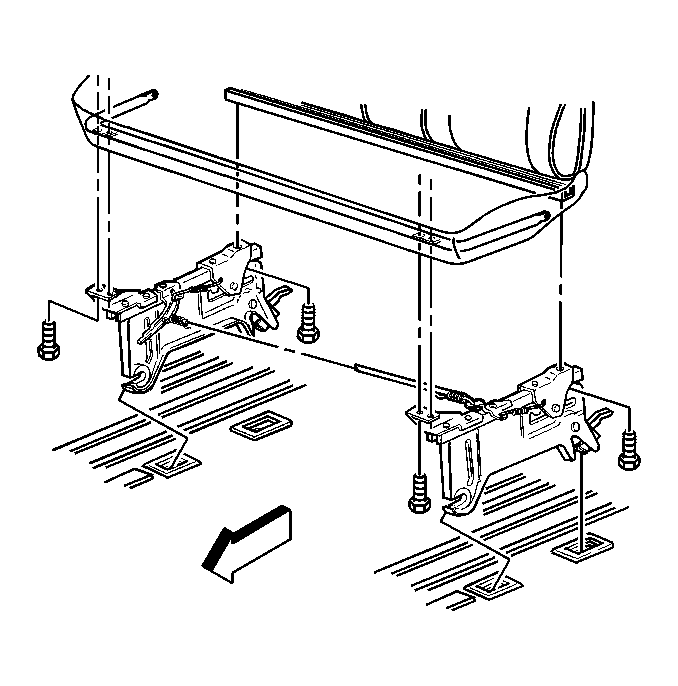

    Fig 1: Identifying Rear Bench Seat Riser Bolts
    GM300226Courtesy of GENERAL MOTORS CORP.
  4. Install the rear bench seat in the vehicle:
    1. Lift the rear bench seat into position.
    2. Lower the front hooked retainers onto the anchor pins in the floor anchor plates.
  5. Lower the rear bench seat latch onto their anchor pins in the anchor plates.
  6. Verify that the rear bench seat is securely latched by pulling up on the seat.

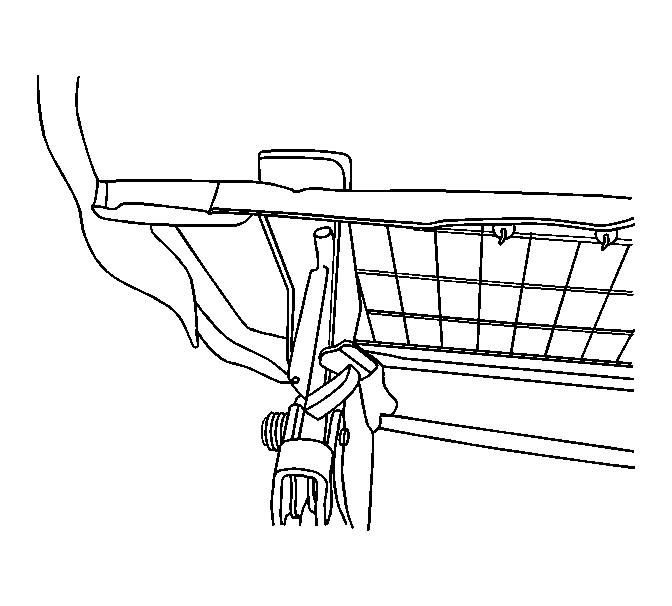

    Fig 2: Locating Latch Mechanism
    GM502153Courtesy of GENERAL MOTORS CORP.
