Installation Procedure

  1. Install the seat riser spacer to the seat risers.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the seat riser spacer nuts and bolts to the seat tracks.

    Tighten:  Tighten the seat riser spacer nuts and bolts to the seat tracks to 30 N.m (22 lb ft).

  3. Install the manual seat adjuster wire to the seat tracks.
  4. Install the power seat to the seat risers if equipped. Refer to Seat Adjuster Mechanism Replacement - Power .
  5. Install the seat belt guide to the seat riser.
  6. Install the nuts that retain the seat to the risers.

    Tighten:  Tighten the nuts that retain the seat to the riser to 43 N.m (32 lb ft).

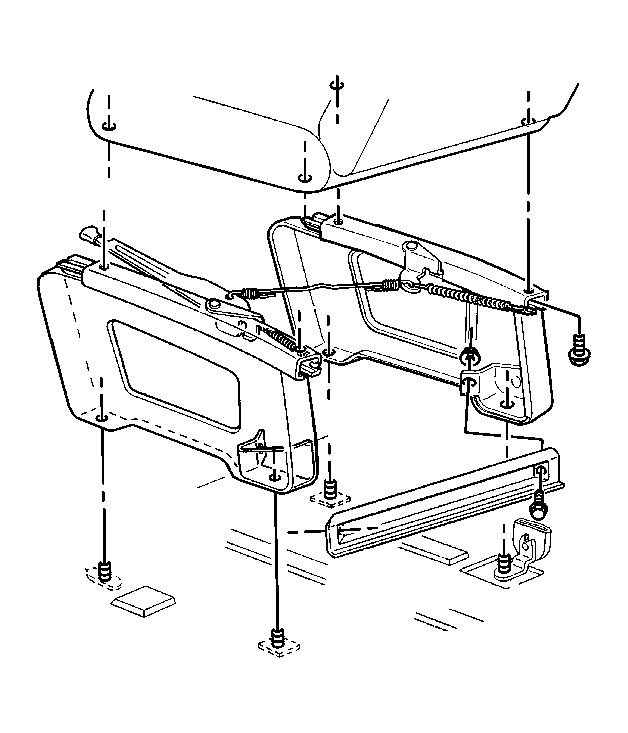

    Fig 1: Identifying Bucket Seat Retaining Bolts
    GM300065Courtesy of GENERAL MOTORS CORP.
  7. Install the seat and the seat riser in the vehicle.
  8. Connect the electrical connector to the power seat if equipped.
  9. Install the nuts that retain the seat to the floor.

    Tighten:  Tighten the nuts that retain the seat to the floor to 43 N.m (32 lb ft).

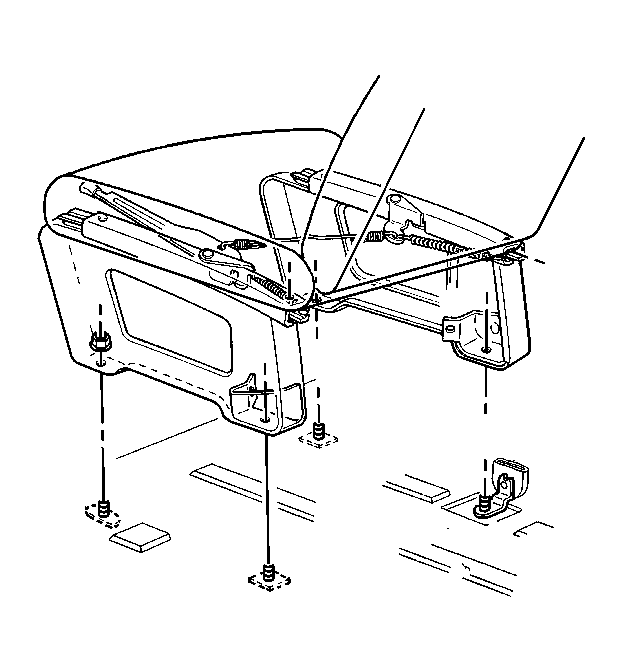

    Fig 2: View Of Bucket Seat Retaining Nuts
    GM300072Courtesy of GENERAL MOTORS CORP.
  10. Install the seat belt to the side of the seat belt guide.
