Installation Procedure

  1. Install the seat cushion frame to the seat back frame.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the seat back hinge bolts to the left side of the seat frame.

    Tighten:  Tighten the seat back hinge bolts to the left side of the seat frame to 30 N.m (22 lb ft).

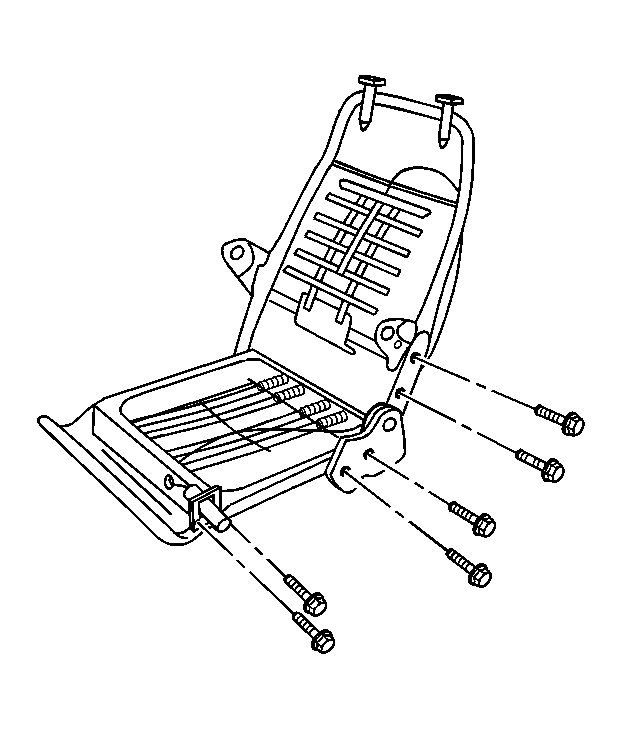

    Fig 1: View Of LH Seat Back Hinge Bolts
    GM300209Courtesy of GENERAL MOTORS CORP.
  3. Install the bolts to the right side of the seat frame.

    Tighten:  Tighten the seat back hinge bolts to the right side of the seat frame to 30 N.m (22 lb ft).

    Fig 2: Locating RH Seat Back Hinge Bolts
    GM300213Courtesy of GENERAL MOTORS CORP.
  4. Install the lumbar support cable. Refer to Lumbar Support Cable Replacement .
  5. Install the seat cushion cover and pad. Refer to Seat Cushion Cover Replacement - Front (YC5 and YC6)  or Seat Cushion Cover Replacement - Front (YC7) .
  6. Install the bucket seat in the vehicle. Refer to Seat Replacement - Bucket .
