Inline Harness Connectors: C314

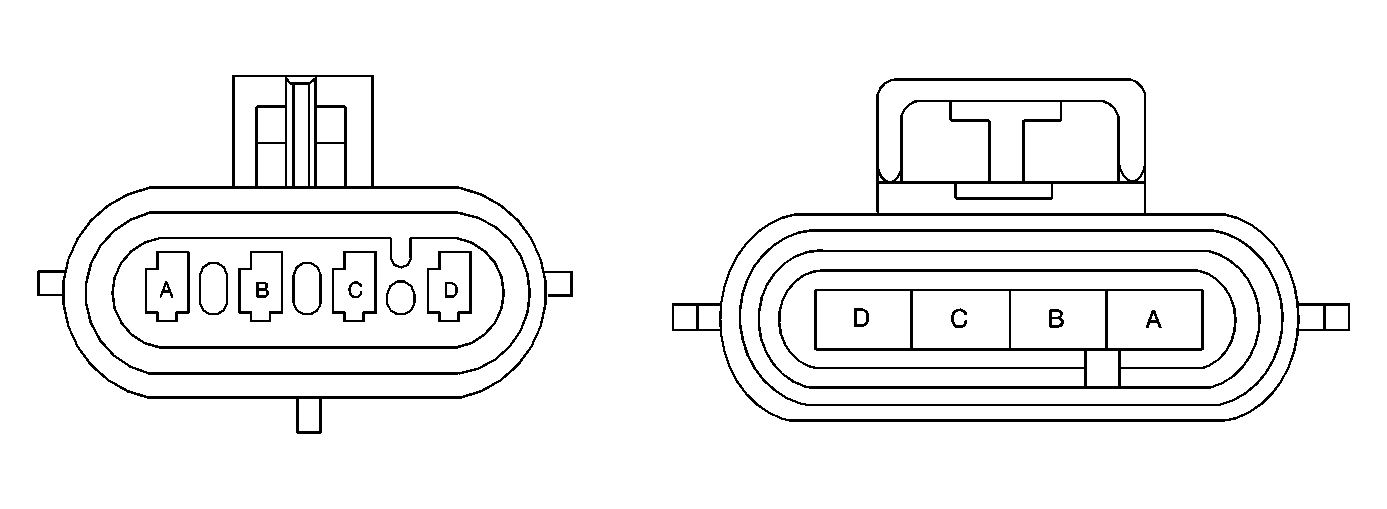

C314 (Engine to Wheel Speed Sensor Jumper) Connector End View

GM73184Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162144
  • 4-Way F Metri-Pack 150 Series, Sealed (BLK)
 Connector Part Information
  • 12162102
  • 4-Way M Metri-Pack 150 Series, Sealed Self Lock (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YEL 873 Left Front Wheel Speed Sensor Low Reference A YEL 873 Left Front Wheel Speed Sensor Low Reference
B LT BLU 830 Left Front Wheel Speed Sensor Signal B LT BLU 830 Left Front Wheel Speed Sensor Signal
C TAN 833 Right Front Wheel Speed Sensor Low Reference C TAN 833 Right Front Wheel Speed Sensor Low Reference
D DK GRN 872 Right Front Wheel Speed Sensor Signal D DK GRN 872 Right Front Wheel Speed Sensor Signal
