Installation Procedure

  1. Connect the electrical connectors.
  2. Install the extension to the instrument panel:
    1. Align the retainers.
    2. Press the extension into place until the retainers are seated.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the nuts that retain the extension to the floor.

    Tighten:  Tighten the nuts that retain the extension to the floor to 8 N.m (71 lb in).

  4. Install the retaining screws.

    Tighten:  Tighten the screws to 8 N.m (71 lb in).

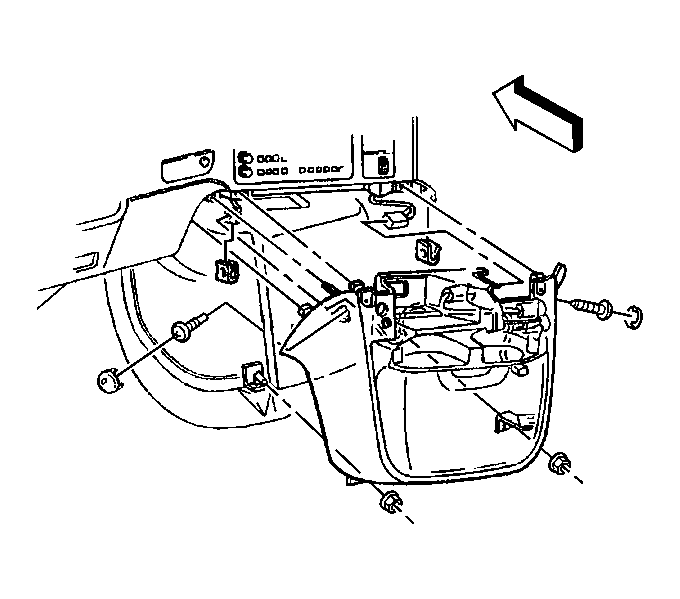

    Fig 1: Locating Instrument Panel (I/P) Extension Screws
    GM317081Courtesy of GENERAL MOTORS CORP.
  5. Install the extension screw covers.
