Installation Procedure

  1. Connect the temperature sensor electrical connector.
  2. Install the temperature sensor by sliding the sensor downward.
  3. Install the radiator grille to the vehicle. Refer to Grille Replacement in Exterior Trim.

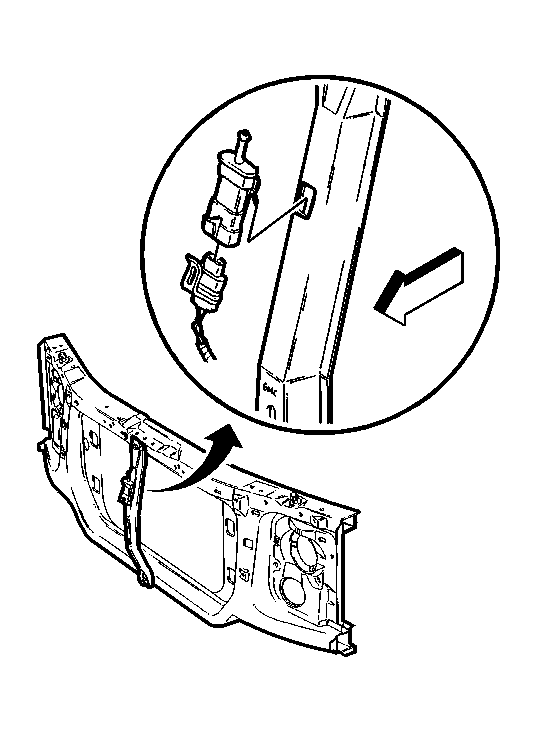

    Fig 1: View Of Ambient Air Temperature Gage Sensor
    GM298186Courtesy of GENERAL MOTORS CORP.
