Inline Harness Connectors: C201

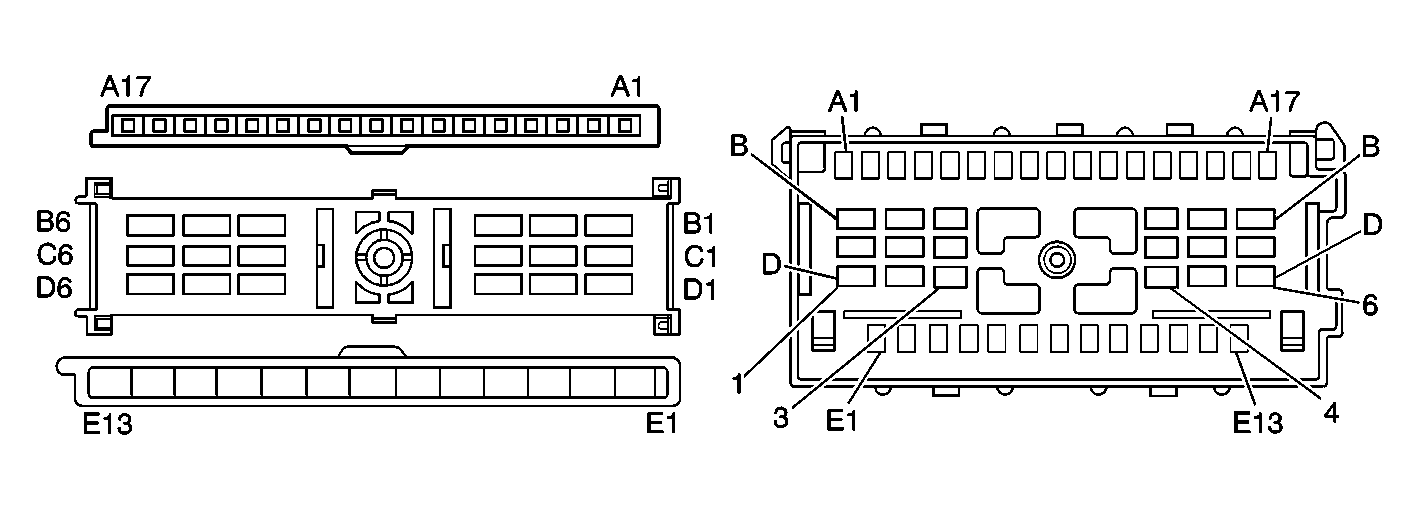

C201 (Steering Column to I/P) Connector End View
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A1 | WHT | 17 | Stop Lamp Switch Signal | A1 | WHT | 17 | Stop Lamp Switch Signal (w/o VE1) |
| A1 | BRN | 9 | Park Lamp Supply Voltage (w/VE1) | ||||
| A2 | PNK | 139 | Ignition 1 Voltage | A2 | PNK | 139 | Ignition 1 Voltage |
| A3 | LT BLU | 1508 | TURN/HAZARD Module Supply Voltage | A3 | LT BLU | 1508 | TURN/HAZARD Module Supply Voltage |
| A4 | WHT | 352 | Headlamp Switch Flash-to-Pass Signal | A4 | YEL | 307 | Headlamp Switch Flash-to-Pass Signal |
| A5 | - | - | Not Used | A5 | - | - | Not Used |
| A6 | DK BLU | 15 | Right Turn Signal Lamps Supply Voltage | A6 | DK BLU | 15 | Right Turn Signal Lamps Supply Voltage |
| A7 | LT BLU | 14 | Left Turn Signal Lamps Supply Voltage | A7 | LT BLU | 14 | Left Turn Signal Lamps Supply Voltage |
| A8 | BLK | 150 | Ground | A8 | BLK | 750 | Ground |
| A9 | LT BLU | 553 | Tow/Haul Switch Signal | A9 | LT BLU | 553 | Tow/Haul Switch Signal |
| A10 | - | - | Not Used | A10 | - | - | Not Used |
| A11 | BLK | 28 | Horn Relay Control | A11 | BLK | 28 | Horn Relay Control |
| A12 | GRY | 397 | Cruise Control ON Switch Signal | A12 | GRY | 397 | Cruise Control ON Switch Signal |
| A13 | PNK | 41 | Ignition 3 Voltage | A13 | BRN | 41 | Ignition 3 Voltage |
| A14 | DK BLU | 84 | Cruise Control SET/COAST Switch Signal | A14 | DK BLU | 84 | Cruise Control SET/COAST Switch Signal |
| A15 | GRY/BLK | 87 | Cruise Control Switch Signal | A15 | GRY/BLK | 87 | Cruise Control Switch Signal |
| A16 | BLK | 750 | Ground | A16 | BLK | 750 | Ground |
| A17 | DK GRN/WHT | 1135 | A/T Shift Lock Control Solenoid Supply Voltage | A17 | DK GRN/ WHT |
1135 | A/T Shift Lock Control Solenoid Supply Voltage |
| B1 | RED/WHT | 812 | 12-Volt Reference | B1 | RED/WHT | 812 | 12-Volt Reference |
| B2 | BLK | 150 | Ground | B2 | BLK | 750 | Ground |
| B3 | DK GRN | 80 | Key Ignition Switch Signal | B3 | LT GRN | 80 | Key Ignition Switch Signal |
| B4 | BRN | 159 | Ground | B4 | BLK | 750 | Ground |
| B5 | TAN/WHT | 33 | Park Brake Switch Signal | B5 | LT BLU | 1134 | Park Brake Switch Signal |
| B6 | - | - | Not Used | B6 | - | - | Not Used |
| C1 | WHT | 1390 | OFF/RUN/CRANK Voltage | C1 | WHT | 1390 | OFF/RUN/CRANK Voltage |
| C2 | BLK/GRY | 150 | Ground | C2 | BLK | 750 | Ground |
| C3 | - | - | Not Used | C3 | - | - | Not Used |
| C4 | ORN/BLK | 1057 | Low Reference | C4 | ORN/BLK | 1057 | Low Reference |
| C5 | PNK | 3 | Ignition 1 Voltage | C5 | PNK | 3 | Ignition 1 Voltage |
| C6 | ORN | 300 | Ignition 3 Voltage | C6 | ORN | 300 | Ignition 3 Voltage |
| D1 | YEL | 5 | CRANK Voltage | D1 | YEL | 5 | CRANK Voltage |
| D2 | RED | 1342 | Battery Positive Voltage | D2 | RED | 342 | Battery Positive Voltage |
| D3 | YEL | 1836 | Security System Sensor Signal | D3 | YEL | 1836 | Security System Sensor Signal |
| D4 | - | - | Not Used | D4 | - | - | Not Used |
| D5 | RED/WHT | 1442 | Battery Positive Voltage | D5 | RED | 242 | Battery Positive Voltage |
| D6 | BRN | 4 | ACCESSORY Voltage | D6 | BRN | 4 | ACCESSORY Voltage |
| E1 | LT GRN | 1696 | Hazard Indicator Supply Voltage | E1 | LT GRN | 62 | Hazard Indicator Supply Voltage |
| E2 | WHT | 20 | Stop Lamp Supply Voltage | E2 | - | - | Not Used |
| E3 | PPL | 92 | Windshield Wiper Motor - High Speed | E3 | PPL | 92 | Windshield Wiper Motor - High Speed |
| E4 | YEL | 143 | Accessory Voltage | E4 | YEL | 143 | Accessory Voltage |
| E5 | GRY | 96 | Windshield Wiper Switch - Pulse Delay Signal | E5 | BRN | 96 | Windshield Wiper Switch - Pulse Delay Signal |
| E6 | DK GRN | 19 | Right Rear Stop/Turn Lamp Supply Voltage | E6 | LT BLU | 915 | Park/Turn Signal Lamp Supply Voltage - LH (w/VE1) |
| DK GRN | 19 | Right Rear Stop/Turn Lamp Supply Voltage (w/o VE1) | |||||
| E7 | YEL | 18 | Left Rear Stop/Turn Lamp Supply Voltage | E7 | DK BLU | 914 | Park/Turn Signal Lamp Supply Voltage - RH (w/VE1) |
| YEL | 18 | Left Rear Stop/Turn Lamp Supply Voltage (w/o VE1) | |||||
| E8 | ORN | 140 | Battery Positive Voltage | E8 | ORN | 140 | Battery Positive Voltage |
| E9 | PPL | 1697 | Turn Signal Flasher Signal | E9 | PPL | 16 | Turn Signal Flasher Signal |
| E10 | ORN | 1840 | Battery Positive Voltage | E10 | ORN | 1840 | Battery Positive Voltage |
| E11 | LT GRN | 11 | Headlamp High Beam Signal | E11 | PNK | 1200 | Headlamp High Beam Signal |
| E12 | TAN | 12 | Headlamp Signal - Low Beam | E12 | DK BLU | 1201 | Headlamp Signal - Low Beam |
| E13 | LT BLU | 10 | Headlamp Switch Signal | E13 | BLK | 750 | Ground (w/VE1) |
| PPL | 544 | Headlamp Switch Signal (w/o VE1) | |||||
