Inline Harness Connectors: C109

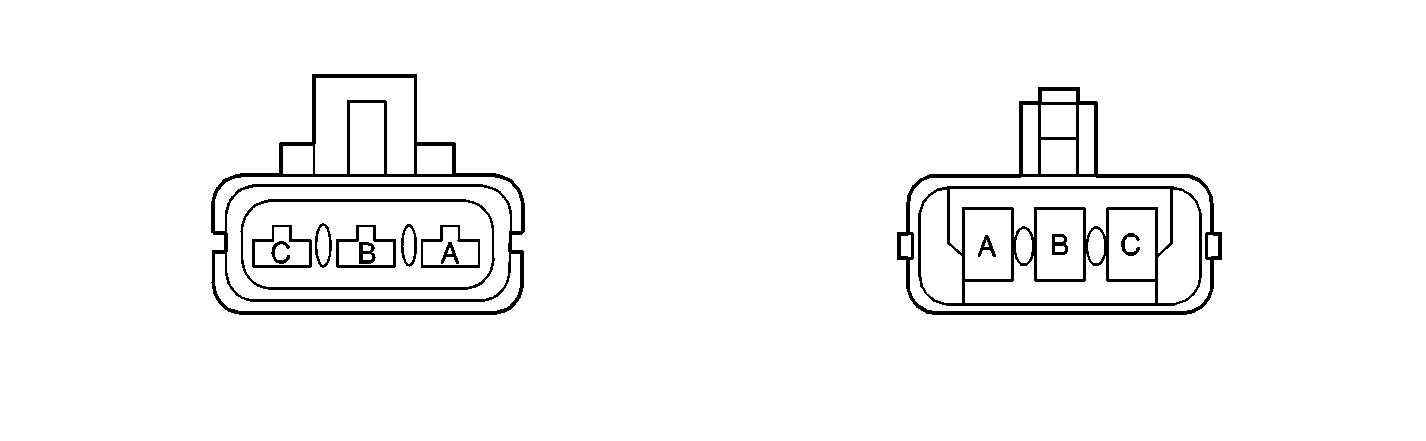

C109 (I/P to Forward Lamp) Connector End View

GM95864Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12040977
  • 3-Way F Metri-Pack 280 Series (BLK)
 Connector Part Information
  • 15300003
  • 3-Way M Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A DK BLU 914 Park, Turn Signal - LH (w/VE1) A DK BLU 914 Park, Turn Signal - LH (w/VE1)
B ORN 52 Blower Motor Control - High B ORN 52 Blower Motor Control - High
C LT BLU 915 Park, Turn Signal - RH (w/VE1) C LT BLU 915 Park, Turn Signal - RH (w/VE1)
